CRUST1 Moho Model from Uieda et al. 2017.#
Here we attempt to reproduce the CRUST1 Moho inversion for South America from Uieda et al. 2017: Fast nonlinear gravity inversion in spherical coordinates with application to the South American Moho. This is a semi-synthetic model, where true Moho topography data from CRUST1 is used to forward model the observed gravity. This synthetic gravity data is then used to invert for Moho topography. We start by following their approach, but using Invert4Geom. We follow this by using our own approach of incorporating a starting model and adhering to points of known Moho elevation.
[1]:
from __future__ import annotations
%load_ext autoreload
%autoreload 2
import logging
import pathlib
import pickle
import numpy as np
import pandas as pd
import pooch
import pyproj
import verde as vd
import xarray as xr
from polartoolkit import fetch, maps
from polartoolkit import utils as polar_utils
from invert4geom import (
cross_validation,
inversion,
optimization,
plotting,
regional,
synthetic,
utils,
)
# set up logging to see what's going on
logging.basicConfig(level=logging.INFO)
Get datasets#
Here we use Pooch to download the CRUST1 global Moho topography dataset, and the locations of seismic measurements of Moho depth for South America. We perform some preprocessing on these datasets, subsetting them to match the geographic extent used in the paper. We convert the data to projected coordinates, instead of the geographic coordinates used in the paper.
[2]:
url = "https://igppweb.ucsd.edu/~gabi/crust1/depthtomoho.xyz.zip"
known_hash = "36089a537ed45795557999003d0eada9935f1cc589a6ddb486a7eac716dc7ff2"
path = pooch.retrieve(
url=url,
path=pooch.os_cache("invert4geom"),
known_hash=known_hash,
progressbar=True,
processor=pooch.Unzip(),
)[0]
df = pd.read_csv(path, header=None, sep=r"\s+", names=["lon", "lat", "upward"])
# turn elevation to meters
df["upward"] = df.upward * 1000
# turn into grid
true_moho = df.set_index(["lat", "lon"]).to_xarray().rio.write_crs("EPSG:4326").upward
# subset to south america with buffer
region_ll = (-92, -28, -62, 22)
true_moho = true_moho.sel(
lon=slice(region_ll[0], region_ll[1]),
lat=slice(region_ll[2], region_ll[3]),
).drop_vars("spatial_ref")
shape = (80, 60) # n, e
# We're choosing the latitude of true scale as the mean latitude of our dataset
projection = pyproj.Proj(proj="merc", lat_ts=df.lat.mean())
region_ll = (-90, -30, -60, 20)
region = vd.project_region(region_ll, projection)
true_moho = vd.project_grid(
true_moho,
projection,
# spacing=10e3,
# adjust="region",
# spacing=spacing,
# region=region,
)
coords = vd.grid_coordinates(
region=region,
shape=shape,
# spacing=spacing,
# adjust="region",
)
grid = vd.make_xarray_grid(coords, np.ones_like(coords[0]), data_names="z").z
grid = grid.rio.set_spatial_dims("easting", "northing").rio.write_crs("epsg:4326")
true_moho = (
true_moho.rio.set_spatial_dims("easting", "northing")
.rio.write_crs("epsg:4326")
.rio.write_nodata(np.nan)
)
true_moho = (
true_moho.rio.reproject_match(grid)
.rename({"x": "easting", "y": "northing"})
.drop_vars("spatial_ref")
)
# recreate to drop metadata
df = true_moho.to_dataframe().reset_index() # .astype({"easting":int,"northing":int})
true_moho = df.set_index(["northing", "easting"]).to_xarray().upward
width = region[1] - region[0]
height = region[3] - region[2]
x_mid = round(np.mean(region[:2]), -3)
y_mid = round(np.mean(region[2:]), -3)
spacing, _, _, _, _ = polar_utils.get_grid_info(true_moho)
spacing = round(spacing, -3)
region = (
x_mid - (spacing * (shape[1] / 2)),
x_mid + (spacing * (shape[1] / 2)),
y_mid - (spacing * (shape[0] / 2)),
y_mid + (spacing * (shape[0] / 2)),
)
true_moho = fetch.resample_grid(true_moho, spacing=spacing, region=region).rename(
{"x": "easting", "y": "northing"}
)
true_moho
WARNING:polartoolkit:Warning, requested spacing (134000.0) is smaller than the original (134444.58478).
grdsample [WARNING]: Output sampling interval in x exceeds input interval and may lead to aliasing.
[2]:
<xarray.DataArray 'z' (northing: 79, easting: 50)> Size: 16kB
array([[-11996.88 , -11993.936, -12004.855, ..., -9651.419, -9768.617,
-9836.995],
[-11996.603, -12003.306, -12016.786, ..., -10058.326, -10258.755,
-10044.96 ],
[-12034.696, -12027.714, -12032.665, ..., -10435.053, -10562.211,
-10229.877],
...,
[-26719.041, -24199.436, -22419.082, ..., -11974.452, -11935.457,
-11905.756],
[-25076.738, -22405.977, -19385.184, ..., -11980.165, -11887.041,
-11716.937],
[-25066.1 , -22412.135, -17921.285, ..., -12015.668, -11958.471,
-11759.952]], dtype=float32)
Coordinates:
* northing (northing) float64 632B -8.308e+06 -8.174e+06 ... 2.144e+06
* easting (easting) float64 400B -9.916e+06 -9.782e+06 ... -3.35e+06
Attributes:
Conventions: CF-1.7
title:
history: gmt grdsample @GMTAPI@-S-I-G-M-G-N-000000 -G@GMTAPI@-S-O-G...
description:
actual_range: [-68726.5 -8954.62792969]
long_name: z[3]:
spacing, region, _, _, _ = polar_utils.get_grid_info(true_moho)
spacing, region
[3]:
(134000.0, (-9916000.0, -3350000.0, -8308000.0, 2144000.0))
[4]:
url = "https://raw.githubusercontent.com/pinga-lab/paper-moho-inversion-tesseroids/master/data/crust1-point-depths.txt"
known_hash = "788426dbb100caf86b4973acf8e2b1964a2cfe517cb17c3ea9cd30ee99c9c6fb"
path = pooch.retrieve(
url=url,
path=pooch.os_cache("invert4geom"),
known_hash=known_hash,
progressbar=True,
)
df = pd.read_csv(path, skiprows=4, sep=" ", names=["lat", "lon", "upward"])
df = df.drop(columns="upward")
projection = pyproj.Proj(proj="merc", lat_ts=df.lat.mean())
proj_coords = projection(df.lon.values, df.lat.values)
df["easting"] = proj_coords[0]
df["northing"] = proj_coords[1]
df["inside"] = vd.inside(
(df.easting, df.northing),
region=region,
)
df = df[df.inside].drop(columns="inside")
df
[4]:
| lat | lon | easting | northing | |
|---|---|---|---|---|
| 0 | -9.0387 | -37.0454 | -3.969459e+06 | -9.660928e+05 |
| 1 | -19.7393 | -50.2331 | -5.382537e+06 | -2.144332e+06 |
| 2 | -18.5471 | -52.0251 | -5.574552e+06 | -2.009914e+06 |
| 3 | -18.5081 | -52.0740 | -5.579791e+06 | -2.005533e+06 |
| 4 | -20.4760 | -55.6990 | -5.968215e+06 | -2.227898e+06 |
| ... | ... | ... | ... | ... |
| 932 | -39.0000 | -70.8000 | -7.586305e+06 | -4.518984e+06 |
| 933 | -39.0000 | -70.5000 | -7.554159e+06 | -4.518984e+06 |
| 934 | -39.0000 | -70.0000 | -7.500584e+06 | -4.518984e+06 |
| 935 | -39.0000 | -69.6000 | -7.457723e+06 | -4.518984e+06 |
| 936 | -39.0000 | -68.7000 | -7.361287e+06 | -4.518984e+06 |
937 rows à 4 columns
[5]:
# sample grid values at points
constraint_points = utils.sample_grids(
df,
true_moho,
"upward",
)
constraint_points.describe()
[5]:
| lat | lon | easting | northing | upward | |
|---|---|---|---|---|---|
| count | 937.000000 | 937.000000 | 9.370000e+02 | 9.370000e+02 | 937.000000 |
| mean | -15.779085 | -60.878246 | -6.523177e+06 | -1.747164e+06 | -37889.681529 |
| std | 13.436299 | 12.894853 | 1.381699e+06 | 1.507106e+06 | 12374.364473 |
| min | -54.140000 | -86.300000 | -9.247148e+06 | -6.893881e+06 | -66745.216910 |
| 25% | -25.700000 | -70.346300 | -7.537690e+06 | -2.833232e+06 | -44403.793162 |
| 50% | -17.360000 | -66.780000 | -7.155557e+06 | -1.877012e+06 | -39371.758409 |
| 75% | -7.639000 | -47.794900 | -5.121281e+06 | -8.155003e+05 | -30394.881848 |
| max | 13.949700 | -35.104000 | -3.761436e+06 | 1.499808e+06 | -11424.326640 |
[6]:

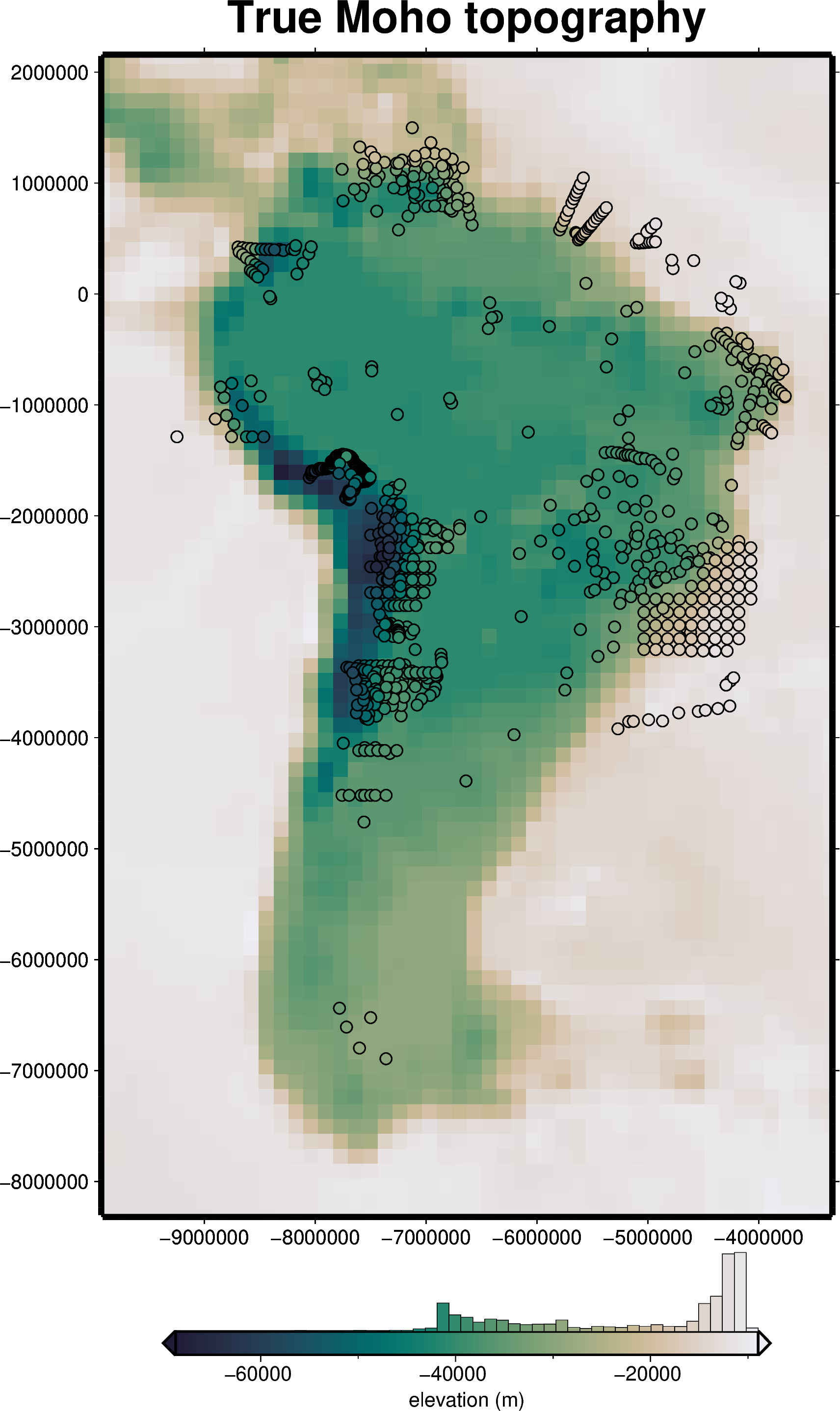

fig = maps.plot_grd(
true_moho,
fig_height=20,
title="True Moho topography",
hist=True,
cmap="rain",
reverse_cpt=True,
cbar_yoffset=2,
cbar_label="elevation (m)",
# robust=True,
frame=["nSWe", "xaf10000", "yaf10000"],
)
# plot seismic points
fig.plot(
x=constraint_points.easting,
y=constraint_points.northing,
style="c.2c",
fill=constraint_points.upward,
cmap=True,
pen=".6p,black",
)
fig.show()
Observed gravity data#
We can now forward-model the effects of this topography and add some noise to make a synthetic observed gravity dataset.
[7]:
# Define the reference level (height in meters).
# This is the Moho depth of the Normal Earth
true_zref = -30e3
# The density contrast is negative if the relief is below the reference
true_density_contrast = 350
density_grid = xr.where(
true_moho >= true_zref, true_density_contrast, -true_density_contrast
)

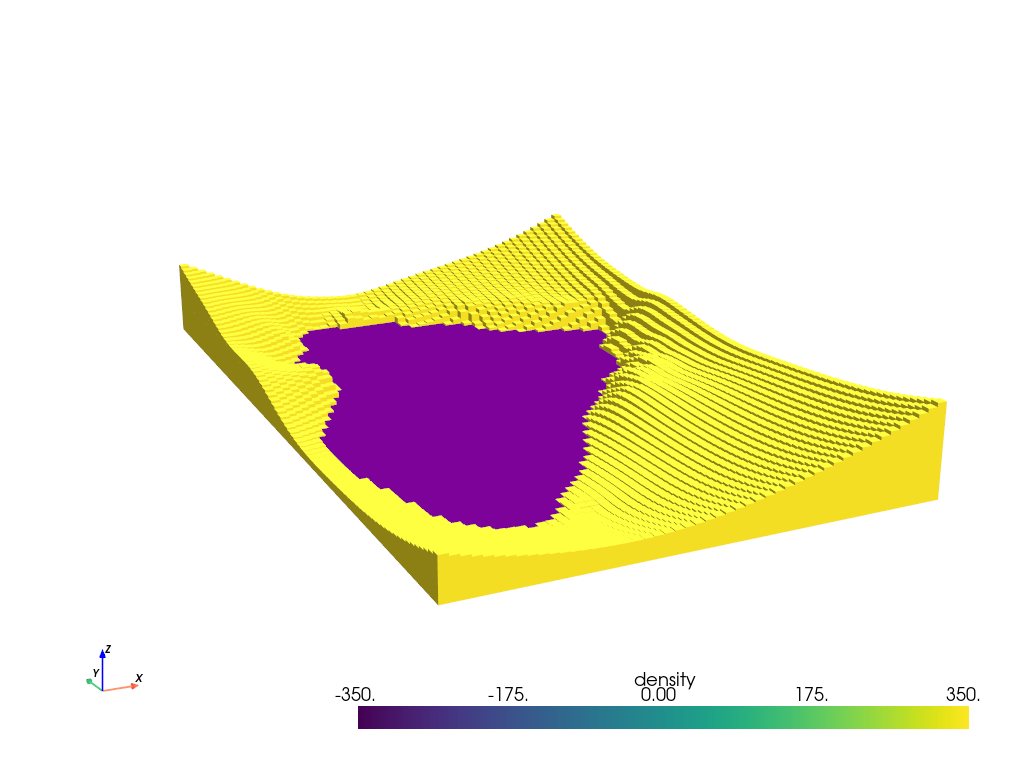

# make prism layer
prisms = utils.grids_to_prisms(true_moho, true_zref, density=density_grid)

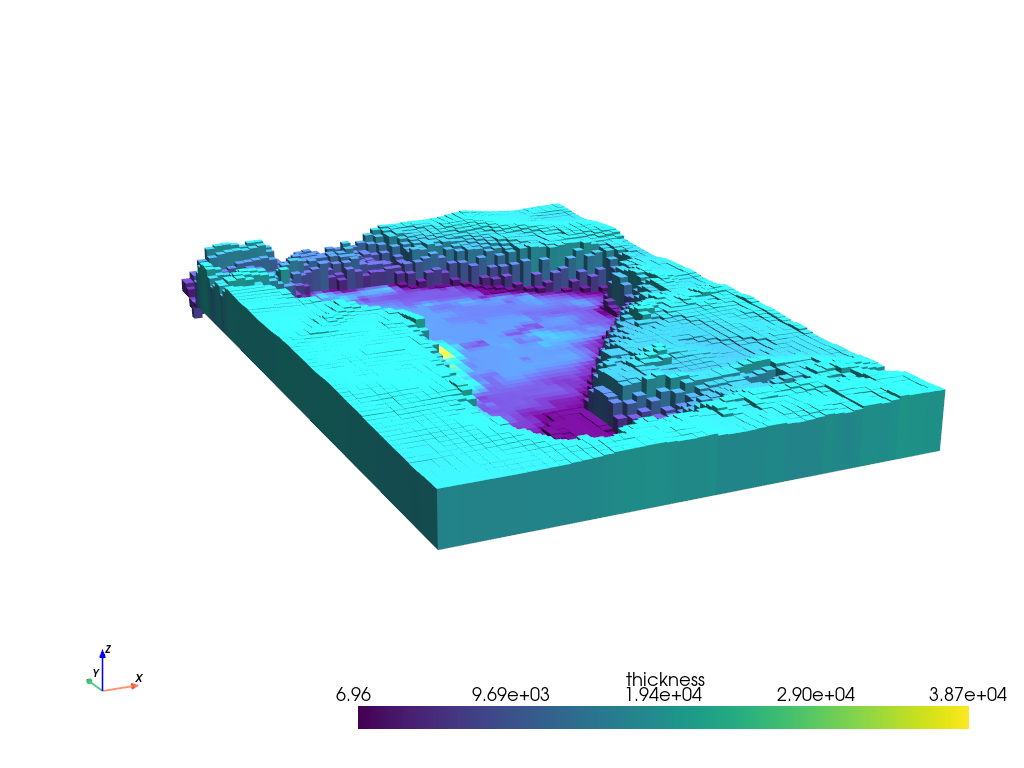

plotting.show_prism_layers(
prisms,
color_by="thickness",
# color_by="density",
log_scale=False,
zscale=40,
backend="static",
)
MESA: error: ZINK: failed to choose pdev
glx: failed to create drisw screen
[8]:
# make pandas dataframe of locations to calculate gravity
# this represents the station locations of a gravity survey
# create lists of coordinates
coords = vd.grid_coordinates(
region=region,
spacing=spacing,
pixel_register=False,
extra_coords=50e3, # survey elevation
)
# grid the coordinates
observations = vd.make_xarray_grid(
(coords[0], coords[1]),
data=coords[2],
data_names="upward",
dims=("northing", "easting"),
).upward
grav_df = vd.grid_to_table(observations)
# resample to half spacing
grav_df_resampled = cross_validation.resample_with_test_points(spacing, grav_df, region)
grav_df_resampled["gravity_anomaly"] = prisms.prism_layer.gravity(
coordinates=(
grav_df_resampled.easting,
grav_df_resampled.northing,
grav_df_resampled.upward,
),
field="g_z",
progressbar=True,
)
# contaminate gravity with random noise
grav_df_resampled["gravity_anomaly"], stddev = synthetic.contaminate(
grav_df_resampled.gravity_anomaly,
stddev=5,
percent=False,
seed=0,
)
grav_df_resampled.describe()
INFO:invert4geom:Standard deviation used for noise: [5.0]
[8]:
| northing | easting | upward | gravity_anomaly | |
|---|---|---|---|---|
| count | 1.554300e+04 | 1.554300e+04 | 15543.0 | 15543.000000 |
| mean | -3.082000e+06 | -6.633000e+06 | 50000.0 | 101.243413 |
| std | 3.036610e+06 | 1.914746e+06 | 0.0 | 159.812794 |
| min | -8.308000e+06 | -9.916000e+06 | 50000.0 | -370.518832 |
| 25% | -5.695000e+06 | -8.308000e+06 | 50000.0 | -52.404554 |
| 50% | -3.082000e+06 | -6.633000e+06 | 50000.0 | 186.385180 |
| 75% | -4.690000e+05 | -4.958000e+06 | 50000.0 | 238.595664 |
| max | 2.144000e+06 | -3.350000e+06 | 50000.0 | 283.507847 |

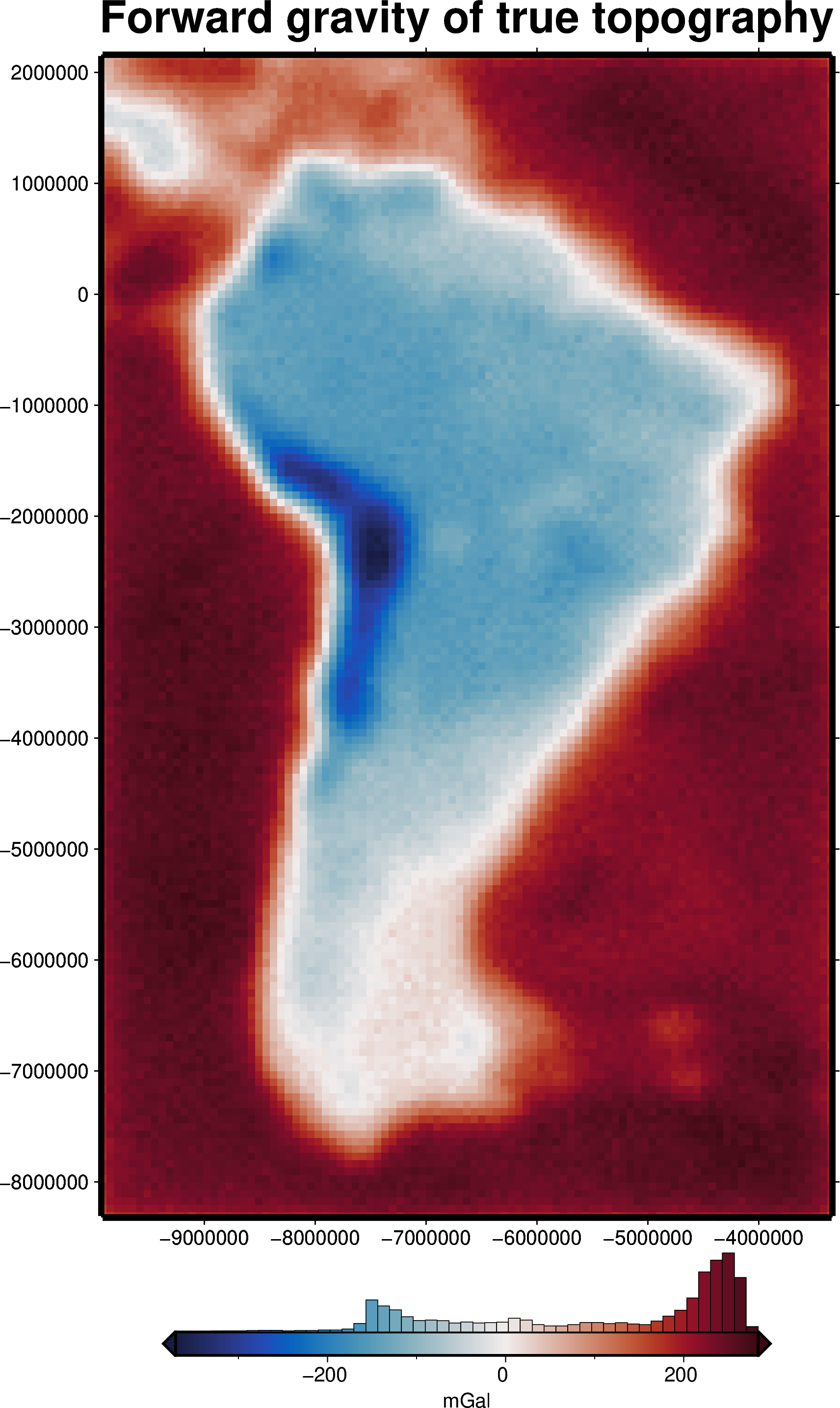

[9]:
grav_grid = grav_df_resampled.set_index(["northing", "easting"]).to_xarray()
fig = maps.plot_grd(
grav_grid.gravity_anomaly,
fig_height=20,
title="Forward gravity of true topography",
hist=True,
cbar_yoffset=2,
cmap="balance+h0",
cbar_label="mGal",
# robust=True,
frame=["nSWe", "xaf10000", "yaf10000"],
)
fig.show()

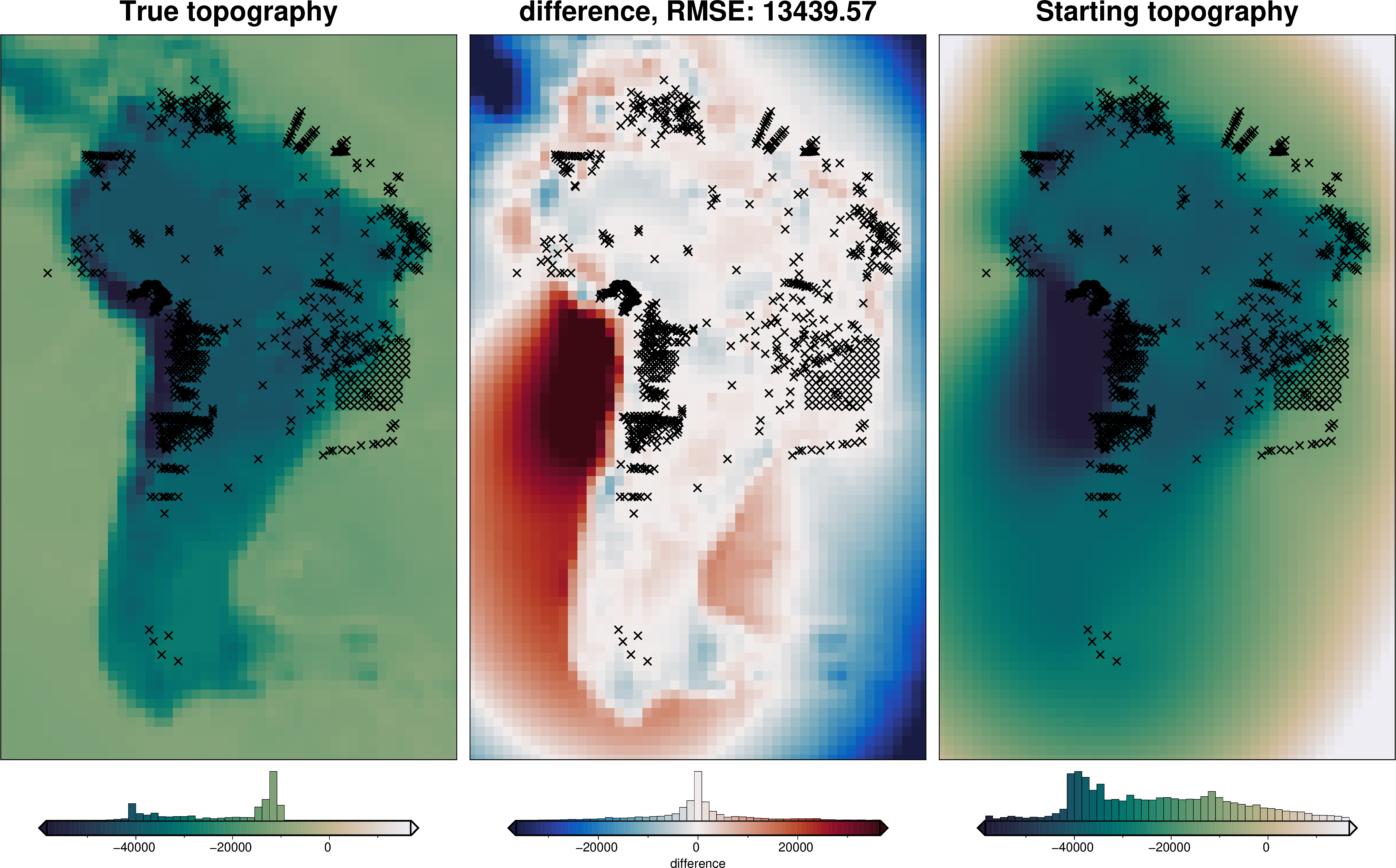

Starting model#
Following the paperâs approach, we create a starting model which uses the true values of the density contrast and reference level for the Moho. This is used during the damping parameter cross-validation.
[10]:
true_zref, true_density_contrast
[10]:
(-30000.0, 350)
[11]:
# create flat topography grid with a constant height equal the mean of the starting
# topography (zref)
zref = true_zref
density_contrast = true_density_contrast
starting_topography = xr.full_like(true_moho, zref)
# prisms above zref have positive density contrast and prisms below zref have negative
# density contrast
density_grid = xr.where(
starting_topography >= zref, density_contrast, -density_contrast
)
# create layer of prisms
starting_prisms = utils.grids_to_prisms(
starting_topography,
zref,
density=density_grid,
)
# since our starting model is flat, the starting gravity is 0
grav_df_resampled["starting_gravity"] = 0
# in many cases, we want to remove a regional signal from the misfit to isolate the
# residual signal. In this simple case, we assume there is no regional misfit and set
# it to 0
grav_df_resampled = regional.regional_separation(
method="constant",
constant=0,
grav_df=grav_df_resampled,
)
grav_df_resampled
[11]:
| northing | easting | test | upward | gravity_anomaly | starting_gravity | misfit | reg | res | |
|---|---|---|---|---|---|---|---|---|---|
| 0 | -8308000.0 | -9916000.0 | False | 50000.0 | 149.679489 | 0 | 149.679489 | 0 | 149.679489 |
| 1 | -8308000.0 | -9849000.0 | True | 50000.0 | 168.821051 | 0 | 168.821051 | 0 | 168.821051 |
| 2 | -8308000.0 | -9782000.0 | False | 50000.0 | 181.023137 | 0 | 181.023137 | 0 | 181.023137 |
| 3 | -8308000.0 | -9715000.0 | True | 50000.0 | 182.558062 | 0 | 182.558062 | 0 | 182.558062 |
| 4 | -8308000.0 | -9648000.0 | False | 50000.0 | 181.831163 | 0 | 181.831163 | 0 | 181.831163 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 15538 | 2144000.0 | -3618000.0 | False | 50000.0 | 183.238536 | 0 | 183.238536 | 0 | 183.238536 |
| 15539 | 2144000.0 | -3551000.0 | True | 50000.0 | 180.454881 | 0 | 180.454881 | 0 | 180.454881 |
| 15540 | 2144000.0 | -3484000.0 | False | 50000.0 | 172.672940 | 0 | 172.672940 | 0 | 172.672940 |
| 15541 | 2144000.0 | -3417000.0 | True | 50000.0 | 167.308086 | 0 | 167.308086 | 0 | 167.308086 |
| 15542 | 2144000.0 | -3350000.0 | False | 50000.0 | 147.883445 | 0 | 147.883445 | 0 | 147.883445 |
15543 rows à 9 columns
Damping parameter cross validation#
Get individual score#
We will perform an inversion with a single damping value and calculate a score for it. The grid shows how to score is calculated, as the RMS difference between the predicted and observed gravity data.
[12]:
# set the inversions stopping criteria
kwargs = {
"max_iterations": 300,
"l2_norm_tolerance": 2.2, # L2-norm of the misfit
"delta_l2_norm_tolerance": 1.008, # ratio of the L2-norm between iterations,
}

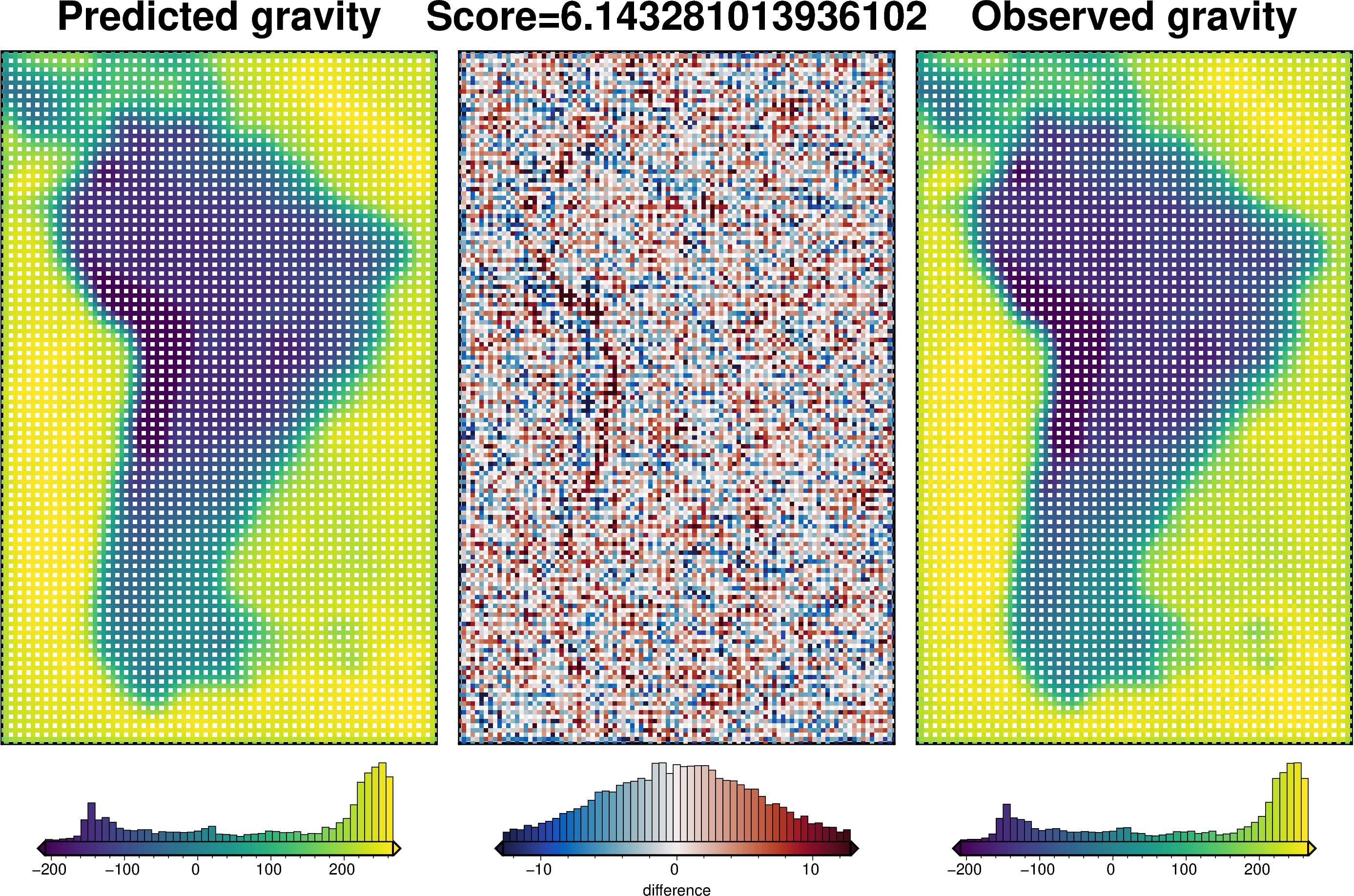

# run inversion, calculate the score, and plot the predicted and observed gravity for
# the testing dataset
score, results = cross_validation.grav_cv_score(
training_data=grav_df_resampled[grav_df_resampled.test == False],
testing_data=grav_df_resampled[grav_df_resampled.test == True],
prism_layer=starting_prisms,
solver_damping=0.01,
progressbar=True,
plot=True,
**kwargs,
)
score
[12]:
np.float64(6.143281013936102)
Cross Validation Optimization#
[13]:
study, inversion_results = optimization.optimize_inversion_damping(
training_df=grav_df_resampled[grav_df_resampled.test == False],
testing_df=grav_df_resampled[grav_df_resampled.test == True],
prism_layer=starting_prisms,
damping_limits=(0.001, 1),
n_trials=8,
# grid_search=True,
# plot_grids=True,
fname="../tmp/uieda_CRUST1_damping_CV",
**kwargs,
)
INFO:invert4geom:using 4 startup trials
INFO:invert4geom:Trial with best score:
INFO:invert4geom: trial number: 6
INFO:invert4geom: parameter: {'damping': 0.005495105702110278}
INFO:invert4geom: scores: [5.975696888892725]
[14]:
# to re-load the study from the saved pickle file
with pathlib.Path("../tmp/uieda_CRUST1_damping_CV_study.pickle").open("rb") as f:
study = pickle.load(f)
# to re-load the inversion results from the saved pickle file
with pathlib.Path("../tmp/uieda_CRUST1_damping_CV_results.pickle").open("rb") as f:
inversion_results = pickle.load(f)
# collect the results
topo_results, grav_results, parameters, elapsed_time = inversion_results
[15]:
best_damping = study.best_params.get("damping")
best_damping
[15]:
0.005495105702110278

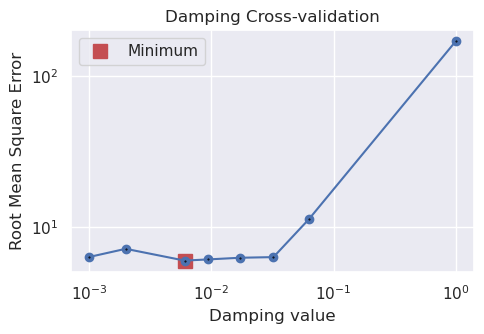

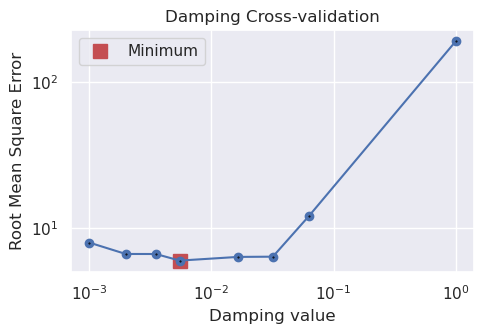

The above plot shows the results of the damping parameter cross validation, and is equivalent to Figure 7a in the paper. The main difference is that we use a optimization approach instead of a grid search. This allows us to find the best value in fewer trials, as the parameter search space is quickly narrowed down. We performed 8 trials, compared to the 16 trials used in the paper.
Plot results#
[16]:

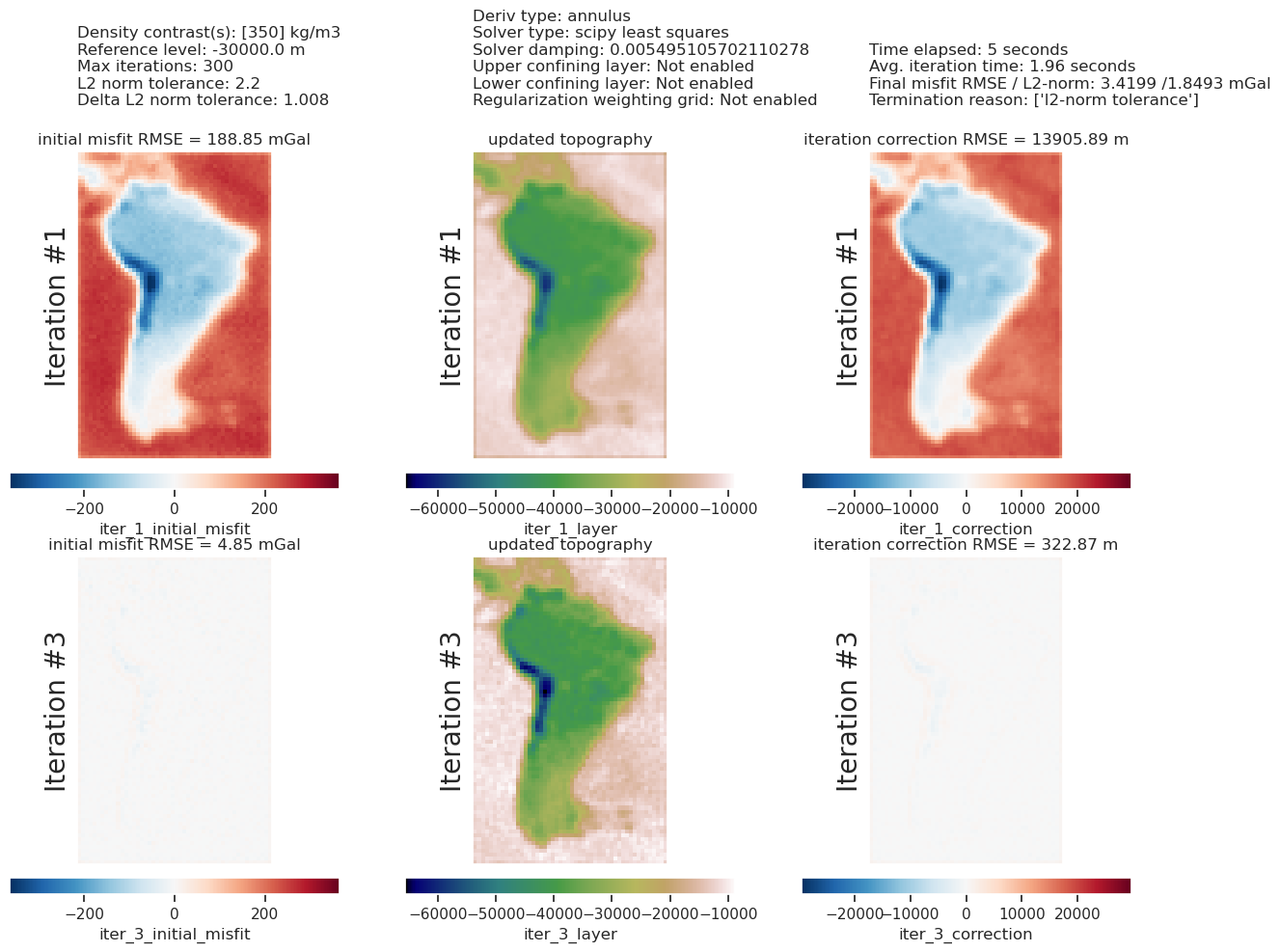

plotting.plot_inversion_results(
grav_results,
topo_results,
parameters,
region,
iters_to_plot=2,
plot_iter_results=True,
plot_topo_results=False,
plot_grav_results=False,
)
final_topography = topo_results.set_index(["northing", "easting"]).to_xarray().topo

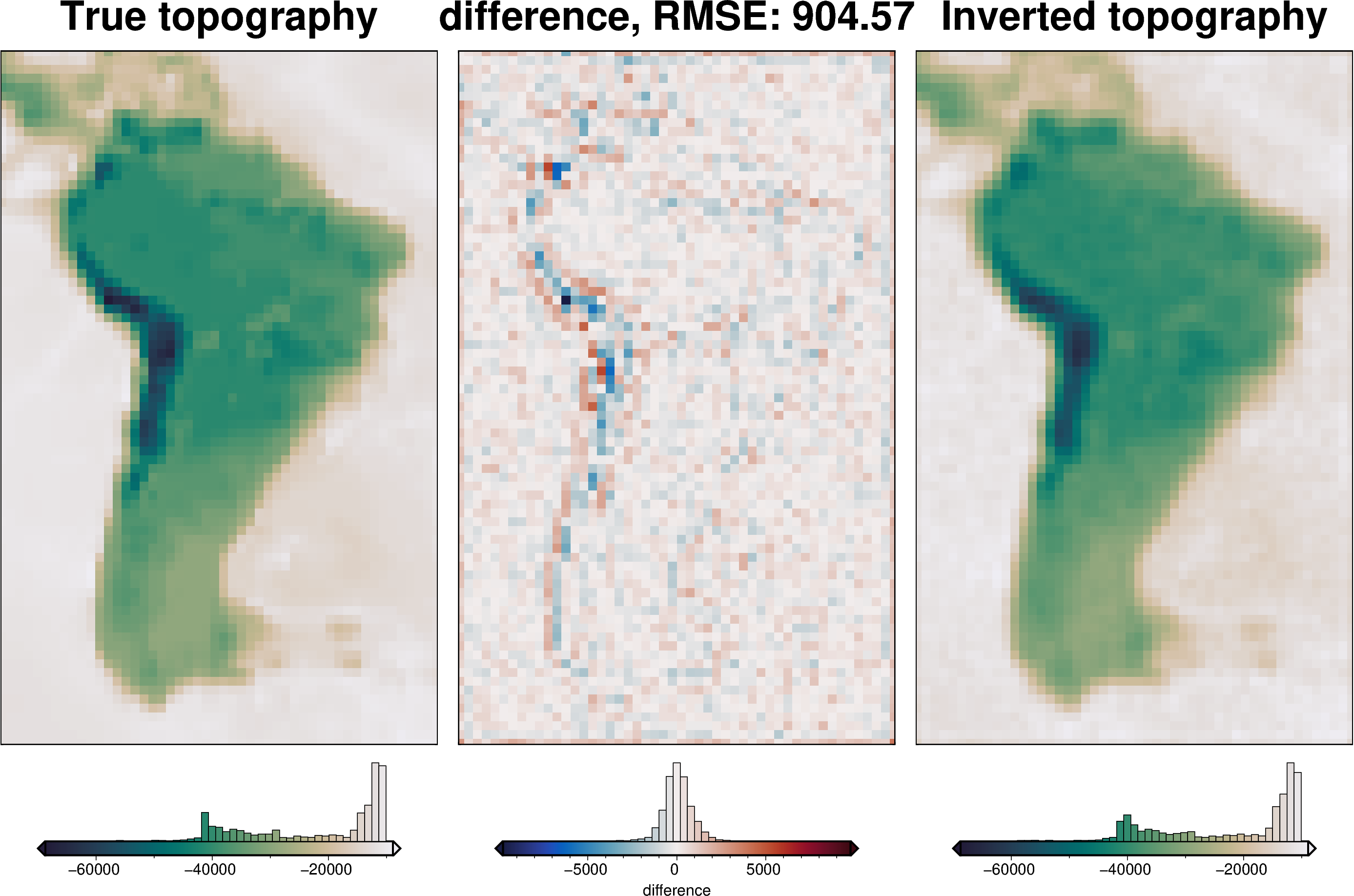

_ = polar_utils.grd_compare(
true_moho,
final_topography,
plot=True,
region=region,
grid1_name="True topography",
grid2_name="Inverted topography",
robust=True,
hist=True,
inset=False,
verbose="q",
title="difference",
grounding_line=False,
reverse_cpt=True,
cmap="rain",
)
[17]:
# sample the inverted topography at the constraint points
constraint_points = utils.sample_grids(
constraint_points,
final_topography,
"inverted_topography",
)
rmse = utils.rmse(constraint_points.upward - constraint_points.inverted_topography)
print(f"RMSE: {rmse:.2f} m")
RMSE: 1040.22 m
Density / Reference level cross validation#
Now that we have a optimal damping value, we can perform a cross-validation to find the optimal values for density contrast and reference level. For these, we pick a range of possible values, and perform a hyperparameter optimization to find the best set of values.
[18]:
# drop testing data
grav_df = grav_df_resampled[grav_df_resampled.test == False]
grav_df = grav_df.drop(columns=["test"])
grav_df
[18]:
| northing | easting | upward | gravity_anomaly | starting_gravity | misfit | reg | res | |
|---|---|---|---|---|---|---|---|---|
| 0 | -8308000.0 | -9916000.0 | 50000.0 | 149.679489 | 0 | 149.679489 | 0 | 149.679489 |
| 2 | -8308000.0 | -9782000.0 | 50000.0 | 181.023137 | 0 | 181.023137 | 0 | 181.023137 |
| 4 | -8308000.0 | -9648000.0 | 50000.0 | 181.831163 | 0 | 181.831163 | 0 | 181.831163 |
| 6 | -8308000.0 | -9514000.0 | 50000.0 | 193.791533 | 0 | 193.791533 | 0 | 193.791533 |
| 8 | -8308000.0 | -9380000.0 | 50000.0 | 185.269207 | 0 | 185.269207 | 0 | 185.269207 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 15534 | 2144000.0 | -3886000.0 | 50000.0 | 190.038049 | 0 | 190.038049 | 0 | 190.038049 |
| 15536 | 2144000.0 | -3752000.0 | 50000.0 | 175.462622 | 0 | 175.462622 | 0 | 175.462622 |
| 15538 | 2144000.0 | -3618000.0 | 50000.0 | 183.238536 | 0 | 183.238536 | 0 | 183.238536 |
| 15540 | 2144000.0 | -3484000.0 | 50000.0 | 172.672940 | 0 | 172.672940 | 0 | 172.672940 |
| 15542 | 2144000.0 | -3350000.0 | 50000.0 | 147.883445 | 0 | 147.883445 | 0 | 147.883445 |
3950 rows à 8 columns
[19]:
# run the cross validation for the zref and density
study, inversion_results = optimization.optimize_inversion_zref_density_contrast(
grav_df=grav_df,
solver_damping=best_damping,
constraints_df=constraint_points,
density_contrast_limits=(200, 500),
zref_limits=(-35e3, -20e3),
n_trials=20,
starting_topography_kwargs=dict(
method="flat",
region=region,
spacing=spacing,
),
regional_grav_kwargs={
"method": "constant",
"constant": 0,
},
# grid_search=True,
fname="../tmp/uieda_CRUST1_zref_density_cv",
# score_as_median=True,
**kwargs,
)
INFO:invert4geom:using 8 startup trials
INFO:invert4geom:starting_topography not provided, creating a starting topography model with the supplied starting_topography_kwargs
INFO:invert4geom:using zref to create a flat starting topography model
INFO:invert4geom:starting_topography not provided, creating a starting topography model with the supplied starting_topography_kwargs
INFO:invert4geom:using zref to create a flat starting topography model
INFO:invert4geom:Trial with best score:
INFO:invert4geom: trial number: 15
INFO:invert4geom: parameter: {'zref': -30007.07804892218, 'density_contrast': 352}
INFO:invert4geom: scores: [1317.743672232401]
WARNING:invert4geom:'starting_gravity' already a column of `grav_df`, but is being overwritten since calculate_starting_gravity is True
WARNING:invert4geom:'reg' already a column of `grav_df`, but is being overwritten since calculate_regional_misfit is True
[20]:
# to re-load the study from the saved pickle file
with pathlib.Path("../tmp/uieda_CRUST1_zref_density_cv_study.pickle").open("rb") as f:
study = pickle.load(f)
# to re-load the inversion results from the saved pickle file
with pathlib.Path("../tmp/uieda_CRUST1_zref_density_cv_results.pickle").open("rb") as f:
inversion_results = pickle.load(f)
# collect the results
topo_results, grav_results, parameters, elapsed_time = inversion_results
[21]:
best_zref = study.best_params.get("zref")
best_density_contrast = study.best_params.get("density_contrast")
best_zref, true_zref
[21]:
(-30007.07804892218, -30000.0)
[22]:
best_density_contrast, true_density_contrast
[22]:
(352, 350)

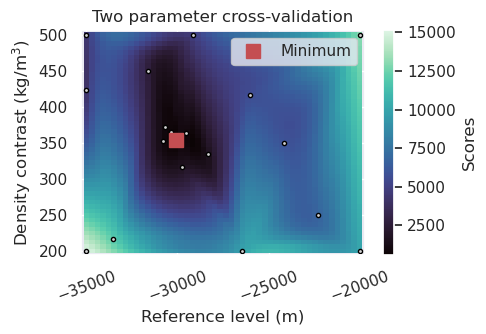

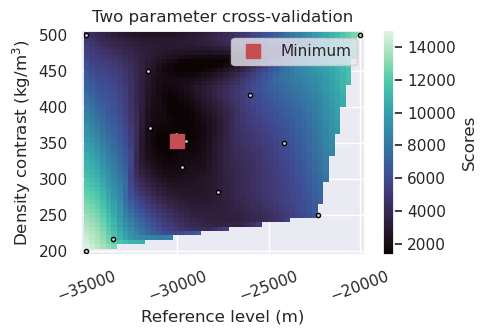

The above plot shows the results of the cross validation and is equivalent to Figure 7b in the paper. The optimal values they report are zref = 30 km and density contrast = 350 kg/m-3, which are the same as the values we find. The main difference is that they used a grid-search approach, testing evenly-spaced values between -35 and -20 km, and between 500 and 200 kg/m-3. We instead used an optimization approach, where the parameters space is smartly searched based on the scores of the past trials. As you can see, this allows us to find the optimal values in far fewer trials. Here we used 20 trials, compared to the 49 trials used in the paper.
We also support the grid-search approach, which can be enabled with grid_search=True in the above function.
Plot results#
The below plots show the inversion results used the optimal damping, density contrast, and reference level values.
[23]:

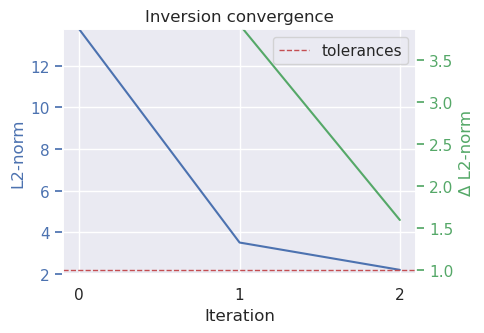

plotting.plot_convergence(
grav_results,
parameters,
)
[24]:

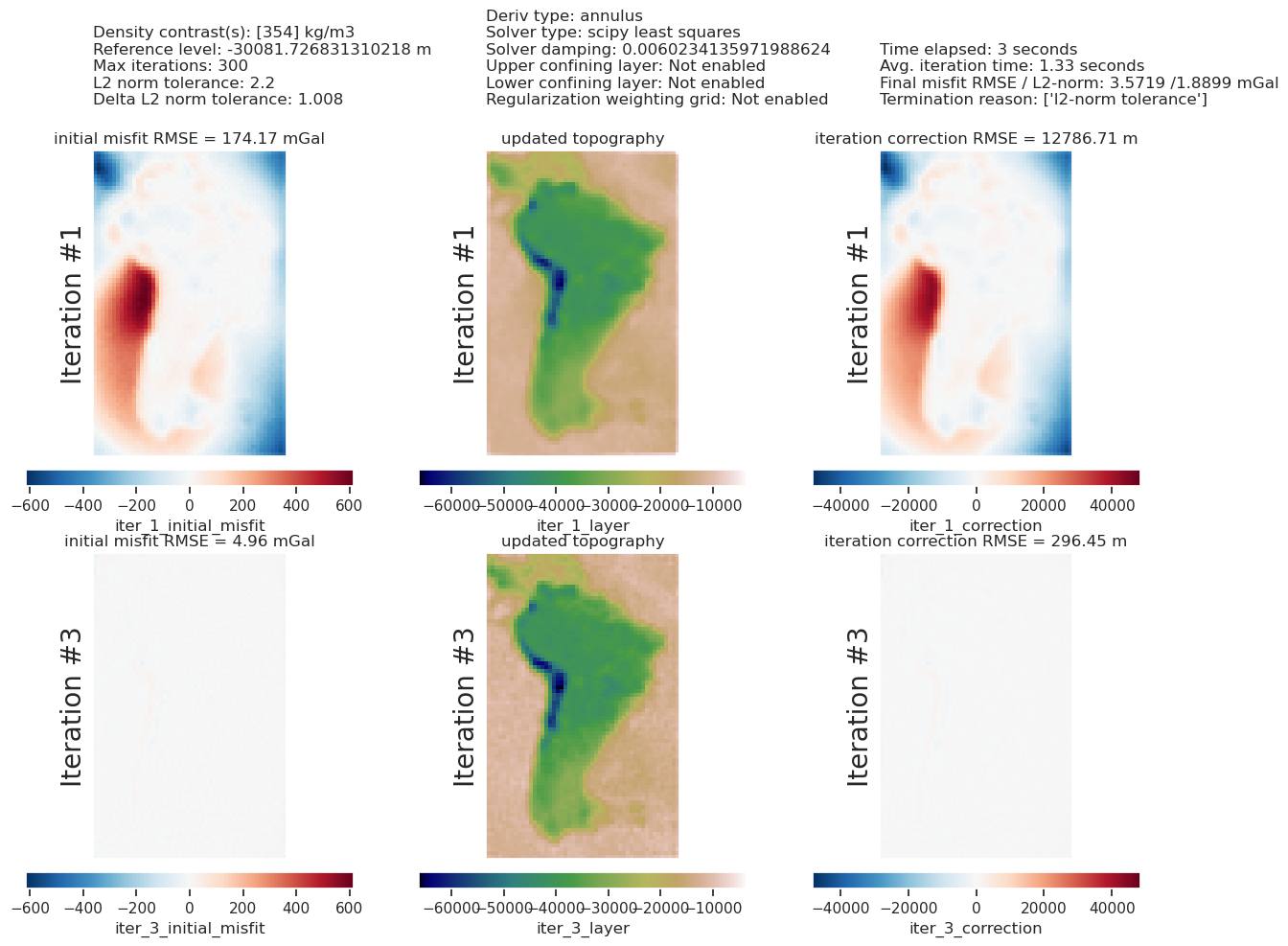

plotting.plot_inversion_results(
grav_results,
topo_results,
parameters,
region,
iters_to_plot=2,
plot_iter_results=True,
plot_topo_results=False,
plot_grav_results=True,
fig_height=18,
)

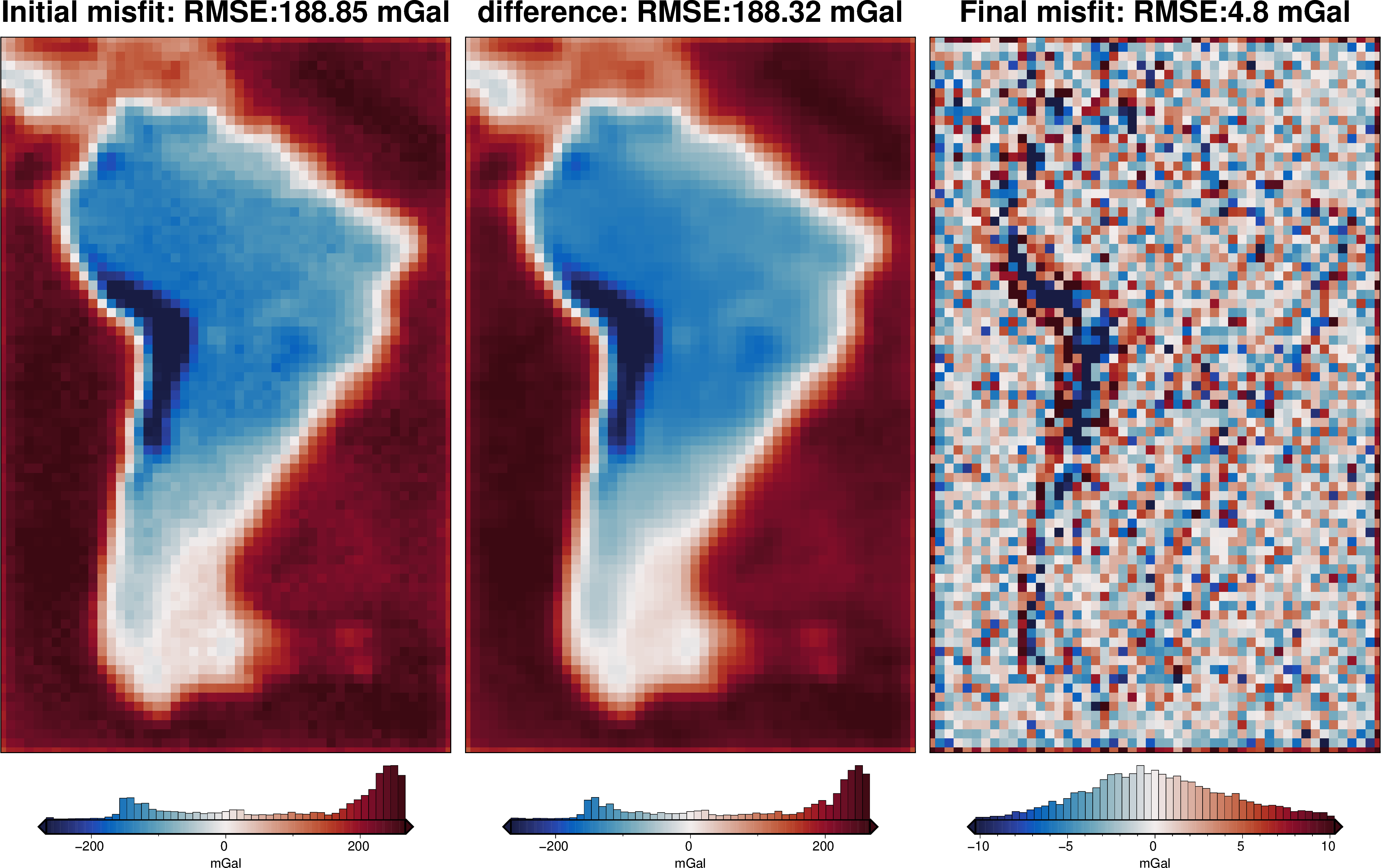

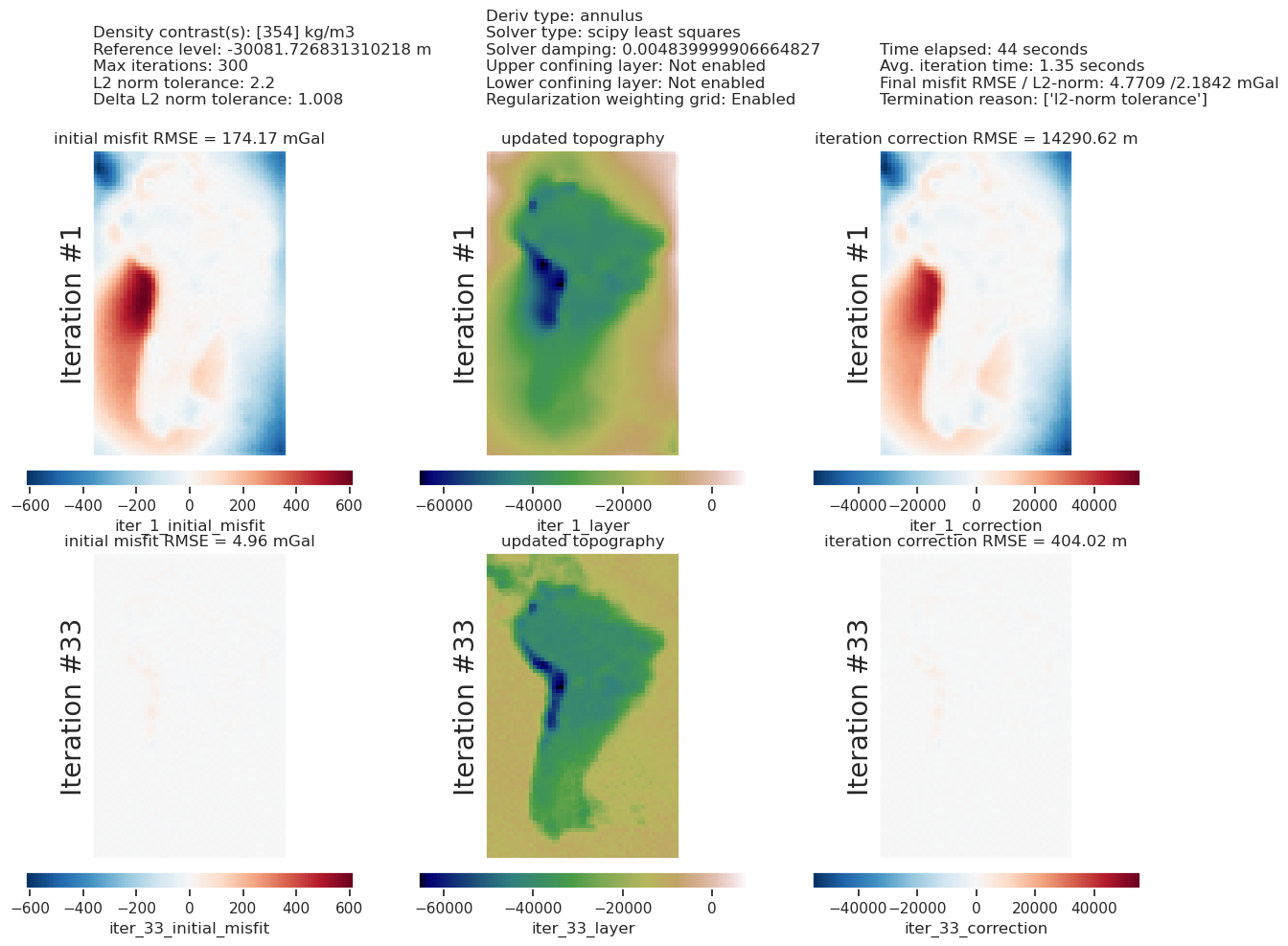

The top plot above compares gravity misfit before and after the inversion. The right subplot is equivalent to Figure 7g in the paper.
The lower plot shows the iteration results of the inversion, and has all the parameter values and metadata at the top. From this, you can see the inversion terminated after 2 iterations due to the inversion reaching the set L2-norm tolerance.
[25]:
final_topography = topo_results.set_index(["northing", "easting"]).to_xarray().topo
_ = polar_utils.grd_compare(
true_moho,
final_topography,
plot=True,
region=region,
grid1_name="True topography",
grid2_name="Inverted topography",
robust=False,
hist=True,
inset=False,
verbose="q",
title="difference",
grounding_line=False,
reverse_cpt=True,
cmap="rain",
)

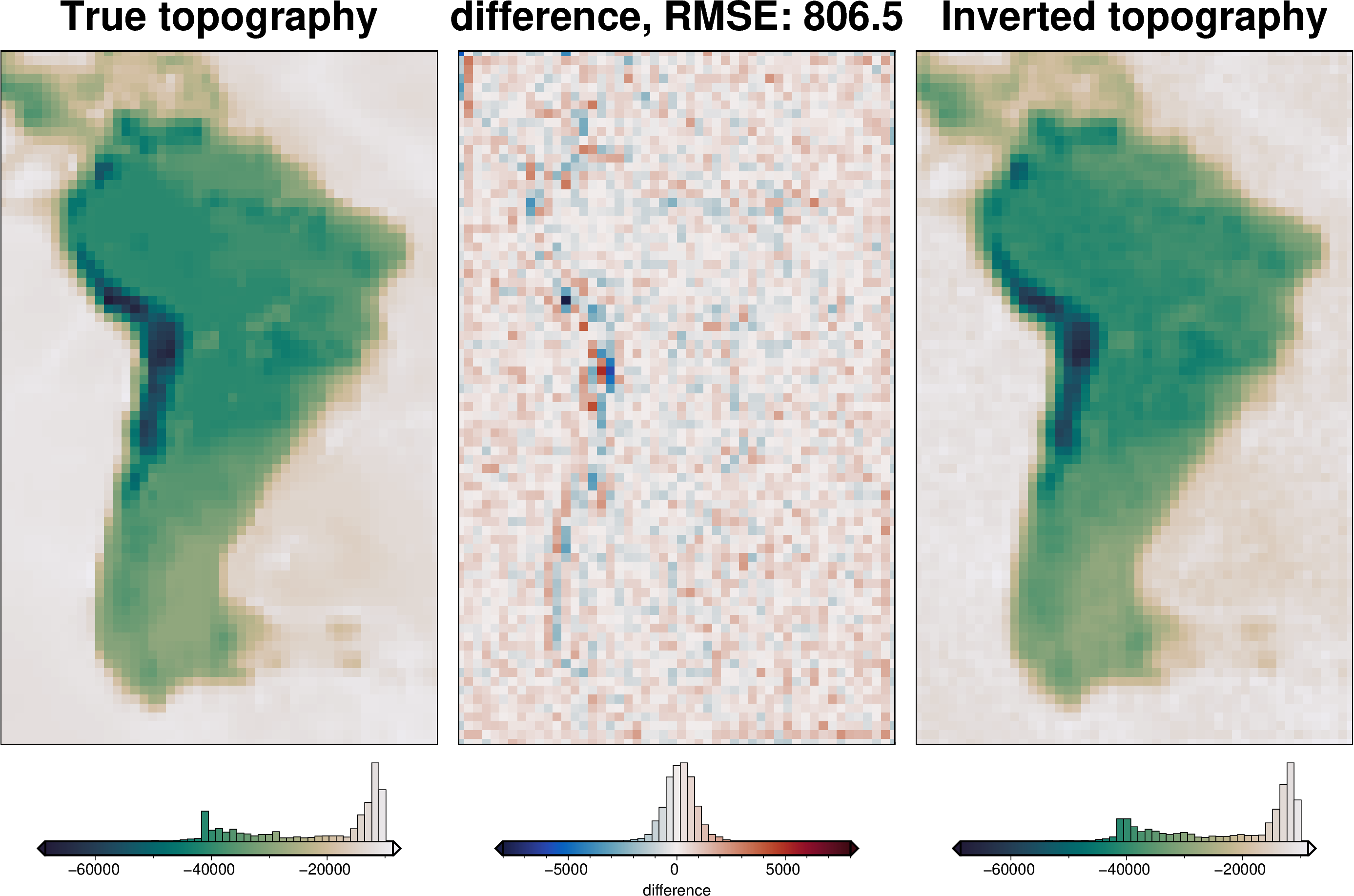

The above plot shows the difference between the true and inverted topography and is equivalent to Figure 6d in the paper. The colorbar histogram of the middle subplot is equivalent to Figure 6f. The errors are normally distributed around 0, with a RMS of ~800m.
[26]:
# sample the inverted topography at the constraint points
constraint_points = utils.sample_grids(
constraint_points,
final_topography,
"inverted_topography",
)
rmse = utils.rmse(constraint_points.upward - constraint_points.inverted_topography)
print(f"RMSE: {rmse:.2f} m")
RMSE: 1317.74 m
Repeat with adhering to constraints#
the above inversions only used the constraint points as a means to perform the cross validation. Below we will create a starting model from theses points and attempt to make the inversion adhere to the constraints.
Starting model#
[27]:
# grid the sampled values using verde
starting_topography = utils.create_topography(
method="splines",
region=region,
spacing=spacing,
constraints_df=constraint_points,
dampings=None, # np.logspace(-20, 0, 4),
)
_ = polar_utils.grd_compare(
true_moho,
starting_topography,
fig_height=20,
region=region,
plot=True,
grid1_name="True topography",
grid2_name="Starting topography",
robust=True,
hist=True,
inset=False,
verbose="q",
title="difference",
grounding_line=False,
reverse_cpt=True,
cmap="rain",
points=constraint_points,
points_style="x.3c",
)
[28]:
# sample the inverted topography at the constraint points
constraint_points = utils.sample_grids(
constraint_points,
starting_topography,
"starting_topography",
)
rmse = utils.rmse(constraint_points.upward - constraint_points.starting_topography)
print(f"RMSE: {rmse:.2f} m")
RMSE: 232.74 m

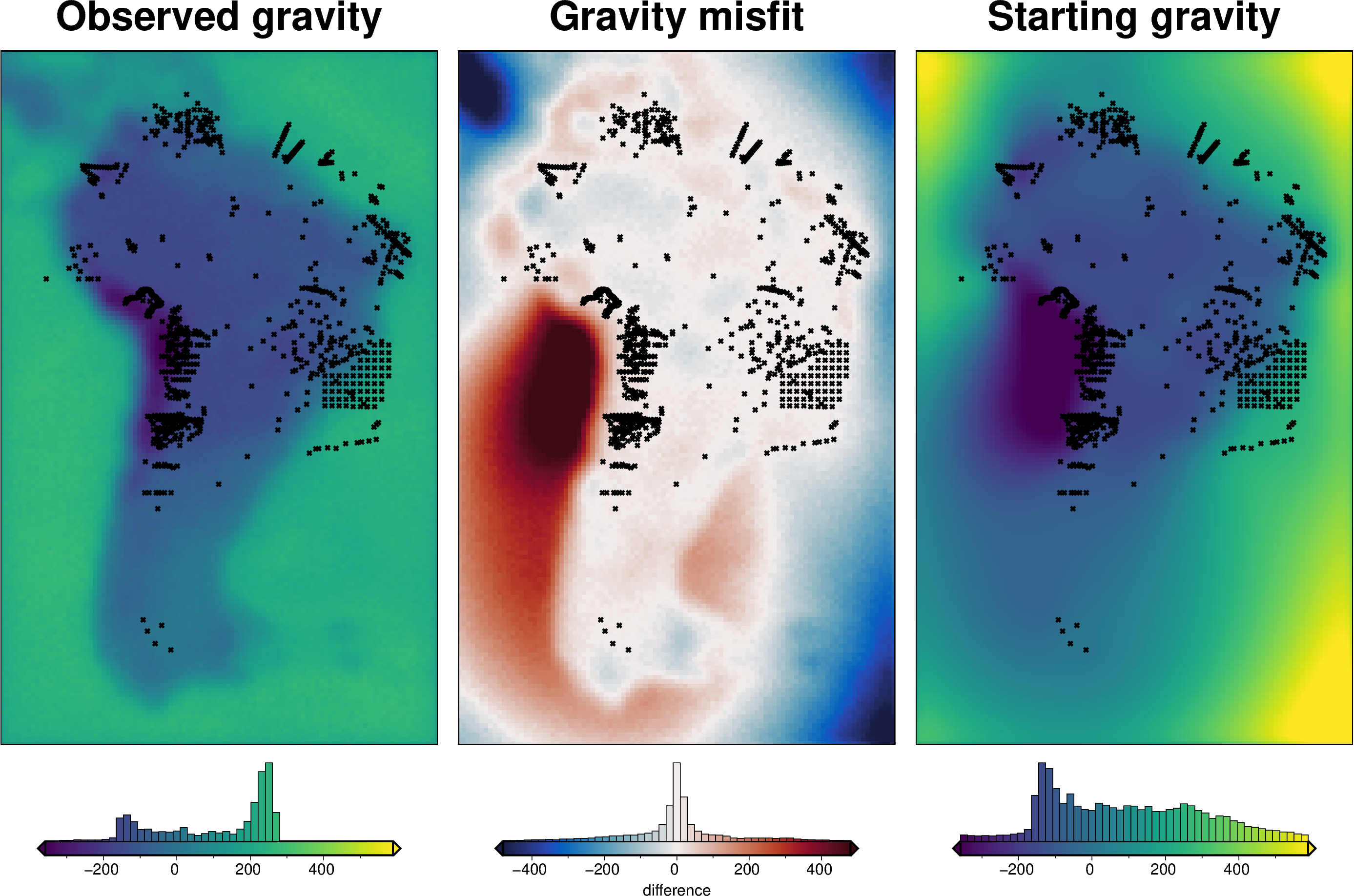

Gravity misfit#
All inversions in Invert4Geom are based on a gravity misfit, not a gravity anomaly. This means before the inversion, we must create a starting prism model, forward model itâs gravity effect, remove it from the gravity anomaly, and get a gravity misfit.
Following the approach from the paper, for the damping parameter cross validation, we assume we know the true values for the density contrast and the reference level.
[29]:
true_density_contrast, true_zref
[29]:
(350, -30000.0)
[30]:
# choose reference levels
zref = true_zref
density_contrast = true_density_contrast
density_grid = xr.where(
starting_topography >= zref, density_contrast, -density_contrast
)
# create layer of prisms
starting_prisms = utils.grids_to_prisms(
starting_topography,
zref,
density=density_grid,
)
plotting.show_prism_layers(
starting_prisms,
color_by="density",
log_scale=False,
zscale=20,
backend="static",
)
# calculate forward gravity of starting prism layer
grav_df_resampled["starting_gravity"] = starting_prisms.prism_layer.gravity(
coordinates=(
grav_df_resampled.easting,
grav_df_resampled.northing,
grav_df_resampled.upward,
),
field="g_z",
progressbar=True,
)
# in many cases, we want to remove a regional signal from the misfit to isolate the
# residual signal. In this simple case, we assume there is no regional misfit and set
# it to 0
grav_df_resampled = regional.regional_separation(
method="constant",
constant=0,
grav_df=grav_df_resampled,
)
grav_df_resampled
MESA: error: ZINK: failed to choose pdev
glx: failed to create drisw screen
[30]:
| northing | easting | test | upward | gravity_anomaly | starting_gravity | misfit | reg | res | |
|---|---|---|---|---|---|---|---|---|---|
| 0 | -8308000.0 | -9916000.0 | False | 50000.0 | 149.679489 | 245.768513 | -96.089024 | 0 | -96.089024 |
| 1 | -8308000.0 | -9849000.0 | True | 50000.0 | 168.821051 | 270.390793 | -101.569742 | 0 | -101.569742 |
| 2 | -8308000.0 | -9782000.0 | False | 50000.0 | 181.023137 | 273.837676 | -92.814539 | 0 | -92.814539 |
| 3 | -8308000.0 | -9715000.0 | True | 50000.0 | 182.558062 | 270.977514 | -88.419452 | 0 | -88.419452 |
| 4 | -8308000.0 | -9648000.0 | False | 50000.0 | 181.831163 | 265.453505 | -83.622342 | 0 | -83.622342 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 15538 | 2144000.0 | -3618000.0 | False | 50000.0 | 183.238536 | 577.009811 | -393.771276 | 0 | -393.771276 |
| 15539 | 2144000.0 | -3551000.0 | True | 50000.0 | 180.454881 | 590.073049 | -409.618169 | 0 | -409.618169 |
| 15540 | 2144000.0 | -3484000.0 | False | 50000.0 | 172.672940 | 598.616429 | -425.943489 | 0 | -425.943489 |
| 15541 | 2144000.0 | -3417000.0 | True | 50000.0 | 167.308086 | 597.753881 | -430.445795 | 0 | -430.445795 |
| 15542 | 2144000.0 | -3350000.0 | False | 50000.0 | 147.883445 | 559.581766 | -411.698321 | 0 | -411.698321 |
15543 rows à 9 columns
[31]:
# grid the results
grav_grid = grav_df_resampled.set_index(["northing", "easting"]).to_xarray()
_ = polar_utils.grd_compare(
grav_grid.gravity_anomaly,
grav_grid.starting_gravity,
plot=True,
grid1_name="Observed gravity",
grid2_name="Starting gravity",
robust=True,
hist=True,
inset=False,
verbose="q",
title="Gravity misfit",
rmse_in_title=False,
grounding_line=False,
points=constraint_points,
points_style="x.1c",
)

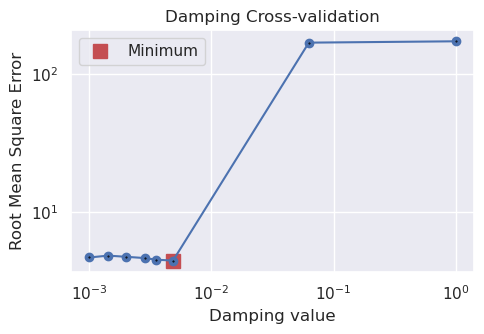

Damping CV#
[32]:
study, inversion_results = optimization.optimize_inversion_damping(
training_df=grav_df_resampled[grav_df_resampled.test == False],
testing_df=grav_df_resampled[grav_df_resampled.test == True],
prism_layer=starting_prisms,
damping_limits=(0.001, 1),
n_trials=8,
# grid_search=True,
# plot_grids=True,
fname="../tmp/uieda_CRUST1_damping_CV_with_starting_model",
**kwargs,
)
INFO:invert4geom:using 4 startup trials
INFO:invert4geom:Trial with best score:
INFO:invert4geom: trial number: 6
INFO:invert4geom: parameter: {'damping': 0.0060234135971988624}
INFO:invert4geom: scores: [5.9944783333517755]
[33]:
# to re-load the study from the saved pickle file
with pathlib.Path(
"../tmp/uieda_CRUST1_damping_CV_with_starting_model_study.pickle"
).open("rb") as f:
study = pickle.load(f)
# to re-load the inversion results from the saved pickle file
with pathlib.Path(
"../tmp/uieda_CRUST1_damping_CV_with_starting_model_results.pickle"
).open("rb") as f:
inversion_results = pickle.load(f)
# collect the results
topo_results, grav_results, parameters, elapsed_time = inversion_results
[34]:
best_damping = study.best_params.get("damping")
best_damping
[34]:
0.0060234135971988624
Density / Zref CV#
[35]:
# drop testing data
grav_df = grav_df_resampled[grav_df_resampled.test == False]
grav_df = grav_df.drop(columns=["test"])
grav_df
[35]:
| northing | easting | upward | gravity_anomaly | starting_gravity | misfit | reg | res | |
|---|---|---|---|---|---|---|---|---|
| 0 | -8308000.0 | -9916000.0 | 50000.0 | 149.679489 | 245.768513 | -96.089024 | 0 | -96.089024 |
| 2 | -8308000.0 | -9782000.0 | 50000.0 | 181.023137 | 273.837676 | -92.814539 | 0 | -92.814539 |
| 4 | -8308000.0 | -9648000.0 | 50000.0 | 181.831163 | 265.453505 | -83.622342 | 0 | -83.622342 |
| 6 | -8308000.0 | -9514000.0 | 50000.0 | 193.791533 | 251.936969 | -58.145436 | 0 | -58.145436 |
| 8 | -8308000.0 | -9380000.0 | 50000.0 | 185.269207 | 237.613550 | -52.344344 | 0 | -52.344344 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 15534 | 2144000.0 | -3886000.0 | 50000.0 | 190.038049 | 517.983880 | -327.945831 | 0 | -327.945831 |
| 15536 | 2144000.0 | -3752000.0 | 50000.0 | 175.462622 | 547.917242 | -372.454620 | 0 | -372.454620 |
| 15538 | 2144000.0 | -3618000.0 | 50000.0 | 183.238536 | 577.009811 | -393.771276 | 0 | -393.771276 |
| 15540 | 2144000.0 | -3484000.0 | 50000.0 | 172.672940 | 598.616429 | -425.943489 | 0 | -425.943489 |
| 15542 | 2144000.0 | -3350000.0 | 50000.0 | 147.883445 | 559.581766 | -411.698321 | 0 | -411.698321 |
3950 rows à 8 columns
[36]:
# run the cross validation for the zref and density
study, inversion_results = optimization.optimize_inversion_zref_density_contrast(
grav_df=grav_df,
constraints_df=constraint_points,
solver_damping=best_damping,
density_contrast_limits=(200, 500),
zref_limits=(-35e3, -20e3),
n_trials=20,
starting_topography=starting_topography,
regional_grav_kwargs={
"method": "constant",
"constant": 0,
},
# grid_search=True,
fname="../tmp/uieda_CRUST1_zref_density_cv_with_starting_model",
# score_as_median=True,
**kwargs,
)
INFO:invert4geom:using 8 startup trials
INFO:invert4geom:Trial with best score:
INFO:invert4geom: trial number: 18
INFO:invert4geom: parameter: {'zref': -30081.726831310218, 'density_contrast': 354}
INFO:invert4geom: scores: [569.4001191488771]
WARNING:invert4geom:'starting_gravity' already a column of `grav_df`, but is being overwritten since calculate_starting_gravity is True
WARNING:invert4geom:'reg' already a column of `grav_df`, but is being overwritten since calculate_regional_misfit is True
[37]:
# to re-load the study from the saved pickle file
with pathlib.Path(
"../tmp/uieda_CRUST1_zref_density_cv_with_starting_model_study.pickle"
).open("rb") as f:
study = pickle.load(f)
# to re-load the inversion results from the saved pickle file
with pathlib.Path(
"../tmp/uieda_CRUST1_zref_density_cv_with_starting_model_results.pickle"
).open("rb") as f:
inversion_results = pickle.load(f)
# collect the results
topo_results, grav_results, parameters, elapsed_time = inversion_results
[38]:
best_zref = study.best_params.get("zref")
best_density_contrast = study.best_params.get("density_contrast")
best_zref, true_zref
[38]:
(-30081.726831310218, -30000.0)
[39]:
best_density_contrast, true_density_contrast
[39]:
(354, 350)
[40]:
plotting.plot_inversion_results(
grav_results,
topo_results,
parameters,
region,
iters_to_plot=2,
plot_iter_results=True,
plot_topo_results=False,
plot_grav_results=False,
fig_height=18,
)
final_topography = topo_results.set_index(["northing", "easting"]).to_xarray().topo

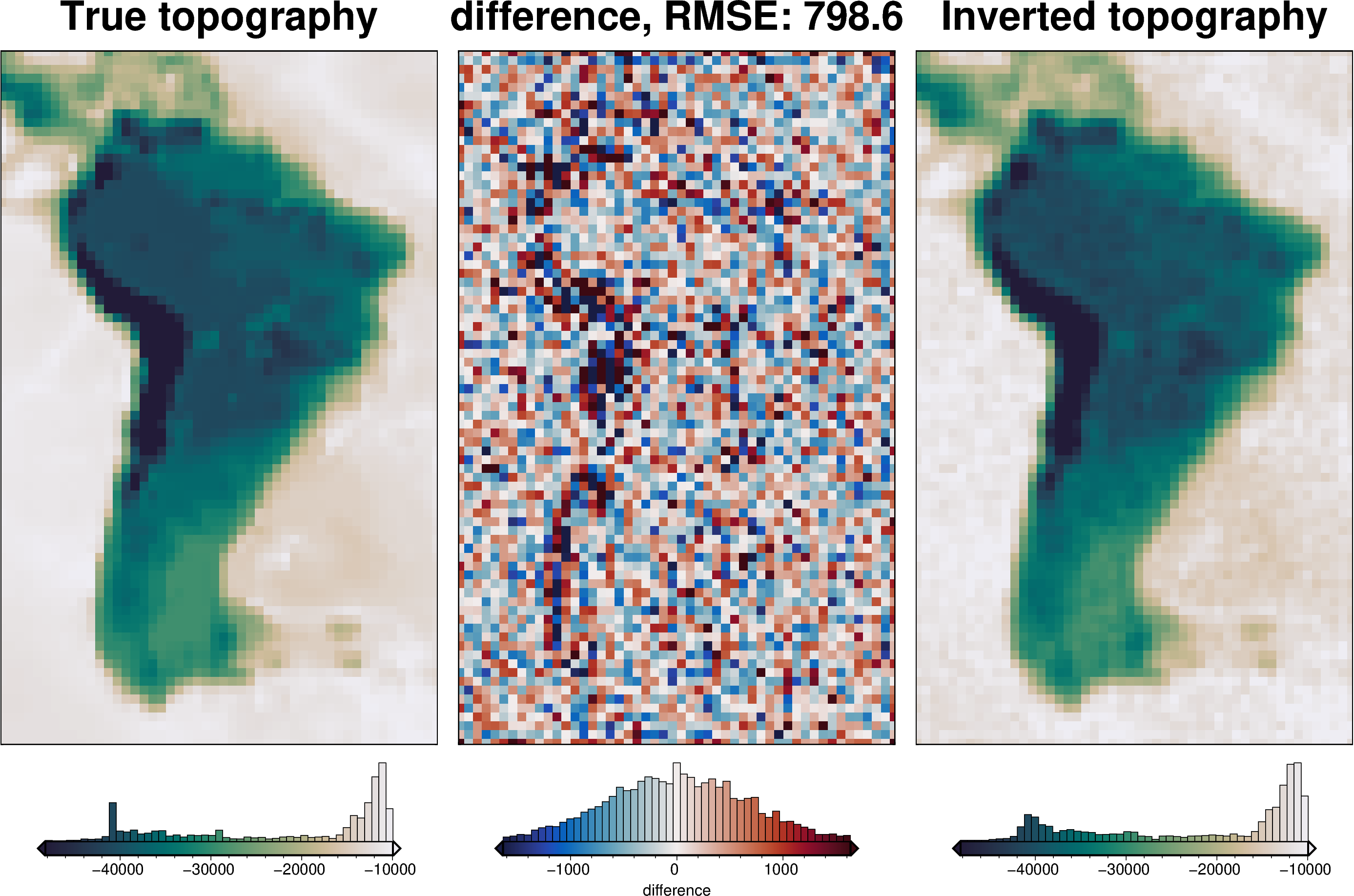

_ = polar_utils.grd_compare(
true_moho,
final_topography,
plot=True,
region=region,
grid1_name="True topography",
grid2_name="Inverted topography",
# robust=True,
hist=True,
inset=False,
verbose="q",
title="difference",
grounding_line=False,
reverse_cpt=True,
cmap="rain",
)
[41]:
# sample the inverted topography at the constraint points
constraint_points = utils.sample_grids(
constraint_points,
final_topography,
"inverted_topography",
)
rmse = utils.rmse(constraint_points.upward - constraint_points.inverted_topography)
print(f"RMSE: {rmse:.2f} m")
RMSE: 569.40 m
The inversion error without a starting model was 900 m, and 1300 m at constraint points. Including a starting model reduced these both to 800 m and 570 m, respectively.
Use a weighting grid#
To ensure the inversion doesnât alter the starting model at the constraint points, where we know what the Moho elevation is, we can use a weighting grid. This scales each iterations correction values to be 0 at the constraint points. Itâs a good idea to redo the damping parameter CV when using this since the optimal damping value will likely change when youâre usin a weighting grid.

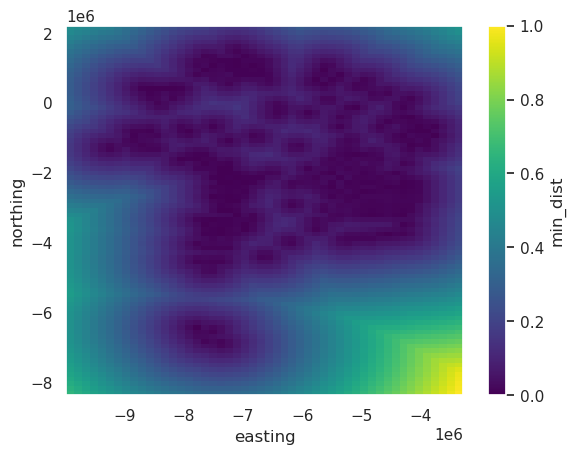

[42]:
# calculate the distance between each grid cell and the nearest constraint, then
# normalize those values between 0 and 1
weighting_grid = utils.normalized_mindist(
constraint_points,
starting_prisms,
low=0,
high=1,
)
weighting_grid.plot()
[42]:
<matplotlib.collections.QuadMesh at 0x7feeed8f7110>
[43]:
inversion_results = inversion.run_inversion_workflow(
# enable the use of weights
apply_weighting_grid=True,
weighting_grid=weighting_grid,
grav_df=grav_df,
constraints_df=constraint_points,
solver_damping=best_damping,
create_starting_prisms=True,
starting_topography=starting_topography,
zref=best_zref,
density_contrast=best_density_contrast,
calculate_regional_misfit=True,
regional_grav_kwargs={
"method": "constant",
"constant": 0,
},
run_damping_cv=True,
damping_limits=(0.001, 1),
damping_cv_trials=8,
# need to provide spacing and region to resample the gravity data into test/train
# sets
grav_spacing=spacing,
inversion_region=region,
fname="../tmp/uieda_CRUST1_zref_density_cv_with_starting_model_weighted",
plot_cv=True,
**kwargs,
)
INFO:invert4geom:saving all results with root name '../tmp/uieda_CRUST1_zref_density_cv_with_starting_model_weighted'
WARNING:invert4geom:'starting_gravity' already a column of `grav_df`, but is being overwritten since calculate_starting_gravity is True
WARNING:invert4geom:'reg' already a column of `grav_df`, but is being overwritten since calculate_regional_misfit is True
INFO:invert4geom:running damping cross validation
INFO:invert4geom:using 4 startup trials
INFO:invert4geom:Trial with best score:
INFO:invert4geom: trial number: 7
INFO:invert4geom: parameter: {'damping': 0.004839999906664827}
INFO:invert4geom: scores: [4.436787971733774]
INFO:invert4geom:results saved to ../tmp/uieda_CRUST1_zref_density_cv_with_starting_model_weighted_results.pickle.pickle
[44]:
# to re-load the inversion results from the saved pickle file
name = "../tmp/uieda_CRUST1_zref_density_cv_with_starting_model_weighted_damping_cv_results.pickle" # noqa: E501
with pathlib.Path(name).open("rb") as f:
inversion_results = pickle.load(f)
# collect the results
topo_results, grav_results, parameters, elapsed_time = inversion_results
[45]:
plotting.plot_inversion_results(
grav_results,
topo_results,
parameters,
region,
iters_to_plot=2,
plot_iter_results=True,
plot_topo_results=False,
plot_grav_results=False,
fig_height=18,
)
final_topography = topo_results.set_index(["northing", "easting"]).to_xarray().topo
_ = polar_utils.grd_compare(
true_moho,
final_topography,
plot=True,
region=region,
grid1_name="True topography",
grid2_name="Inverted topography",
# robust=True,
hist=True,
inset=False,
verbose="q",
title="difference",
grounding_line=False,
reverse_cpt=True,
cmap="rain",
points=constraint_points,
points_style="x.02c",
)
[46]:
# sample the inverted topography at the constraint points
constraint_points = utils.sample_grids(
constraint_points,
final_topography,
"inverted_topography",
)
rmse = utils.rmse(constraint_points.upward - constraint_points.inverted_topography)
print(f"RMSE: {rmse:.2f} m")
RMSE: 212.66 m
As you can see, adding the weight grid has helped adhere to the constraint points. The RMSE at constraints without the weighting grid was 1300 m and 570 m, without and with a starting model, respectively. Including the weighting grid lowered this to 210 m.
However, overall this inversion performed worse. The overall RMSE without the weighting grid was 900 m and 800 m, , without and with a starting model, respectively. Using the weighting grid inclreased this to 1020 m.
