Synthetic Moho Model from Uieda et al. 2017.

Synthetic Moho Model from Uieda et al. 2017.#

Here we attempt to reproduce the simple synthetic Moho inversion from Uieda et al. 2017: Fast nonlinear gravity inversion in spherical coordinates with application to the South American Moho. They provide functions for creating synthetic Moho topography, which we forward model to create the observed gravity data to use for the inversion.

[1]:

%load_ext autoreload
%autoreload 2

import logging
import pathlib
import pickle

import numpy as np
import pyproj
import scipy as sp
import verde as vd
import xarray as xr
from polartoolkit import maps
from polartoolkit import utils as polar_utils

from invert4geom import (
    cross_validation,
    optimization,
    plotting,
    regional,
    synthetic,
    utils,
)

# set up logging to see what's going on
logging.basicConfig(level=logging.INFO)

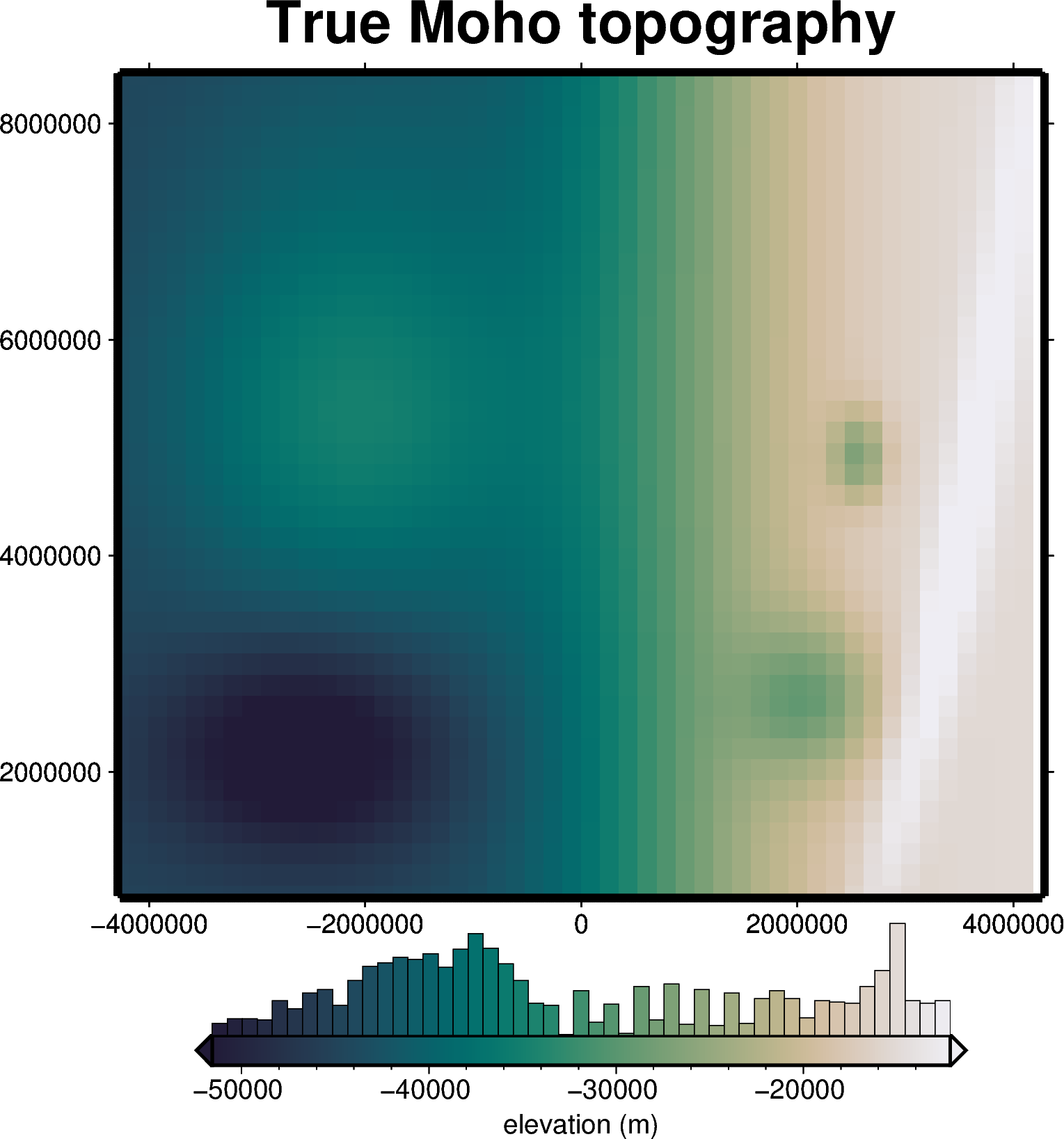

Observed gravity data#

We can know forward-model the effects of this topography and add some noise to make a synthetic observed gravity dataset.

[5]:

# Define the reference level (height in meters).
# This is the Moho depth of the Normal Earth
true_zref = -30e3

# The density contrast is negative if the relief is below the reference
true_density_contrast = 400
density_grid = xr.where(
    true_moho >= true_zref, true_density_contrast, -true_density_contrast
)

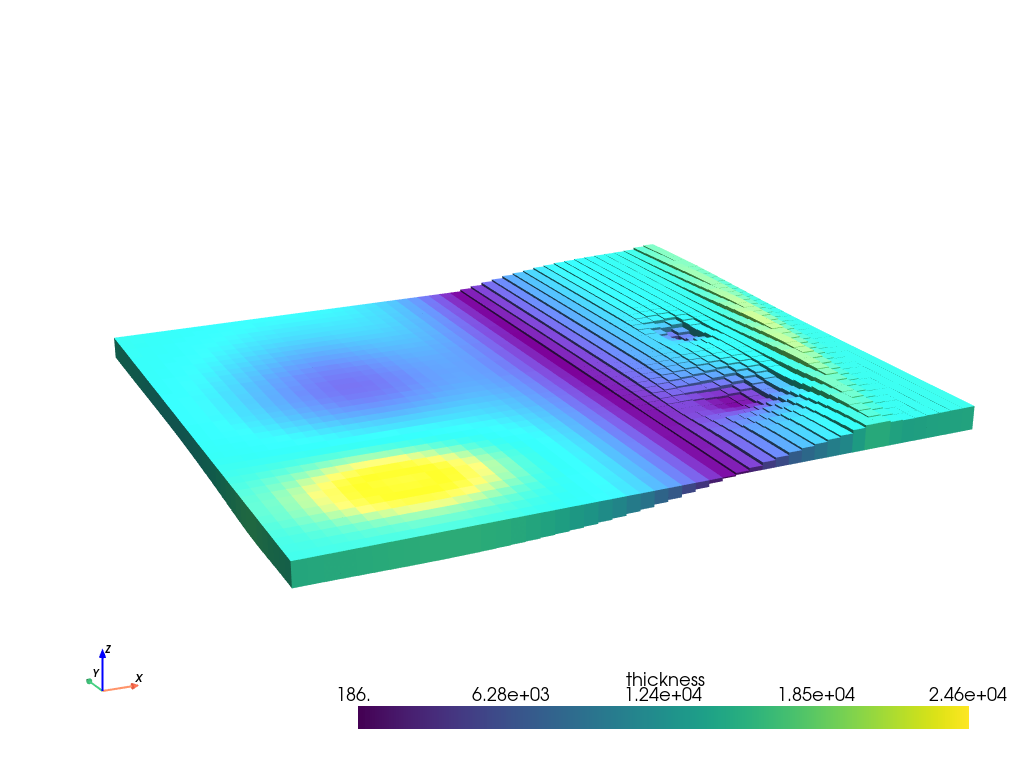

# make prism layer
prisms = utils.grids_to_prisms(true_moho, true_zref, density=density_grid)

plotting.show_prism_layers(
    prisms,
    color_by="thickness",
    log_scale=False,
    zscale=20,
    backend="static",
)

../_images/examples_uieda_et_al_2017_synthetic_7_0.png

[6]:

spacing, region, _, _, _ = polar_utils.get_grid_info(true_moho)
spacing, region

[6]:

(195062.062538, (-4269692.84793, 4269692.84793, 852619.296672, 8460039.73566))

[7]:

# make pandas dataframe of locations to calculate gravity
# this represents the station locations of a gravity survey
# create lists of coordinates
coords = vd.grid_coordinates(
    region=region,
    spacing=spacing,
    pixel_register=False,
    extra_coords=50e3,  # survey elevation
)

# grid the coordinates
observations = vd.make_xarray_grid(
    (coords[0], coords[1]),
    data=coords[2],
    data_names="upward",
    dims=("northing", "easting"),
).upward

grav_df = vd.grid_to_table(observations)

# resample to half spacing
grav_df = cross_validation.resample_with_test_points(spacing, grav_df, region)
grav_df

grav_df["gravity_anomaly"] = prisms.prism_layer.gravity(
    coordinates=(
        grav_df.easting,
        grav_df.northing,
        grav_df.upward,
    ),
    field="g_z",
    progressbar=True,
)
# contaminate gravity with random noise
grav_df["gravity_anomaly"], stddev = synthetic.contaminate(
    grav_df.gravity_anomaly,
    stddev=5,
    percent=False,
    seed=0,
)

grav_df.describe()

INFO:invert4geom:Standard deviation used for noise: [5.0]

[7]:

	northing	easting	upward	gravity_anomaly
count	7.031000e+03	7.031000e+03	7.031000e+03	7031.000000
mean	4.656330e+06	-2.585609e-10	5.000000e+04	-33.485446
std	2.224208e+06	2.493141e+06	6.285309e-12	176.189841
min	8.526193e+05	-4.269693e+06	5.000000e+04	-383.492474
25%	2.705709e+06	-2.134846e+06	5.000000e+04	-170.164560
50%	4.656330e+06	0.000000e+00	5.000000e+04	-93.256424
75%	6.606950e+06	2.134846e+06	5.000000e+04	134.484639
max	8.460040e+06	4.269693e+06	5.000000e+04	300.953412

[8]:

grav_grid = grav_df.set_index(["northing", "easting"]).to_xarray()

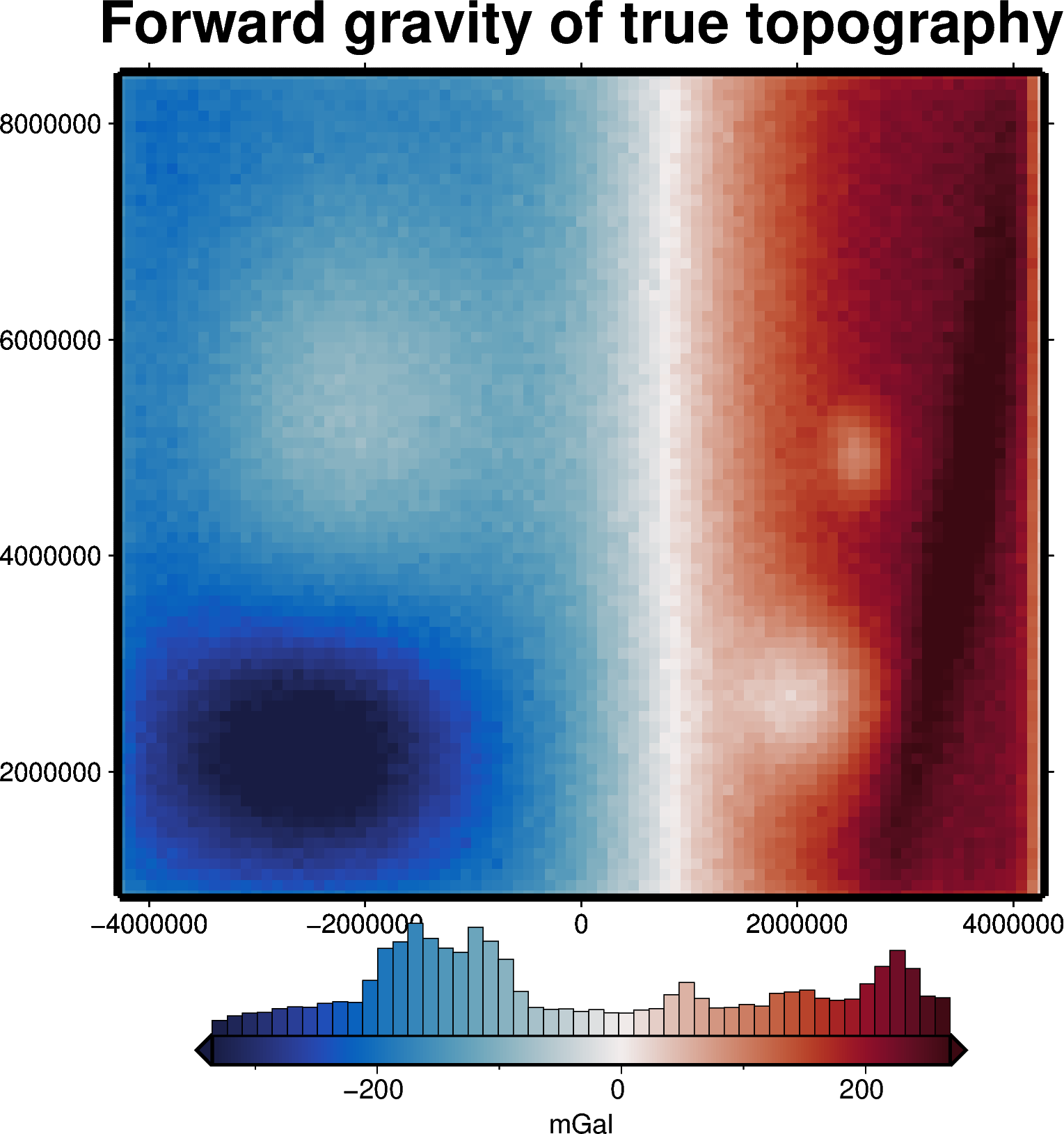

fig = maps.plot_grd(
    grav_grid.gravity_anomaly,
    fig_height=10,
    title="Forward gravity of true topography",
    hist=True,
    cmap="balance+h0",
    cbar_label="mGal",
    robust=True,
    frame=["nSWe", "xaf10000", "yaf10000"],
)
fig.show()

../_images/examples_uieda_et_al_2017_synthetic_10_0.png

[9]:

true_zref, true_density_contrast

[9]:

(-30000.0, 400)

Starting model#

Following the paper’s approach, we create a starting model which uses the true values of the density contrast and reference level for the Moho. This is used during the damping parameter cross-validation.

[10]:

# create flat topography grid with a constant height equal the mean of the starting
# topography (zref)
zref = true_zref
density_contrast = true_density_contrast
starting_topography = xr.full_like(true_moho, zref)

# prisms above zref have positive density contrast and prisms below zref have negative
# density contrast
density_grid = xr.where(
    starting_topography >= zref, density_contrast, -density_contrast
)

# create layer of prisms
starting_prisms = utils.grids_to_prisms(
    starting_topography,
    zref,
    density=density_grid,
)

# since our starting model is flat, the starting gravity is 0
grav_df["starting_gravity"] = 0

# in many cases, we want to remove a regional signal from the misfit to isolate the
# residual signal. In this simple case, we assume there is no regional misfit and set
# it to 0
grav_df = regional.regional_separation(
    method="constant",
    constant=0,
    grav_df=grav_df,
)
grav_df

[10]:

	northing	easting	test	upward	gravity_anomaly	starting_gravity	misfit	reg	res
0	8.526193e+05	-4.269693e+06	False	50000.0	-152.062976	0	-152.062976	0	-152.062976
1	8.526193e+05	-4.172654e+06	True	50000.0	-175.360912	0	-175.360912	0	-175.360912
2	8.526193e+05	-4.075616e+06	False	50000.0	-180.137655	0	-180.137655	0	-180.137655
3	8.526193e+05	-3.978577e+06	True	50000.0	-187.583852	0	-187.583852	0	-187.583852
4	8.526193e+05	-3.881539e+06	False	50000.0	-193.926566	0	-193.926566	0	-193.926566
...	...	...	...	...	...	...	...	...	...
7026	8.460040e+06	3.881539e+06	False	50000.0	205.203099	0	205.203099	0	205.203099
7027	8.460040e+06	3.978577e+06	True	50000.0	197.734746	0	197.734746	0	197.734746
7028	8.460040e+06	4.075616e+06	False	50000.0	197.234724	0	197.234724	0	197.234724
7029	8.460040e+06	4.172654e+06	True	50000.0	125.075292	0	125.075292	0	125.075292
7030	8.460040e+06	4.269693e+06	False	50000.0	41.293280	0	41.293280	0	41.293280

7031 rows × 9 columns

Damping parameter cross validation#

Get individual score#

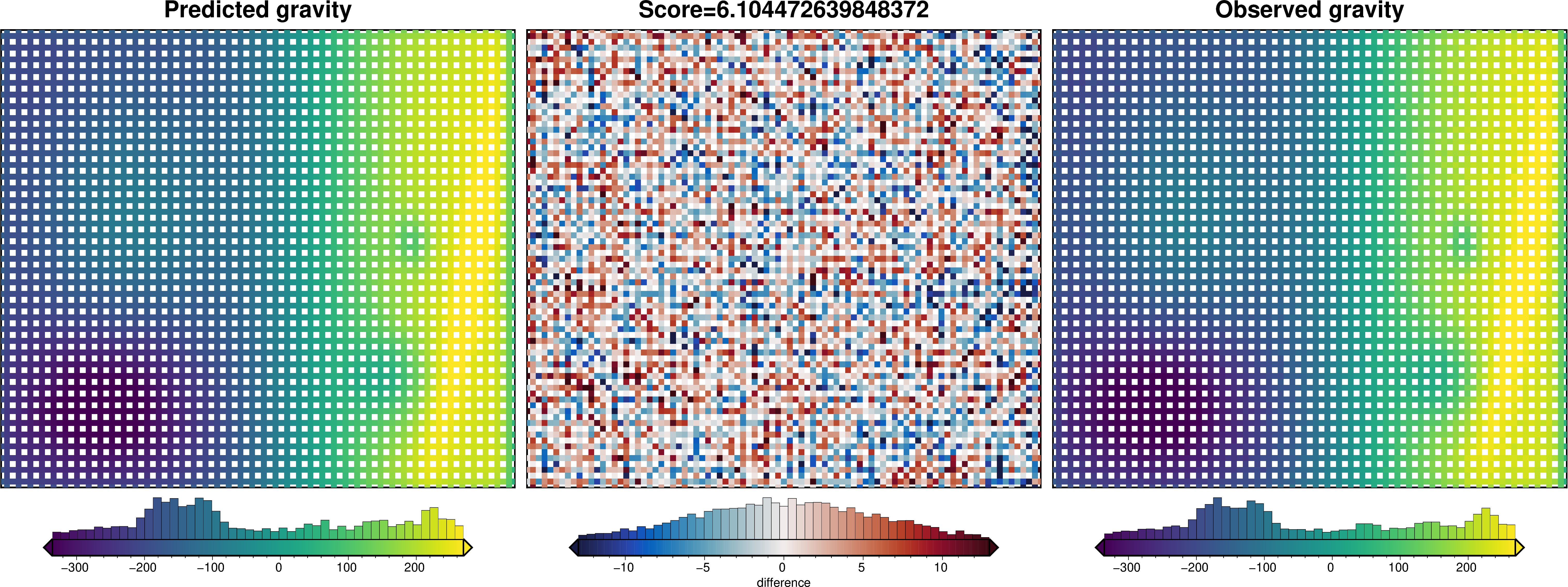

We will perform an inversion with a single damping value and calculate a score for it. The grid shows how to score is calculated, as the RMS difference between the predicted and observed gravity data.

[11]:

# set kwargs to pass to the inversion
kwargs = {
    # set stopping criteria
    "max_iterations": 300,
    "l2_norm_tolerance": 2.2,  # gravity error is 5 mGal or L2-norm of ~2.2
    "delta_l2_norm_tolerance": 1.008,
}

# run inversion, calculate the score, and plot the predicted and observed gravity for
# the testing dataset
score, results = cross_validation.grav_cv_score(
    training_data=grav_df[grav_df.test == False],
    testing_data=grav_df[grav_df.test == True],
    prism_layer=starting_prisms,
    solver_damping=0.01,
    progressbar=True,
    plot=True,
    **kwargs,
)

score

../_images/examples_uieda_et_al_2017_synthetic_16_1.png

[11]:

np.float64(6.104472639848372)

Cross Validation Optimization#

[12]:

study, inversion_results = optimization.optimize_inversion_damping(
    training_df=grav_df[grav_df.test == False],
    testing_df=grav_df[grav_df.test == True],
    prism_layer=starting_prisms,
    damping_limits=(0.001, 1),
    n_trials=8,
    # grid_search=True,
    # plot_grids=True,
    fname="../tmp/uieda_synthetic_damping_CV",
    **kwargs,
)

INFO:invert4geom:using 4 startup trials

INFO:invert4geom:Trial with best score:
INFO:invert4geom:       trial number: 7
INFO:invert4geom:       parameter: {'damping': 0.009919769026292335}
INFO:invert4geom:       scores: [6.097518645707552]

../_images/examples_uieda_et_al_2017_synthetic_18_4.png

[13]:

# to re-load the study from the saved pickle file
with pathlib.Path("../tmp/uieda_synthetic_damping_CV_study.pickle").open("rb") as f:
    study = pickle.load(f)

# to re-load the inversion results from the saved pickle file
with pathlib.Path("../tmp/uieda_synthetic_damping_CV_results.pickle").open("rb") as f:
    inversion_results = pickle.load(f)

# collect the results
topo_results, grav_results, parameters, elapsed_time = inversion_results

[14]:

best_damping = study.best_params.get("damping")
best_damping

[14]:

0.009919769026292335

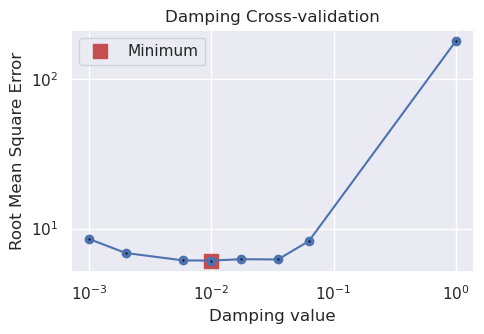

The above plot shows the results of the damping parameter cross validation, and is equivalent to Figure 5e in the paper. The main difference is that we use a optimization approach instead of a grid search. This allows us to find the best value in fewer trials, as the parameter search space is quickly narrowed down. We performed 8 trials, compared to the 16 trials used in the paper.

[15]:

dampings = [
    (t.params["damping"], t.user_attrs["results"][0]) for t in study.get_trials()
]
dampings = sorted(dampings, key=lambda x: x[0])

for damp, df in dampings:
    final_topography = df.set_index(["northing", "easting"]).to_xarray().topo

    _ = polar_utils.grd_compare(
        true_moho,
        final_topography,
        plot=True,
        grid1_name="True topography",
        grid2_name="Inverted topography",
        robust=True,
        hist=True,
        inset=False,
        verbose="q",
        title=f"Damping: {damp}",
        grounding_line=False,
        reverse_cpt=True,
        cmap="rain",
    )

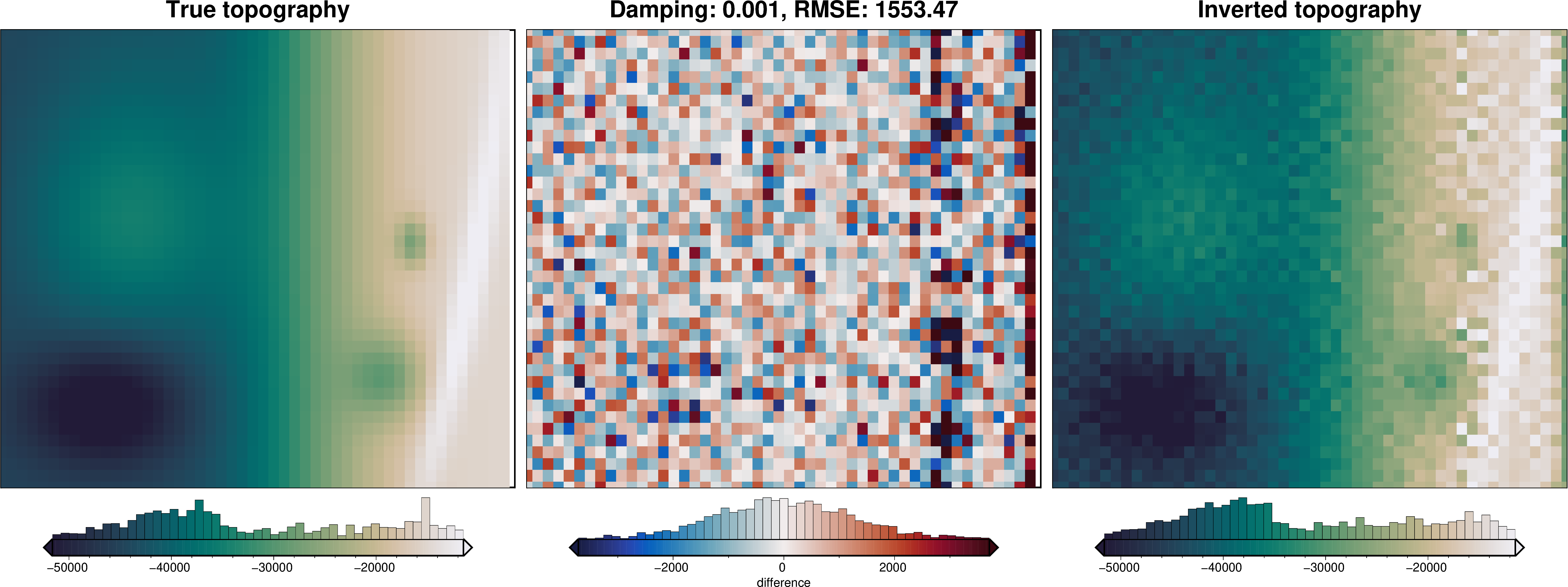

../_images/examples_uieda_et_al_2017_synthetic_22_0.png

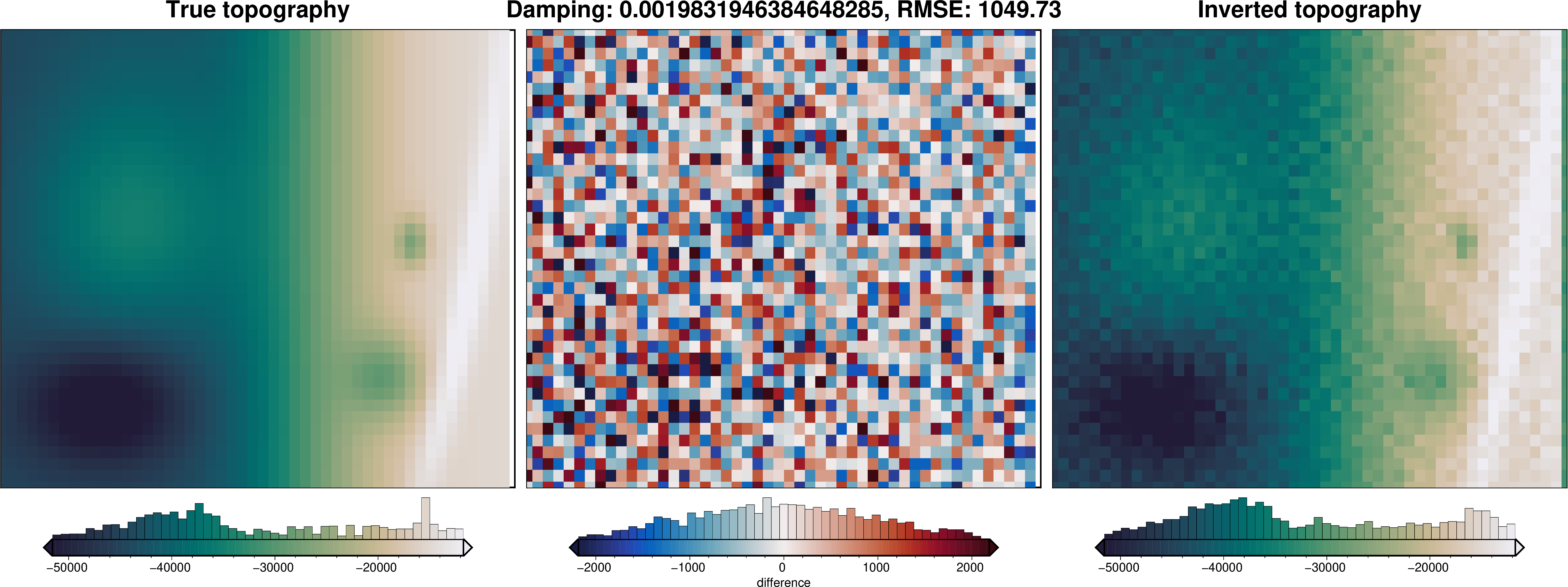

../_images/examples_uieda_et_al_2017_synthetic_22_1.png

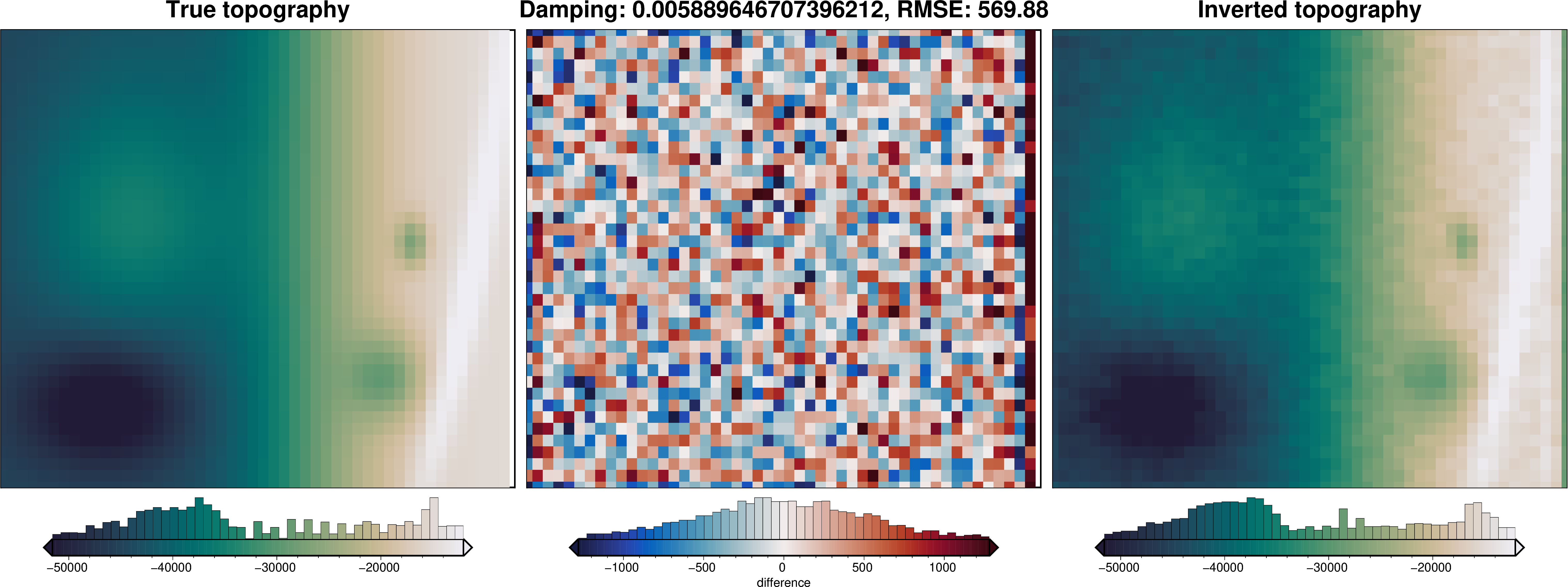

../_images/examples_uieda_et_al_2017_synthetic_22_2.png

../_images/examples_uieda_et_al_2017_synthetic_22_3.png

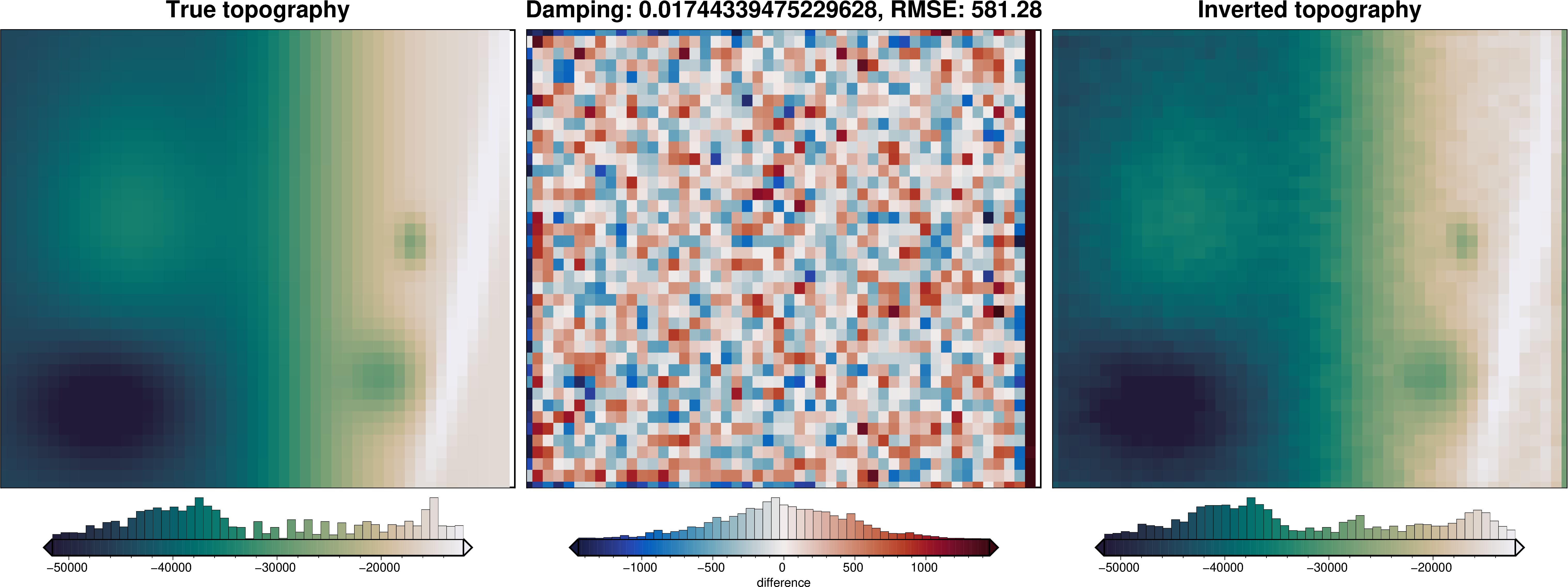

../_images/examples_uieda_et_al_2017_synthetic_22_4.png

../_images/examples_uieda_et_al_2017_synthetic_22_5.png

../_images/examples_uieda_et_al_2017_synthetic_22_6.png

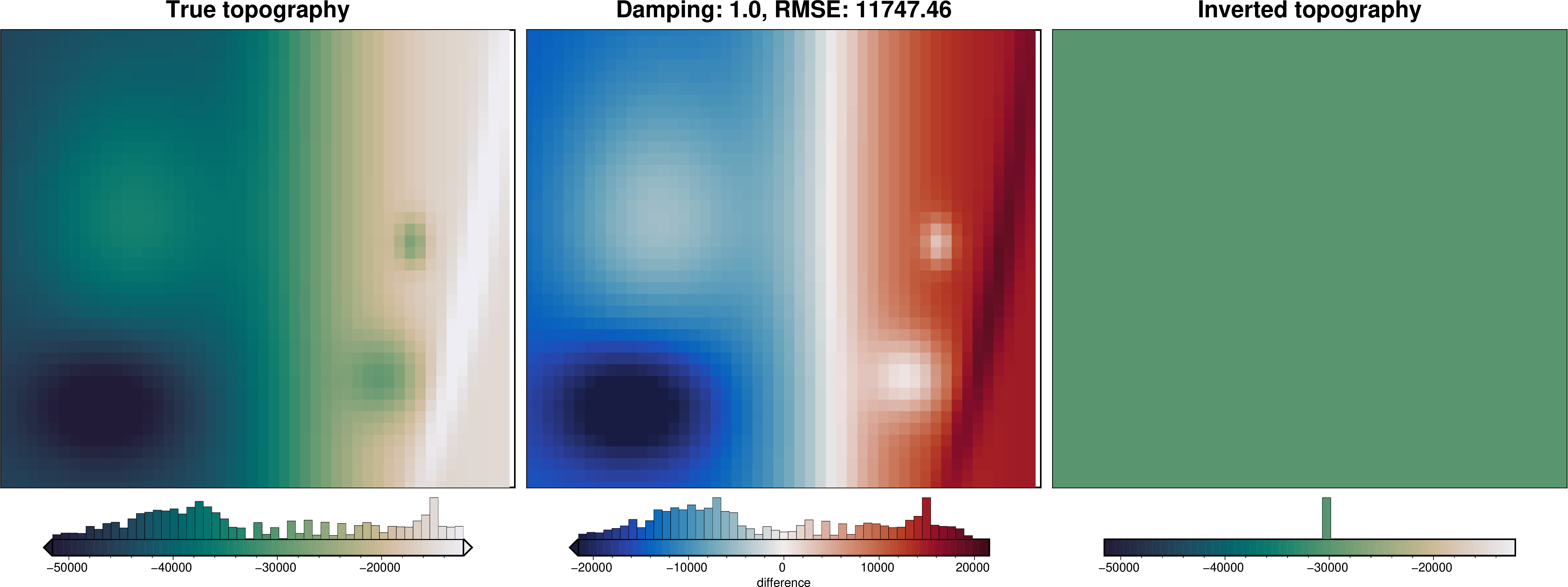

../_images/examples_uieda_et_al_2017_synthetic_22_7.png

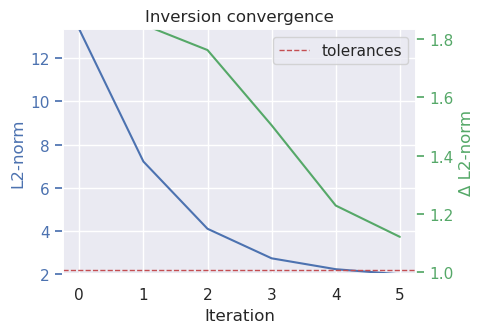

Inversion results#

[16]:

plotting.plot_convergence(
    grav_results,
    parameters,
)

../_images/examples_uieda_et_al_2017_synthetic_24_0.png

[17]:

plotting.plot_inversion_results(
    grav_results,
    topo_results,
    parameters,
    region,
    iters_to_plot=2,
    plot_iter_results=True,
    plot_topo_results=False,
    plot_grav_results=True,
)

../_images/examples_uieda_et_al_2017_synthetic_25_0.png

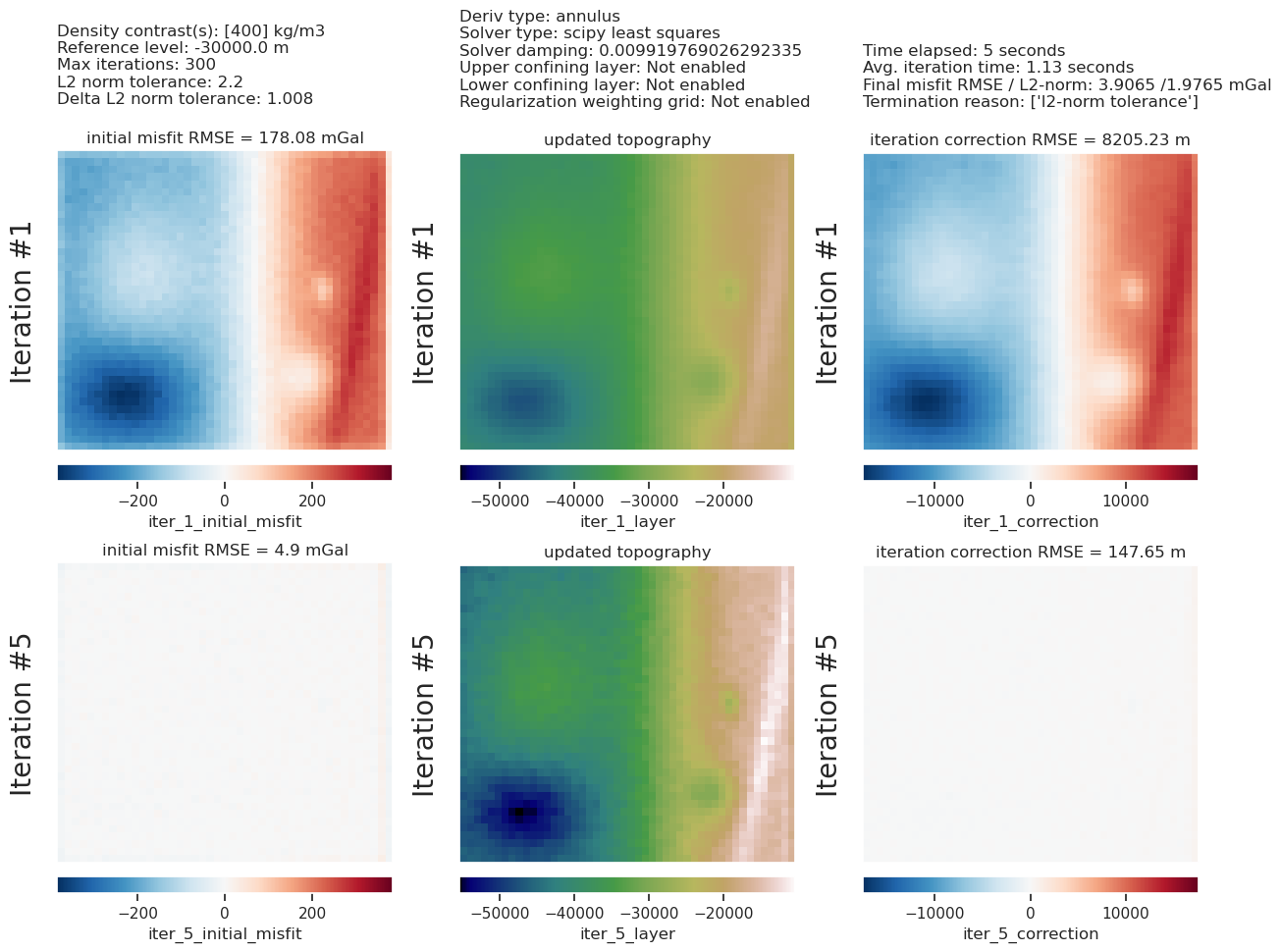

../_images/examples_uieda_et_al_2017_synthetic_25_1.png

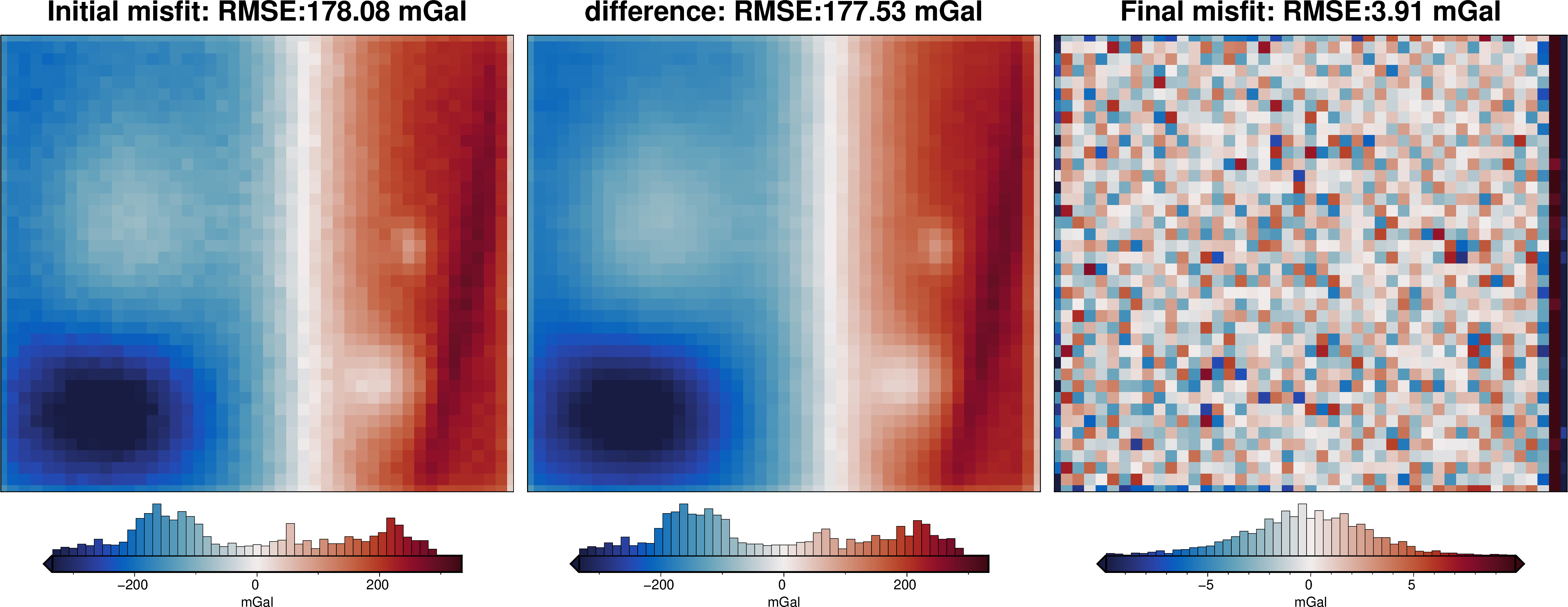

The top plot above compares gravity misfit before and after the inversion. The right subplot is equivalent to Figure 5c in the paper.

The lower plot shows the iteration results of the inversion, and has all the parameter values and metadata at the top. From this, you can see the inversion terminated after 2 iterations due to the inversion reaching the set L2-norm tolerance.

Compare inverted with true topography#

The plot below shows how the inversion performed. In the title, you can see the root mean squared difference (RMSE) between the true moho topography and the inversion topography, and the colorbar histogram shows the distribution of the differences.

The errors appear to be normally distributed around 0, with max and min values of around 2km. Ueida et al. 2017 reported max and min errors of 2.19 and 2.13km, showing the similar effectiveness of these two inversions.

[18]:

final_topography = topo_results.set_index(["northing", "easting"]).to_xarray().topo

_ = polar_utils.grd_compare(
    true_moho,
    final_topography,
    plot=True,
    region=region,
    grid1_name="True topography",
    grid2_name="Inverted topography",
    # robust=True,
    hist=True,
    inset=False,
    verbose="q",
    title="difference",
    grounding_line=False,
    reverse_cpt=True,
    cmap="rain",
)

../_images/examples_uieda_et_al_2017_synthetic_28_0.png

[ ]:
