Estimating a regional field

7. Estimating a regional field#

Here we will present the 4 methods we provide for estimating the regional component of gravity misfit.

7.1. Import packages#

[1]:

%load_ext autoreload
%autoreload 2
import logging

import numpy as np
import pandas as pd
import verde as vd
import xarray as xr
from polartoolkit import maps
from polartoolkit import utils as polar_utils

from invert4geom import plotting, regional, synthetic, uncertainty, utils

# set up logging to see what's going on
logging.basicConfig(level=logging.INFO)

/home/mdtanker/miniforge3/envs/invert4geom/lib/python3.12/site-packages/UQpy/__init__.py:6: UserWarning:

pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.

7.2. Get data#

Here we will load a commonly used synthetic gravity and basement topography model. It includes topography of the Moho and the crystalline basement. The gravity effect from the Moho will represent the regional which we are aiming to isolate. We will forward model the gravity effects of both layers, and add some noise, to create an observed gravity dataset. We will then use a series of point where we know the basement topography to create a starting model, forward calculate its gravity effect, and remove it from the observed gravity to get a gravity misfit. We will then demonstrate the range of techniques implemented within Invert4Geom for isolated the regional component of this gravity misfit.

[2]:

# get topography data
grid = synthetic.load_bishop_model(coarsen_factor=20)

# extract grid spacing and region
spacing, buffer_region, _, _, _ = polar_utils.get_grid_info(
    grid.basement_topo, print_info=True
)

# get topography data
basement_topo = grid.basement_topo
moho_topo = grid.moho_topo

# create an inside region to reduce gravity edge effects
region = vd.pad_region(buffer_region, -spacing * 5)
region

grid spacing: 4000.0 m
grid region: (3900.0, 379900.0, 142900.0, 538900.0)
grid zmin: -9349.98535156
grid zmax: -276.429992676
grid registration: g

[2]:

(23900.0, 359900.0, 162900.0, 518900.0)

7.3. Prism layers#

Create prism layers from the Moho and basement surfaces.

[3]:

# the density contrast is between basement (~2800 kg/m3) and sediment (~2500 kg/m3)
basement_density_contrast = 2800 - 2500

# prisms are created between the mean topography value and the height of the topography
basement_zref = basement_topo.to_numpy().mean()
print(f"true zref: {basement_zref}m")

# prisms above zref have positive density contrast and prisms below zref have negative
# density contrast
density_grid = xr.where(
    basement_topo >= basement_zref,
    basement_density_contrast,
    -basement_density_contrast,
)

# create layer of prisms
basement_prisms = utils.grids_to_prisms(
    basement_topo,
    basement_zref,
    density=density_grid,
)

# the density contrast is between mantle (~3300 kg/m3) and basement rock (~2700 kg/m3)
moho_density_contrast = 3300 - 2800

# prisms are created between the mean topography value and the height of the topography
moho_zref = moho_topo.to_numpy().mean()

# prisms above zref have positive density contrast and prisms below zref have negative
# density contrast
density_grid = xr.where(
    moho_topo >= moho_zref, moho_density_contrast, -moho_density_contrast
)

# create layer of prisms
moho_prisms = utils.grids_to_prisms(
    moho_topo,
    moho_zref,
    density=density_grid,
)

plotting.show_prism_layers(
    [basement_prisms, moho_prisms],
    color_by="density",
    log_scale=False,
    zscale=20,
    backend="static",
)

true zref: -6129.2626799258505m
../_images/tutorial_07_estimating_regional_field_6_1.png

7.4. Forward gravity of prism layers#

Calculate the gravity effect of each of these prism layers

[4]:

# make pandas dataframe of locations to calculate gravity
# this represents the station locations of a gravity survey
# create lists of coordinates
coords = vd.grid_coordinates(
    region=region,
    spacing=spacing,
    pixel_register=False,
    extra_coords=1000,  # survey elevation
)

# grid the coordinates
observations = vd.make_xarray_grid(
    (coords[0], coords[1]),
    data=coords[2],
    data_names="upward",
    dims=("northing", "easting"),
).upward

grav_df = vd.grid_to_table(observations)

# forward gravity of basement prisms
grav_df["basement_grav"] = basement_prisms.prism_layer.gravity(
    coordinates=(
        grav_df.easting,
        grav_df.northing,
        grav_df.upward,
    ),
    field="g_z",
    progressbar=True,
)
# forward gravity of moho prisms
grav_df["moho_grav"] = moho_prisms.prism_layer.gravity(
    coordinates=(
        grav_df.easting,
        grav_df.northing,
        grav_df.upward,
    ),
    field="g_z",
    progressbar=True,
)
grav_df.describe()

[4]:
northing easting upward basement_grav moho_grav
count 7650.000000 7650.000000 7650.0 7650.000000 7650.000000
mean 340900.000000 191900.000000 1000.0 0.302843 0.854428
std 103923.425856 98149.168359 0.0 23.604988 27.683439
min 162900.000000 23900.000000 1000.0 -33.028677 -62.319646
25% 250900.000000 107900.000000 1000.0 -18.377589 -17.933769
50% 340900.000000 191900.000000 1000.0 -4.927040 9.034686
75% 430900.000000 275900.000000 1000.0 21.431379 23.718316
max 518900.000000 359900.000000 1000.0 58.138421 39.560469
[5]:

# add offset to the moho gravity
grav_df["moho_grav"] += 100

grav_df["grav"] = grav_df.basement_grav + grav_df.moho_grav
grav_df.describe()

[5]:
northing easting upward basement_grav moho_grav grav
count 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 7650.000000
mean 340900.000000 191900.000000 1000.0 0.302843 100.854428 101.157271
std 103923.425856 98149.168359 0.0 23.604988 27.683439 9.703771
min 162900.000000 23900.000000 1000.0 -33.028677 37.680354 75.617509
25% 250900.000000 107900.000000 1000.0 -18.377589 82.066231 96.218487
50% 340900.000000 191900.000000 1000.0 -4.927040 109.034686 102.149812
75% 430900.000000 275900.000000 1000.0 21.431379 123.718316 106.787344
max 518900.000000 359900.000000 1000.0 58.138421 139.560469 126.329916
[6]:

# contaminate gravity with 2 mGal of random noise
grav_df["gravity_anomaly"], stddev = synthetic.contaminate(
    grav_df.grav,
    stddev=2,
    percent=False,
    seed=0,
)
grav_df["uncert"] = stddev

# grid the contaminated gravity
grav_grid = grav_df.set_index(["northing", "easting"]).to_xarray()

INFO:invert4geom:Standard deviation used for noise: [2.0]

[7]:

fig = maps.plot_grd(
    basement_topo,
    region=region,
    fig_height=10,
    title="Basement topography",
    reverse_cpt=True,
    cmap="rain",
    cbar_label="m",
    hist=True,
)

fig = maps.plot_grd(
    moho_topo,
    region=region,
    fig=fig,
    origin_shift="x",
    fig_height=10,
    title="Moho topography",
    reverse_cpt=True,
    cmap="rain",
    cbar_label="m",
    hist=True,
)

fig = maps.plot_grd(
    grav_grid.basement_grav,
    fig=fig,
    origin_shift="both",
    xshift_amount=-1.5,
    fig_height=10,
    title="Basement gravity",
    cmap="viridis",
    cbar_label="mGal",
    hist=True,
)

fig = maps.plot_grd(
    grav_grid.moho_grav,
    fig=fig,
    origin_shift="x",
    fig_height=10,
    title="Moho gravity",
    cmap="viridis",
    cbar_label="mGal",
    hist=True,
)

fig = maps.plot_grd(
    grav_grid.gravity_anomaly,
    fig=fig,
    origin_shift="x",
    fig_height=10,
    title="Observed gravity",
    cmap="viridis",
    cbar_label="mGal",
    hist=True,
)

fig.show()

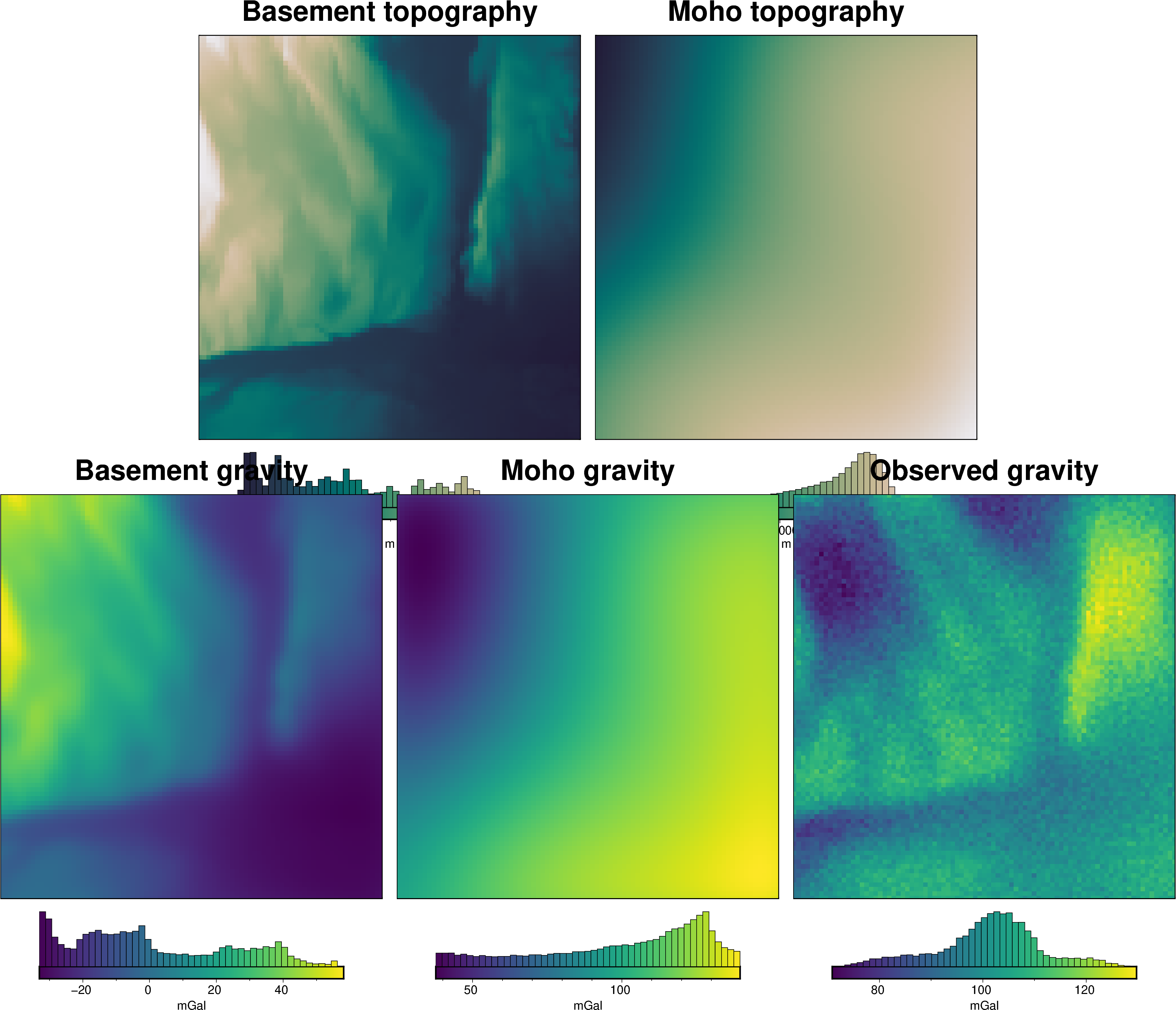

../_images/tutorial_07_estimating_regional_field_11_0.png

7.5. Create “a-priori” basement measurements#

These points represent locations where we know the basement elevation, for example from drill holes, seismic surveys, or outcropping basement.

[8]:

# create 10 random point within the outcropping basement region
num_constraints = 15
coords = vd.scatter_points(
    region=region,
    size=num_constraints,
    random_state=22,
)
constraint_points = pd.DataFrame(data={"easting": coords[0], "northing": coords[1]})

# sample true topography at these points
constraint_points = utils.sample_grids(
    constraint_points,
    basement_topo,
    "true_upward",
)

constraint_points["upward"] = constraint_points.true_upward

# re-sample depths with uncertainty to emulate measurement errors
# set each points uncertainty equal to 2% of depth
uncert = np.abs(0.02 * constraint_points.upward)
constraint_points.loc[constraint_points.index, "uncert"] = uncert

constraint_points = uncertainty.randomly_sample_data(
    seed=0,
    data_df=constraint_points,
    data_col="upward",
    uncert_col="uncert",
)

# create weights column
constraint_points["weight"] = 1 / (constraint_points.uncert**2)

constraint_points.head()

[8]:
easting northing true_upward upward uncert weight
0 93942.740553 165086.148419 -6166.691339 -6151.184549 123.333827 0.000066
1 185744.836752 437747.618234 -5230.910817 -5244.731393 104.618216 0.000091
2 165200.779866 503888.251841 -4551.466895 -4493.169645 91.029338 0.000121
3 312585.151503 412789.886738 -6178.090981 -6165.129332 123.561820 0.000065
4 81410.282014 268837.863004 -4562.000830 -4610.875312 91.240017 0.000120

7.6. Create starting basement model#

Here we interpolate the a-priori point measurements to create a starting model of basement topography. We then use this to create a starting prism model.

[9]:

# grid the sampled values using verde
starting_topography = utils.create_topography(
    method="splines",
    region=buffer_region,
    spacing=spacing,
    constraints_df=constraint_points,
    dampings=[*list(np.logspace(-60, 0, 100)), None],
    weights=constraint_points.weight,
)

INFO:invert4geom:Best SplineCV score: 0.40003191692663587
INFO:invert4geom:Best damping: 1e-60
WARNING:invert4geom:Best damping value (1e-60) is at the limit of provided values (1e-60, 1.0) and thus is likely not a global minimum, expand the range of values test to ensure the best parameter value value is found.

[10]:

_ = polar_utils.grd_compare(
    basement_topo,
    starting_topography,
    grid1_name="True topography",
    grid2_name="Starting topography",
    robust=True,
    hist=True,
    inset=False,
    title="difference",
    grounding_line=False,
    reverse_cpt=True,
    cmap="rain",
    points=constraint_points,
    points_style="x.3c",
)

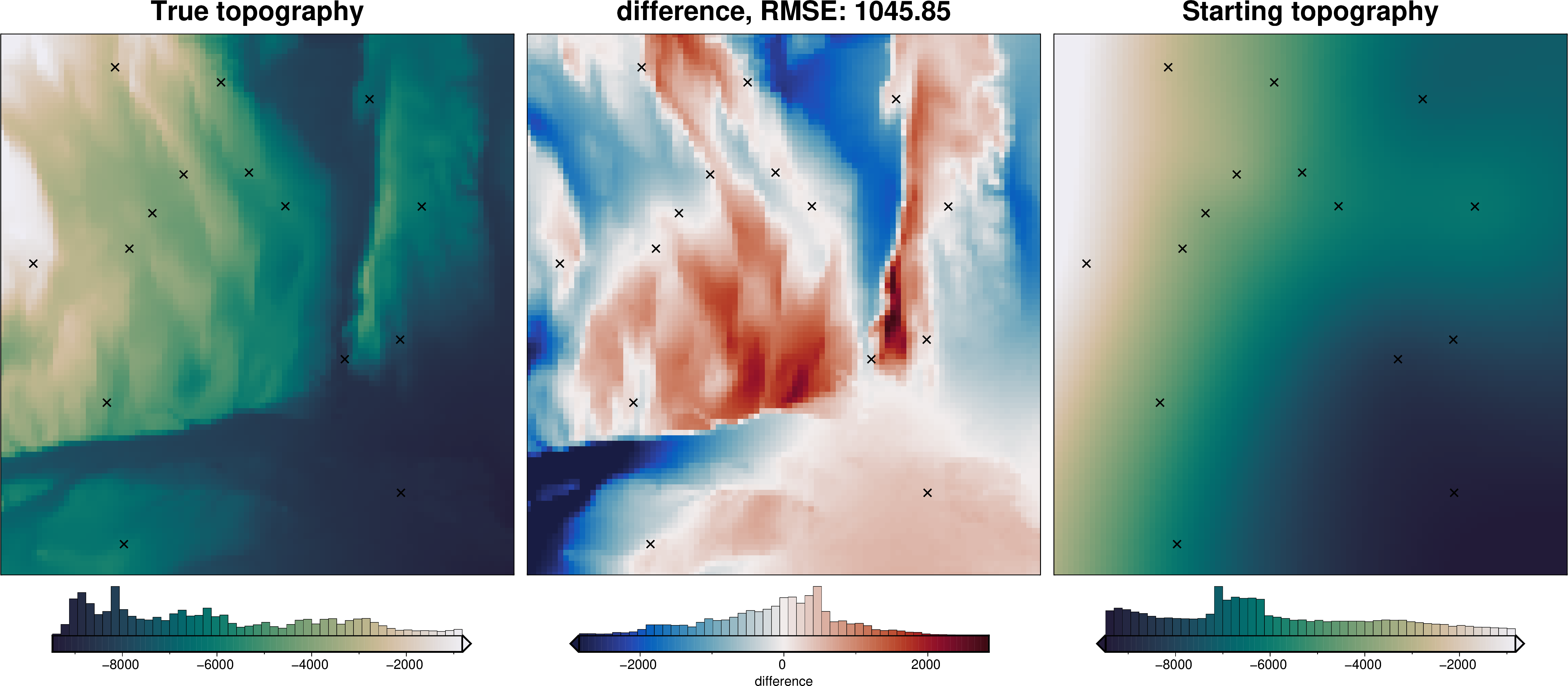

../_images/tutorial_07_estimating_regional_field_16_0.png
[11]:

zref = basement_zref
density_contrast = basement_density_contrast

density_grid = xr.where(
    starting_topography >= zref, density_contrast, -density_contrast
)

# create layer of prisms
starting_prisms = utils.grids_to_prisms(
    starting_topography,
    zref,
    density=density_grid,
)

7.7. Gravity misfit#

All inversions in Invert4Geom are based on a gravity misfit, not a gravity anomaly. This means before the inversion, we must create a starting prism model, forward model it’s gravity effect, remove it from the gravity anomaly, and get a gravity misfit.

7.7.1. Forward gravity of starting prism layer#

[12]:

# calculate forward gravity of starting prism layer
grav_df["starting_gravity"] = starting_prisms.prism_layer.gravity(
    coordinates=(
        grav_df.easting,
        grav_df.northing,
        grav_df.upward,
    ),
    field="g_z",
    progressbar=True,
)

# calculate the true residual misfit
grav_df["true_res"] = (
    grav_df.gravity_anomaly - grav_df.starting_gravity - grav_df.moho_grav
)

grav_df.describe()

[12]:
northing easting upward basement_grav moho_grav grav gravity_anomaly uncert starting_gravity true_res
count 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 7650.000000 7650.000000 7650.0 7650.000000 7650.000000
mean 340900.000000 191900.000000 1000.0 0.302843 100.854428 101.157271 101.157271 2.0 1.548577 -1.245734
std 103923.425856 98149.168359 0.0 23.604988 27.683439 9.703771 9.919851 0.0 24.926461 9.334160
min 162900.000000 23900.000000 1000.0 -33.028677 37.680354 75.617509 70.861220 2.0 -36.414267 -39.698170
25% 250900.000000 107900.000000 1000.0 -18.377589 82.066231 96.218487 96.092524 2.0 -17.408451 -6.458428
50% 340900.000000 191900.000000 1000.0 -4.927040 109.034686 102.149812 102.057202 2.0 -3.040309 -0.024210
75% 430900.000000 275900.000000 1000.0 21.431379 123.718316 106.787344 107.006336 2.0 19.823536 4.763396
max 518900.000000 359900.000000 1000.0 58.138421 139.560469 126.329916 129.736453 2.0 59.698559 23.115665

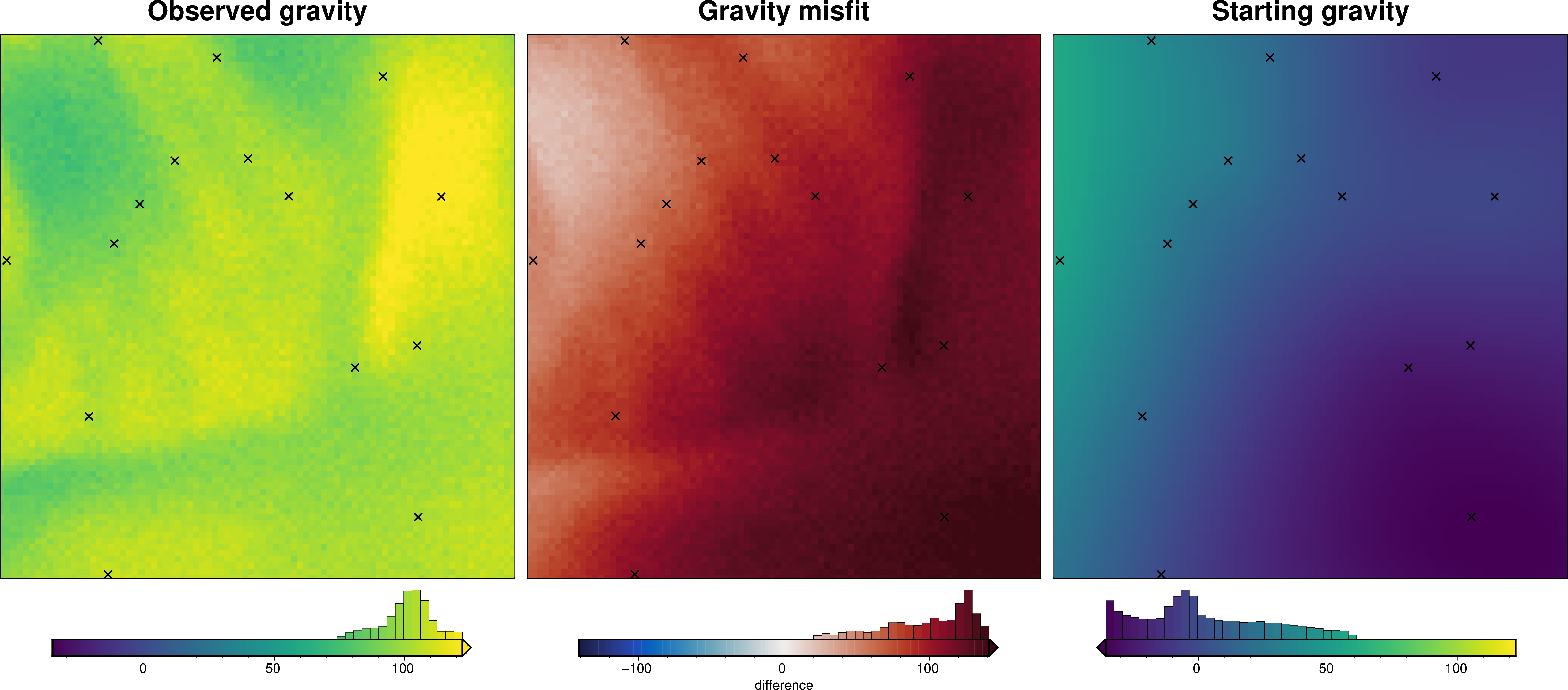

[13]:

# grid the results
grav_grid = grav_df.set_index(["northing", "easting"]).to_xarray()

_ = polar_utils.grd_compare(
    grav_grid.gravity_anomaly,
    grav_grid.starting_gravity,
    grid1_name="Observed gravity",
    grid2_name="Starting gravity",
    robust=True,
    hist=True,
    inset=False,
    title="Gravity misfit",
    rmse_in_title=False,
    grounding_line=False,
    points=constraint_points,
    points_style="x.3c",
)
../_images/tutorial_07_estimating_regional_field_21_0.png

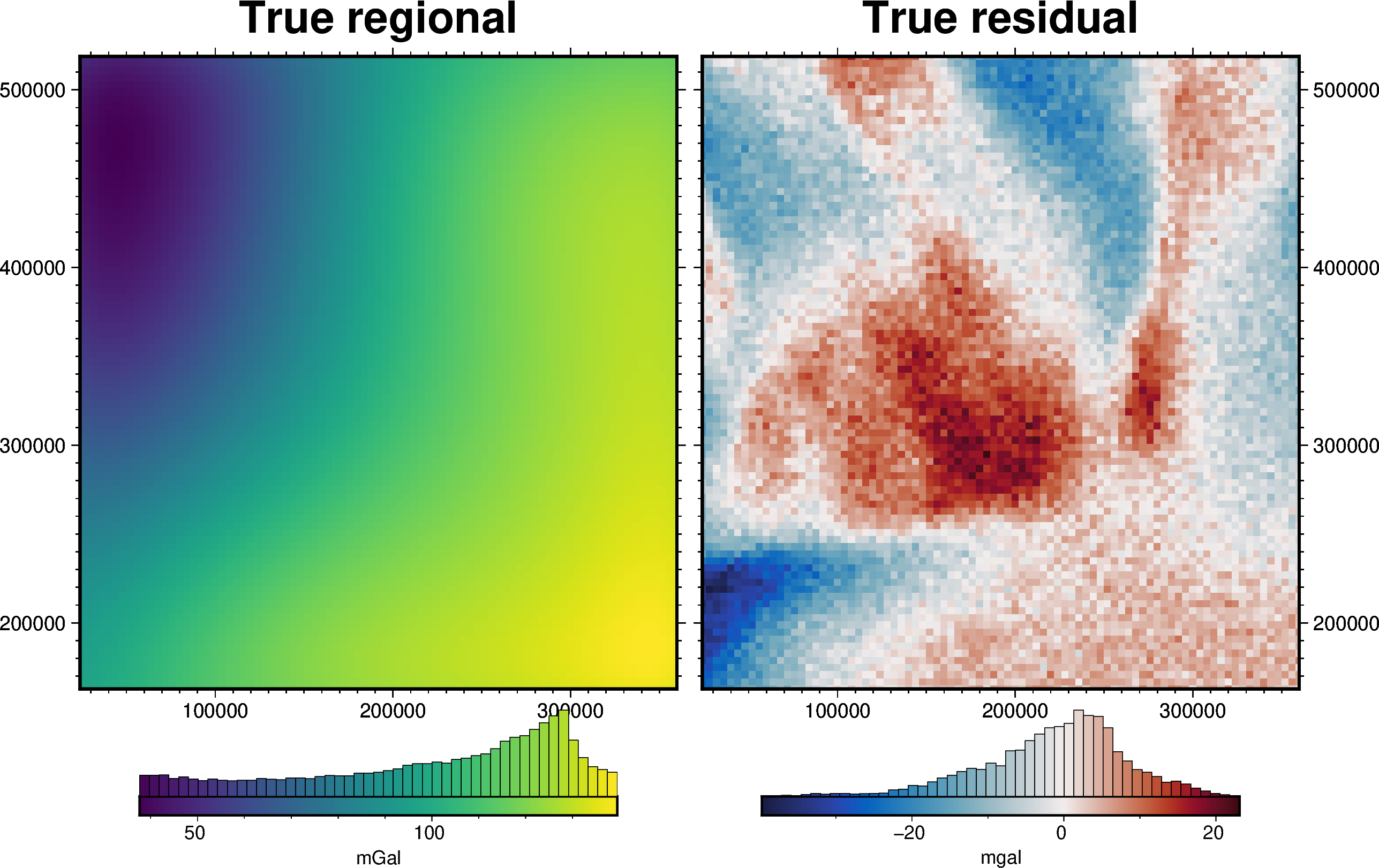

[14]:

fig = maps.plot_grd(
    grav_grid.moho_grav,
    fig_height=10,
    title="True regional",
    cbar_label="mGal",
    hist=True,
    frame=["nSWe", "xaf10000", "yaf10000"],
)

fig = maps.plot_grd(
    grav_grid.true_res,
    fig=fig,
    cmap="balance+h0",
    origin_shift="x",
    fig_height=10,
    title="True residual",
    cbar_label="mgal",
    hist=True,
    frame=["nSwE", "xaf10000", "yaf10000"],
)

fig.show()
../_images/tutorial_07_estimating_regional_field_22_0.png

7.8. True-Estimated regional plotting function#

[15]:

def regional_comparison(df, regional_column):
    # grid the results
    grav_grid = df.set_index(["northing", "easting"]).to_xarray()

    # compare with true regional
    _ = polar_utils.grd_compare(
        grav_grid.moho_grav,
        grav_grid[regional_column],
        robust=True,
        grid1_name="True regional field",
        grid2_name="Estimated regional field",
        hist=True,
        inset=False,
        title="difference",
        grounding_line=False,
        points=constraint_points,
        points_style="x.3c",
    )
    # compare with true residual
    _ = polar_utils.grd_compare(
        grav_grid.true_res,
        grav_grid.res,
        cmap="balance+h0",
        robust=True,
        grid1_name="True residual field",
        grid2_name="Estimated residual field",
        hist=True,
        inset=False,
        title="difference",
        grounding_line=False,
        points=constraint_points,
        points_style="x.3c",
    )

7.9. Save data so other notebooks can use it later#

[16]:

# save gravity dataframe
grav_df.to_csv("../tmp/regional_sep_grav_df.csv")

# save constraint points
constraint_points.to_csv("../tmp/regional_sep_constraint_points.csv")

# merge and save grids
ds = xr.merge(
    [
        basement_topo.rename("basement"),
        moho_topo.rename("moho"),
        starting_topography.rename("starting"),
    ]
)
ds.drop_attrs().to_netcdf("../tmp/regional_sep_grids.nc")

starting_prisms.to_netcdf("../tmp/regional_sep_starting_prisms.nc")

7.10. Regional estimation methods#

Now that we have a gravity misfit (difference between the true observed gravity and the forward calculated gravity from our knowledge of the topography), we can try and separate out the portion of the misfit not related to our lack of understanding of the topography. This is the regional misfit and in this case is resulting from our lower layer of prisms.

There are 4 main techniques: a constant value for the regional field, filtering the misfit to get the regional, fitting a polynomial trend to the misfit to get the regional, calculating the long-wavelength component of the misfit using the equivalent sources method, and finding a regional field by using point of known elevation for the layer of interest (constraint point minimization).

[17]:

grav_df.describe()

[17]:
northing easting upward basement_grav moho_grav grav gravity_anomaly uncert starting_gravity true_res
count 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 7650.000000 7650.000000 7650.0 7650.000000 7650.000000
mean 340900.000000 191900.000000 1000.0 0.302843 100.854428 101.157271 101.157271 2.0 1.548577 -1.245734
std 103923.425856 98149.168359 0.0 23.604988 27.683439 9.703771 9.919851 0.0 24.926461 9.334160
min 162900.000000 23900.000000 1000.0 -33.028677 37.680354 75.617509 70.861220 2.0 -36.414267 -39.698170
25% 250900.000000 107900.000000 1000.0 -18.377589 82.066231 96.218487 96.092524 2.0 -17.408451 -6.458428
50% 340900.000000 191900.000000 1000.0 -4.927040 109.034686 102.149812 102.057202 2.0 -3.040309 -0.024210
75% 430900.000000 275900.000000 1000.0 21.431379 123.718316 106.787344 107.006336 2.0 19.823536 4.763396
max 518900.000000 359900.000000 1000.0 58.138421 139.560469 126.329916 129.736453 2.0 59.698559 23.115665

7.10.1. Constant value#

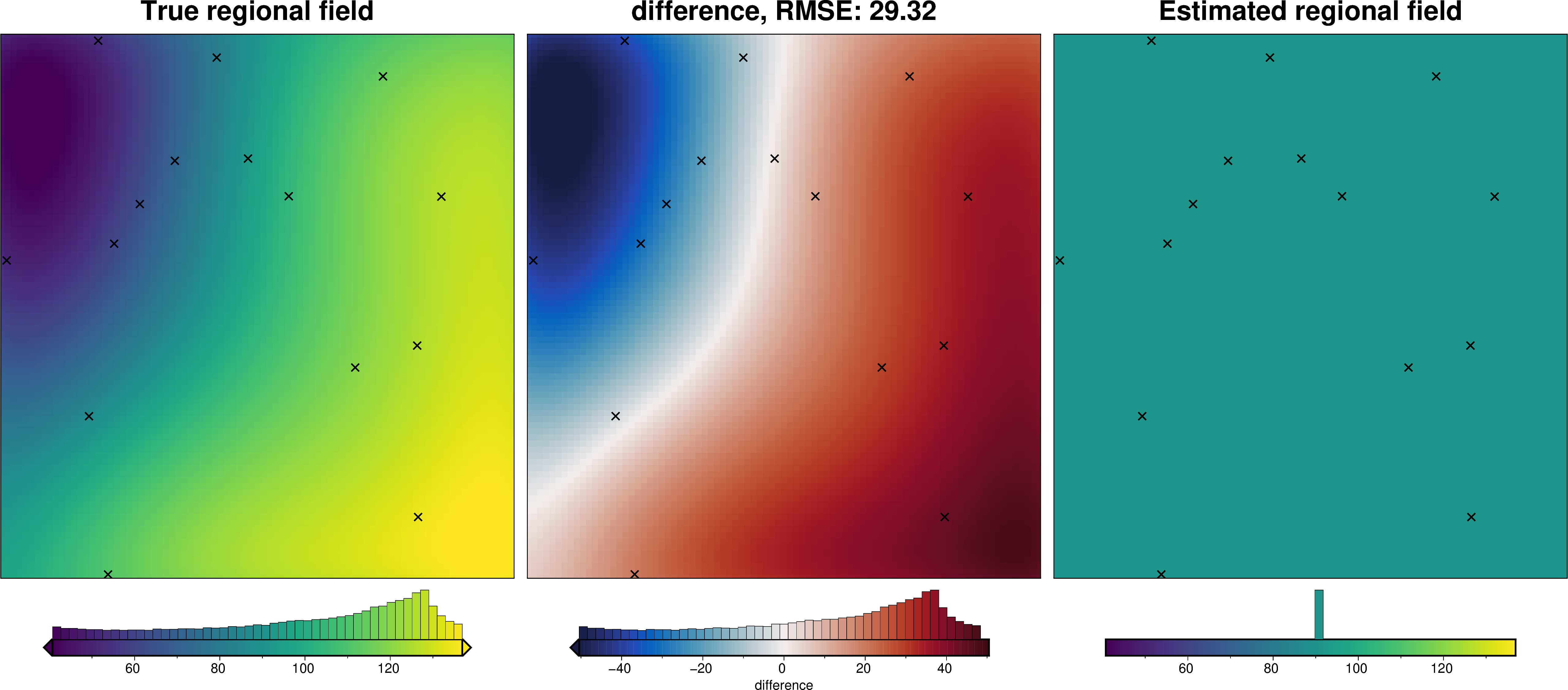

7.10.1.1. 1) Constant value equal to average value of gravity misfit at constraint points#

[18]:

# estimate regional with the mean misfit at constraints
grav_df = regional.regional_constant(
    grav_df=grav_df,
    constraints_df=constraint_points,
)
grav_df["constant_reg"] = grav_df.reg
grav_df["constant_res"] = grav_df.res

regional_comparison(grav_df, "constant_reg")

grav_df.describe()

INFO:invert4geom:using median gravity misfit of constraint points for regional field: 91.19169859399041 mGal
../_images/tutorial_07_estimating_regional_field_30_1.png
../_images/tutorial_07_estimating_regional_field_30_2.png
[18]:
northing easting upward basement_grav moho_grav grav gravity_anomaly uncert starting_gravity true_res misfit reg res constant_reg constant_res
count 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 7650.000000 7.650000e+03 7650.000000 7.650000e+03 7650.000000
mean 340900.000000 191900.000000 1000.0 0.302843 100.854428 101.157271 101.157271 2.0 1.548577 -1.245734 99.608694 9.119170e+01 8.416995 9.119170e+01 8.416995
std 103923.425856 98149.168359 0.0 23.604988 27.683439 9.703771 9.919851 0.0 24.926461 9.334160 30.581609 1.421178e-14 30.581609 1.421178e-14 30.581609
min 162900.000000 23900.000000 1000.0 -33.028677 37.680354 75.617509 70.861220 2.0 -36.414267 -39.698170 17.942842 9.119170e+01 -73.248856 9.119170e+01 -73.248856
25% 250900.000000 107900.000000 1000.0 -18.377589 82.066231 96.218487 96.092524 2.0 -17.408451 -6.458428 78.143138 9.119170e+01 -13.048560 9.119170e+01 -13.048560
50% 340900.000000 191900.000000 1000.0 -4.927040 109.034686 102.149812 102.057202 2.0 -3.040309 -0.024210 107.150139 9.119170e+01 15.958441 9.119170e+01 15.958441
75% 430900.000000 275900.000000 1000.0 21.431379 123.718316 106.787344 107.006336 2.0 19.823536 4.763396 124.912841 9.119170e+01 33.721142 9.119170e+01 33.721142
max 518900.000000 359900.000000 1000.0 58.138421 139.560469 126.329916 129.736453 2.0 59.698559 23.115665 148.090389 9.119170e+01 56.898690 9.119170e+01 56.898690

7.10.1.2. 2) apply a custom constant value#

[19]:

# estimate regional with the custom constant value
grav_df = regional.regional_constant(
    grav_df=grav_df,
    constant=75,
)
grav_df["constant_custom_reg"] = grav_df.reg
grav_df["constant_custom_res"] = grav_df.res

regional_comparison(grav_df, "constant_custom_reg")

grav_df.describe()

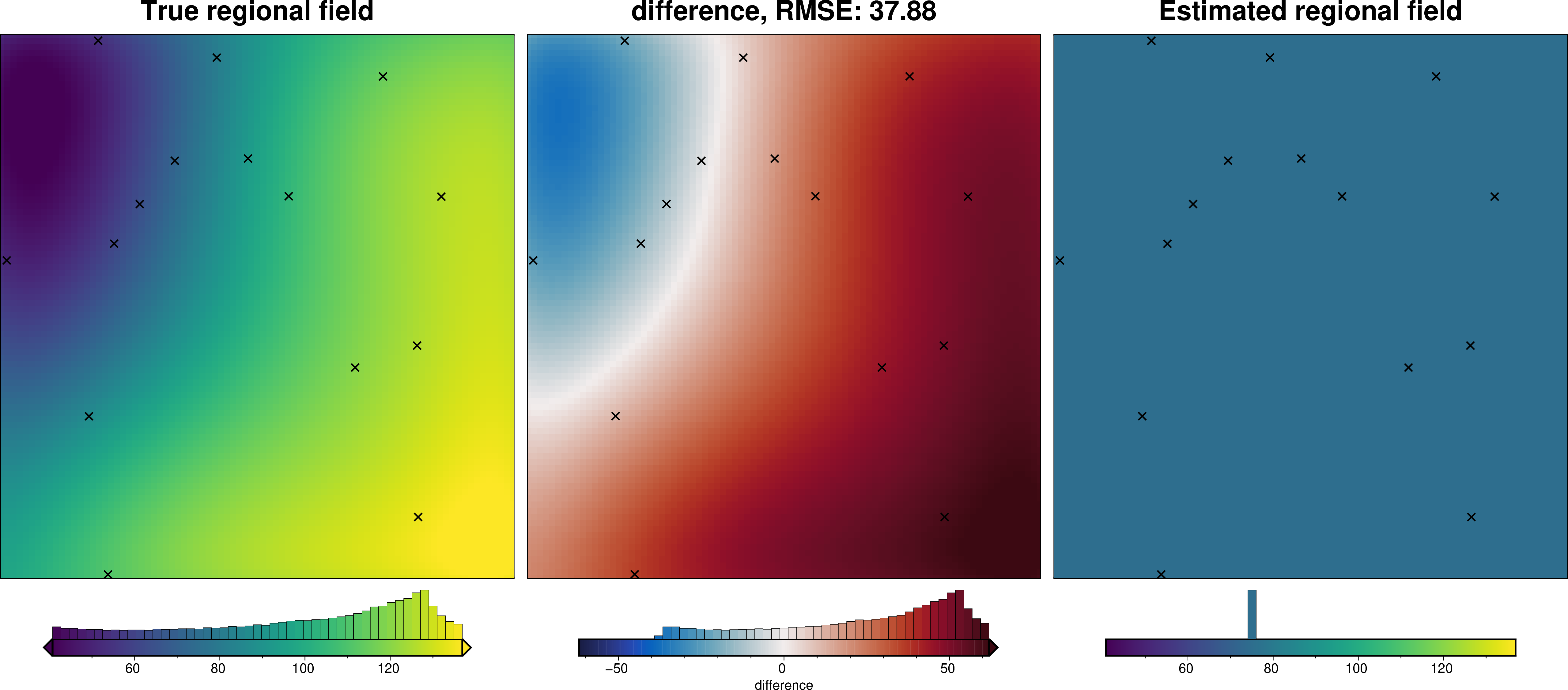

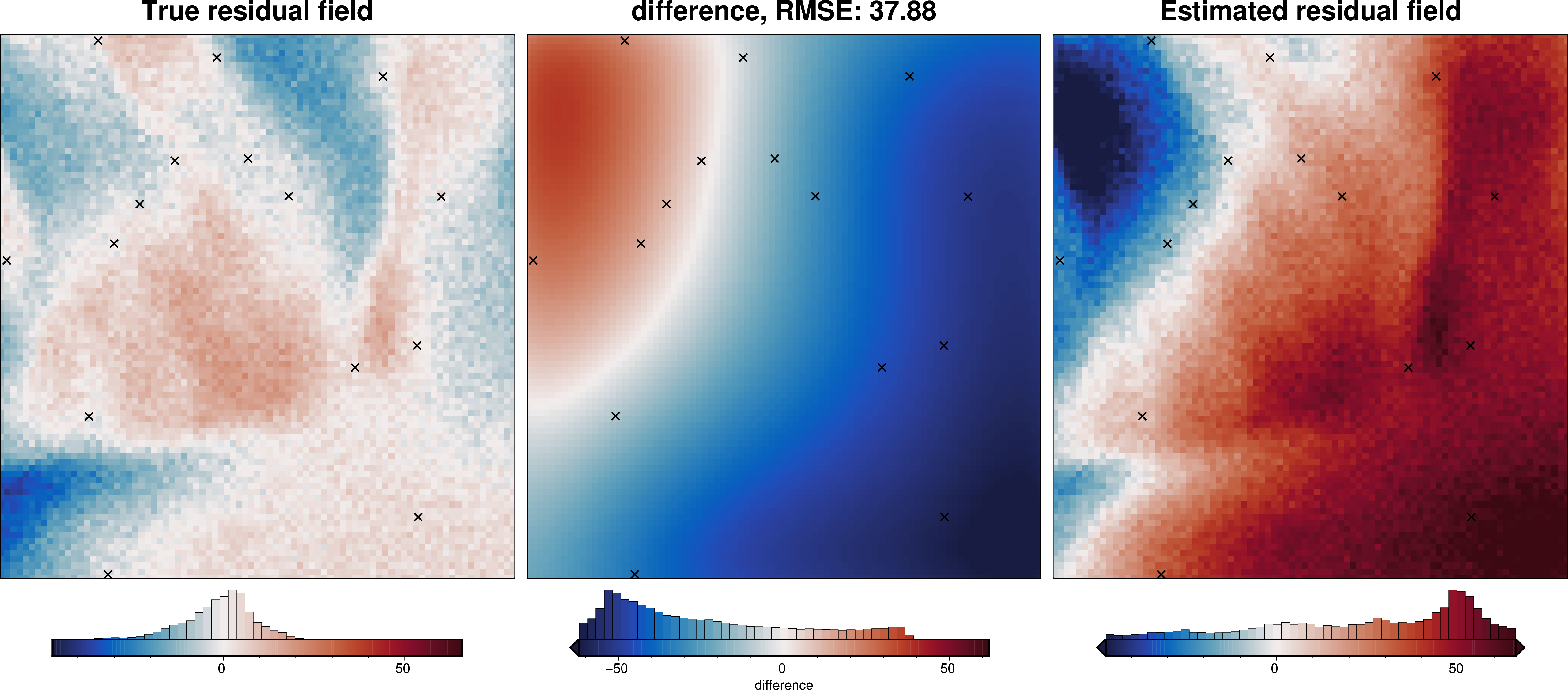

../_images/tutorial_07_estimating_regional_field_32_0.png
../_images/tutorial_07_estimating_regional_field_32_1.png
[19]:
northing easting upward basement_grav moho_grav grav gravity_anomaly uncert starting_gravity true_res misfit reg res constant_reg constant_res constant_custom_reg constant_custom_res
count 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 7650.000000 7650.0 7650.000000 7.650000e+03 7650.000000 7650.0 7650.000000
mean 340900.000000 191900.000000 1000.0 0.302843 100.854428 101.157271 101.157271 2.0 1.548577 -1.245734 99.608694 75.0 24.608694 9.119170e+01 8.416995 75.0 24.608694
std 103923.425856 98149.168359 0.0 23.604988 27.683439 9.703771 9.919851 0.0 24.926461 9.334160 30.581609 0.0 30.581609 1.421178e-14 30.581609 0.0 30.581609
min 162900.000000 23900.000000 1000.0 -33.028677 37.680354 75.617509 70.861220 2.0 -36.414267 -39.698170 17.942842 75.0 -57.057158 9.119170e+01 -73.248856 75.0 -57.057158
25% 250900.000000 107900.000000 1000.0 -18.377589 82.066231 96.218487 96.092524 2.0 -17.408451 -6.458428 78.143138 75.0 3.143138 9.119170e+01 -13.048560 75.0 3.143138
50% 340900.000000 191900.000000 1000.0 -4.927040 109.034686 102.149812 102.057202 2.0 -3.040309 -0.024210 107.150139 75.0 32.150139 9.119170e+01 15.958441 75.0 32.150139
75% 430900.000000 275900.000000 1000.0 21.431379 123.718316 106.787344 107.006336 2.0 19.823536 4.763396 124.912841 75.0 49.912841 9.119170e+01 33.721142 75.0 49.912841
max 518900.000000 359900.000000 1000.0 58.138421 139.560469 126.329916 129.736453 2.0 59.698559 23.115665 148.090389 75.0 73.090389 9.119170e+01 56.898690 75.0 73.090389

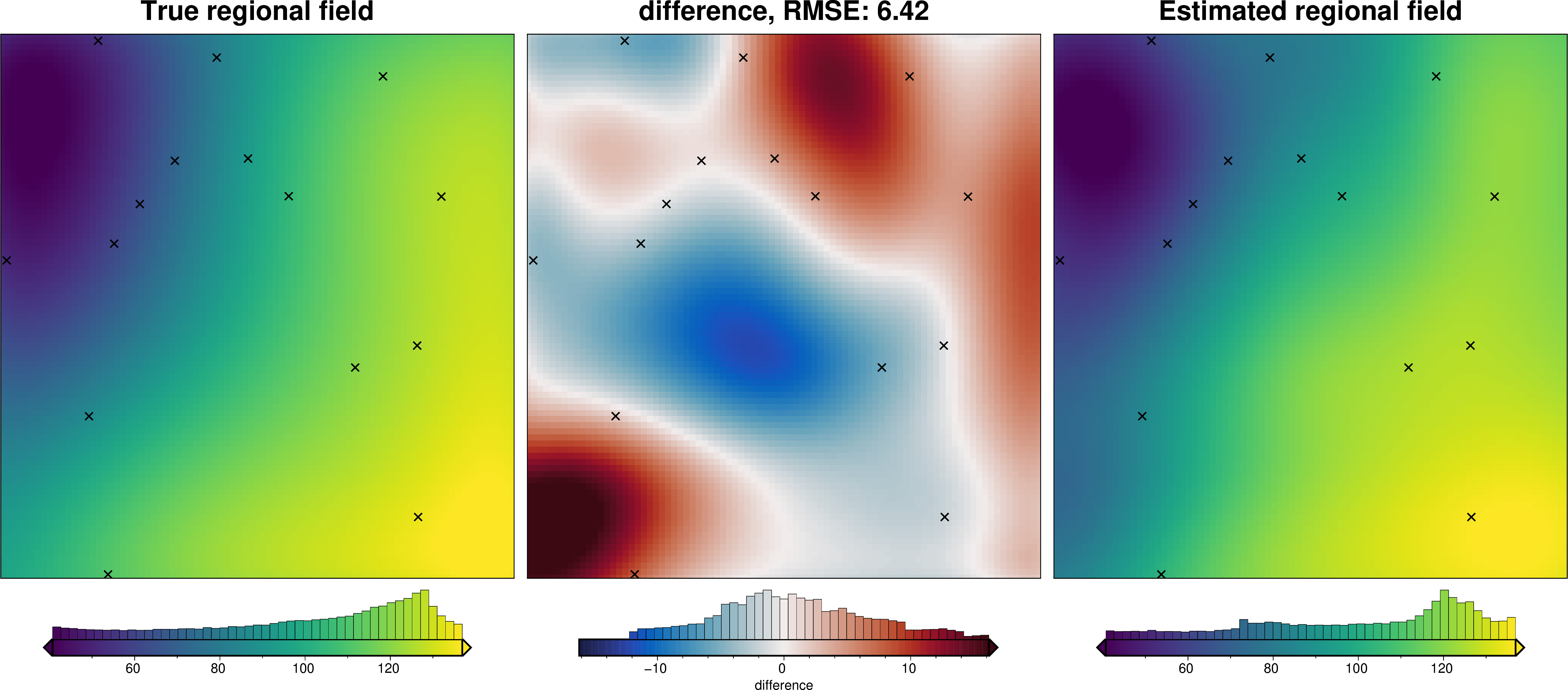

7.10.2. Filter#

[20]:

# estimate regional with a 200km low pass filter
grav_df = regional.regional_filter(
    grav_df=grav_df,
    filter_width=200e3,
)
grav_df["filter_reg"] = grav_df.reg
grav_df["filter_res"] = grav_df.res

regional_comparison(grav_df, "filter_reg")

grav_df.describe()

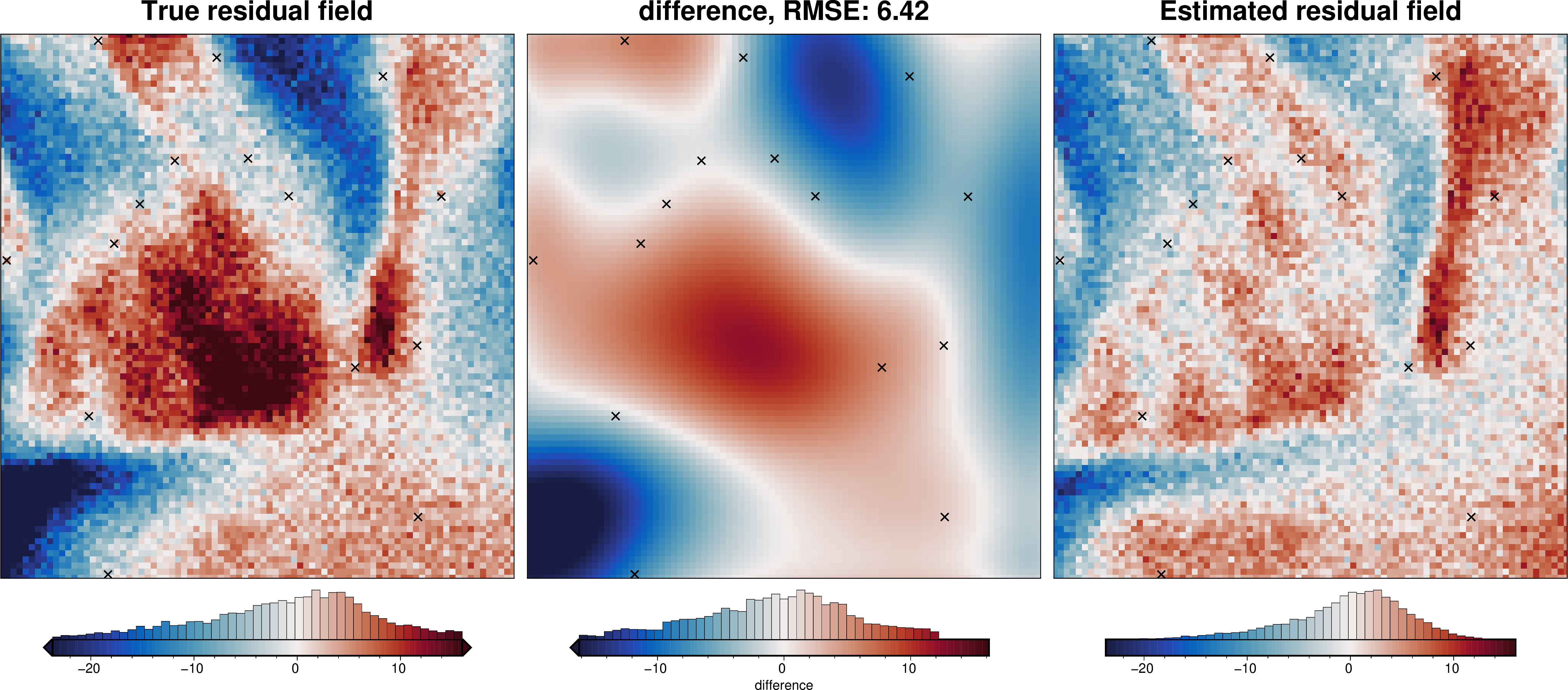

../_images/tutorial_07_estimating_regional_field_34_0.png
../_images/tutorial_07_estimating_regional_field_34_1.png
[20]:
northing easting upward basement_grav moho_grav grav gravity_anomaly uncert starting_gravity true_res misfit res constant_reg constant_res constant_custom_reg constant_custom_res reg filter_reg filter_res
count 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 7650.000000 7650.000000 7.650000e+03 7650.000000 7650.0 7650.000000 7650.000000 7650.000000 7650.000000
mean 340900.000000 191900.000000 1000.0 0.302843 100.854428 101.157271 101.157271 2.0 1.548577 -1.245734 99.608694 -0.220595 9.119170e+01 8.416995 75.0 24.608694 99.829289 99.829289 -0.220595
std 103923.425856 98149.168359 0.0 23.604988 27.683439 9.703771 9.919851 0.0 24.926461 9.334160 30.581609 5.642272 1.421178e-14 30.581609 0.0 30.581609 27.063857 27.063857 5.642272
min 162900.000000 23900.000000 1000.0 -33.028677 37.680354 75.617509 70.861220 2.0 -36.414267 -39.698170 17.942842 -22.524520 9.119170e+01 -73.248856 75.0 -57.057158 36.812191 36.812191 -22.524520
25% 250900.000000 107900.000000 1000.0 -18.377589 82.066231 96.218487 96.092524 2.0 -17.408451 -6.458428 78.143138 -3.286951 9.119170e+01 -13.048560 75.0 3.143138 79.328207 79.328207 -3.286951
50% 340900.000000 191900.000000 1000.0 -4.927040 109.034686 102.149812 102.057202 2.0 -3.040309 -0.024210 107.150139 0.521776 9.119170e+01 15.958441 75.0 32.150139 107.365013 107.365013 0.521776
75% 430900.000000 275900.000000 1000.0 21.431379 123.718316 106.787344 107.006336 2.0 19.823536 4.763396 124.912841 3.596585 9.119170e+01 33.721142 75.0 49.912841 121.943846 121.943846 3.596585
max 518900.000000 359900.000000 1000.0 58.138421 139.560469 126.329916 129.736453 2.0 59.698559 23.115665 148.090389 15.483262 9.119170e+01 56.898690 75.0 73.090389 137.738632 137.738632 15.483262

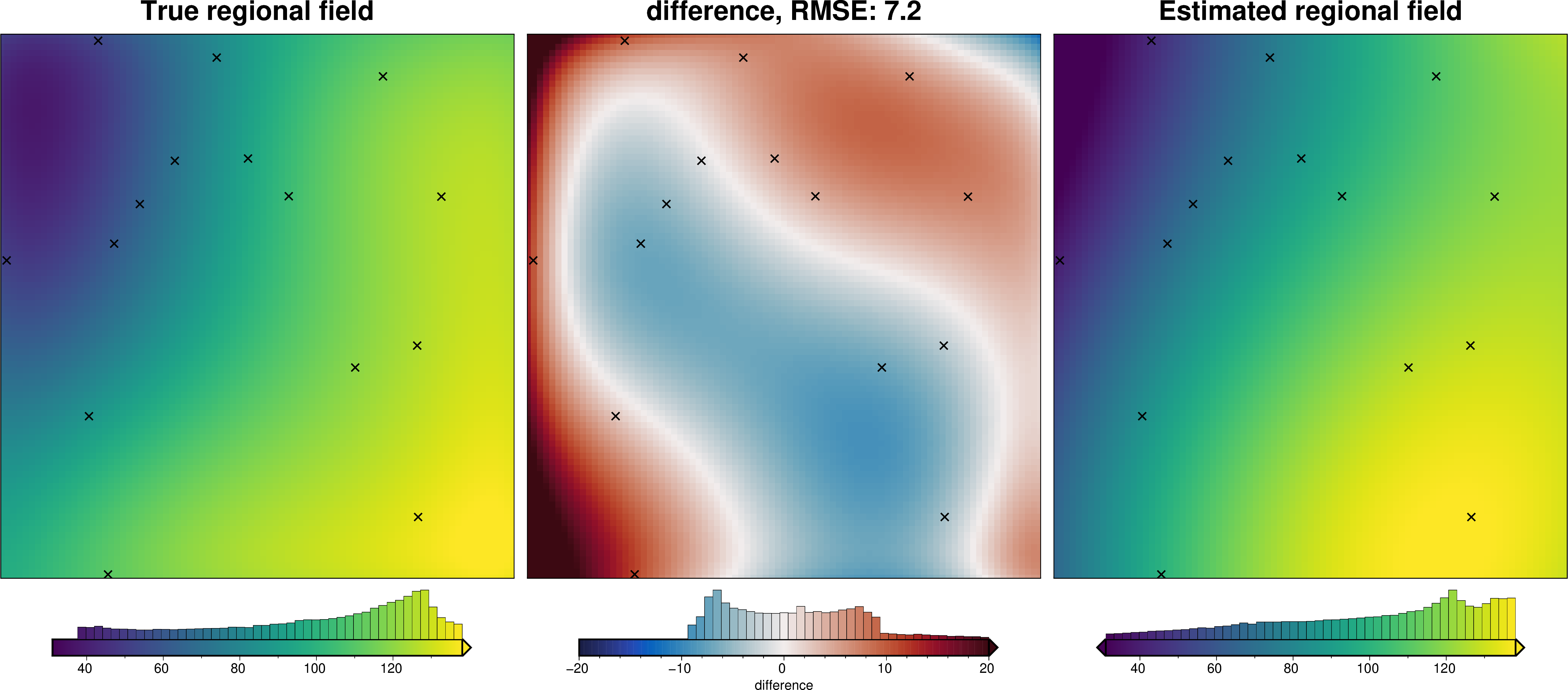

7.10.3. Trend#

[21]:

# estimate regional with fitting a 3rd order trend
grav_df = regional.regional_trend(
    grav_df=grav_df,
    trend=3,
)
grav_df["trend_reg"] = grav_df.reg
grav_df["trend_res"] = grav_df.res

regional_comparison(grav_df, "trend_reg")

grav_df.describe()

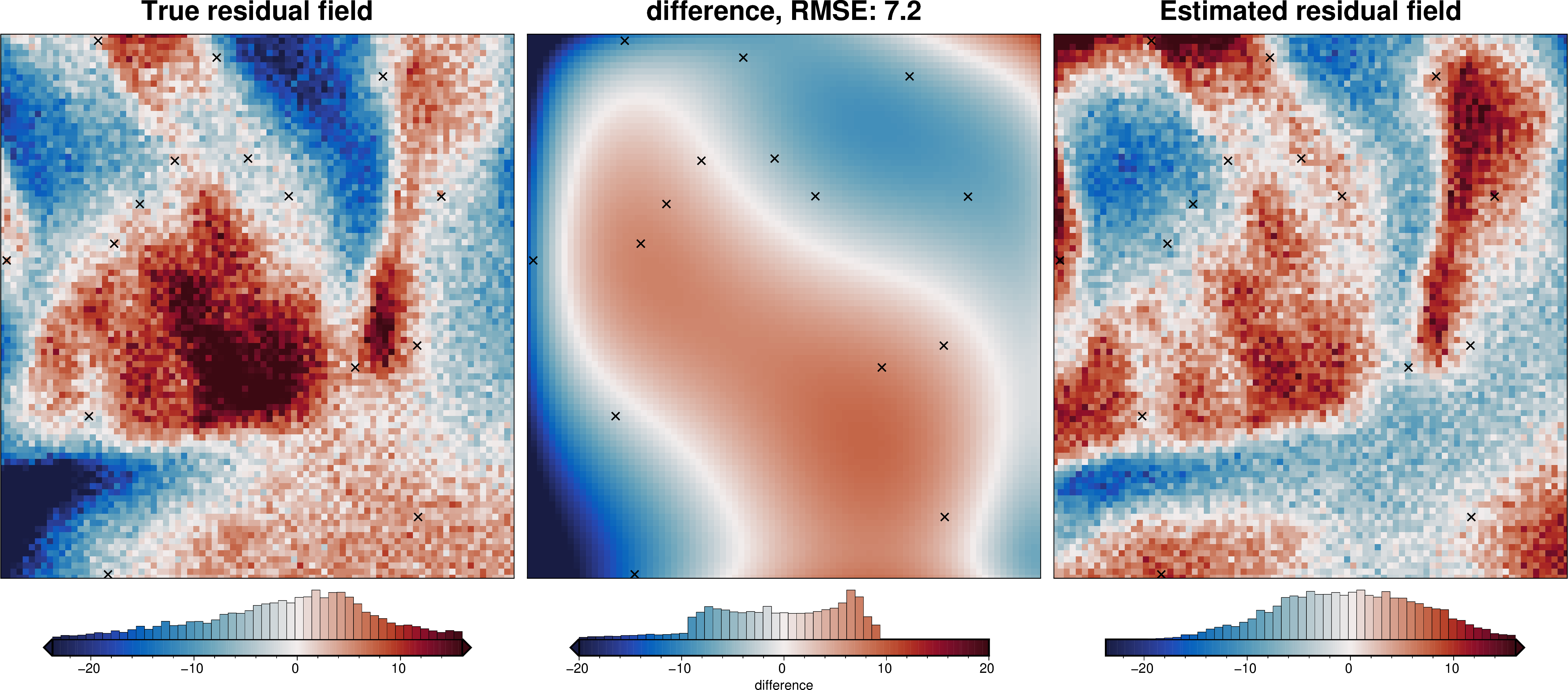

../_images/tutorial_07_estimating_regional_field_36_0.png
../_images/tutorial_07_estimating_regional_field_36_1.png
[21]:
northing easting upward basement_grav moho_grav grav gravity_anomaly uncert starting_gravity true_res ... res constant_reg constant_res constant_custom_reg constant_custom_res reg filter_reg filter_res trend_reg trend_res
count 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 ... 7.650000e+03 7.650000e+03 7650.000000 7650.0 7650.000000 7650.000000 7650.000000 7650.000000 7650.000000 7.650000e+03
mean 340900.000000 191900.000000 1000.0 0.302843 100.854428 101.157271 101.157271 2.0 1.548577 -1.245734 ... -7.510167e-13 9.119170e+01 8.416995 75.0 24.608694 99.608694 99.829289 -0.220595 99.608694 -7.510167e-13
std 103923.425856 98149.168359 0.0 23.604988 27.683439 9.703771 9.919851 0.0 24.926461 9.334160 ... 7.005950e+00 1.421178e-14 30.581609 0.0 30.581609 29.768297 27.063857 5.642272 29.768297 7.005950e+00
min 162900.000000 23900.000000 1000.0 -33.028677 37.680354 75.617509 70.861220 2.0 -36.414267 -39.698170 ... -2.015606e+01 9.119170e+01 -73.248856 75.0 -57.057158 16.420129 36.812191 -22.524520 16.420129 -2.015606e+01
25% 250900.000000 107900.000000 1000.0 -18.377589 82.066231 96.218487 96.092524 2.0 -17.408451 -6.458428 ... -5.089756e+00 9.119170e+01 -13.048560 75.0 3.143138 78.401816 79.328207 -3.286951 78.401816 -5.089756e+00
50% 340900.000000 191900.000000 1000.0 -4.927040 109.034686 102.149812 102.057202 2.0 -3.040309 -0.024210 ... -3.247819e-02 9.119170e+01 15.958441 75.0 32.150139 106.923096 107.365013 0.521776 106.923096 -3.247819e-02
75% 430900.000000 275900.000000 1000.0 21.431379 123.718316 106.787344 107.006336 2.0 19.823536 4.763396 ... 5.122518e+00 9.119170e+01 33.721142 75.0 49.912841 123.773507 121.943846 3.596585 123.773507 5.122518e+00
max 518900.000000 359900.000000 1000.0 58.138421 139.560469 126.329916 129.736453 2.0 59.698559 23.115665 ... 3.065616e+01 9.119170e+01 56.898690 75.0 73.090389 138.964569 137.738632 15.483262 138.964569 3.065616e+01

8 rows × 21 columns

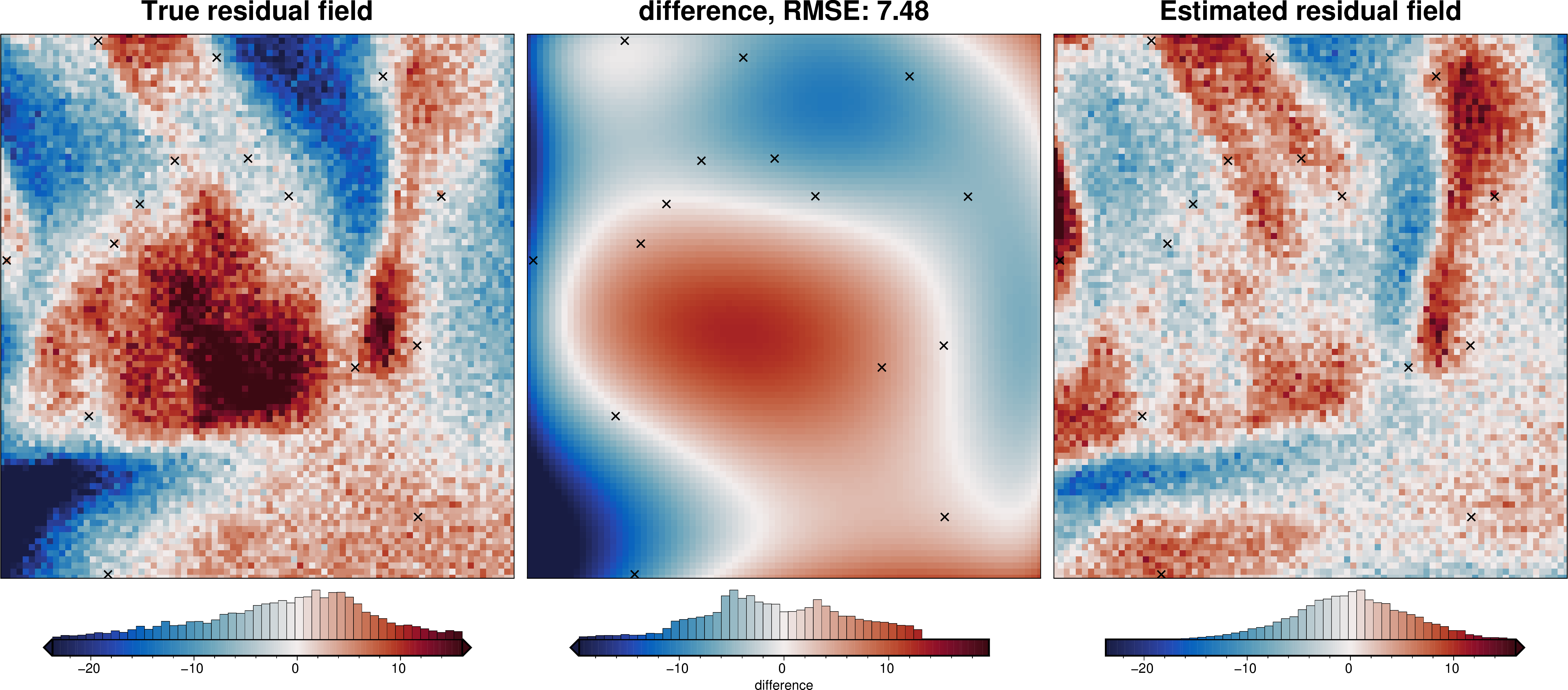

7.10.4. Equivalent Sources#

[22]:

# estimate regional with equivalent sources. This estimates the longwavlength component
# by either
# 1) using deep sources (`depth` parameter)
# 2) upwards continuing the fitted data (`grav_obs_height` parameter)
# 3) apply damping to the fitting (`damping` parameter)
grav_df = regional.regional_eq_sources(
    grav_df=grav_df,
    depth=300e3,
    damping=0.1,
    grav_obs_height=1.5e3,
    block_size=spacing * 10,
)
grav_df["eq_sources_reg"] = grav_df.reg
grav_df["eq_sources_res"] = grav_df.res

regional_comparison(grav_df, "eq_sources_reg")

grav_df.describe()

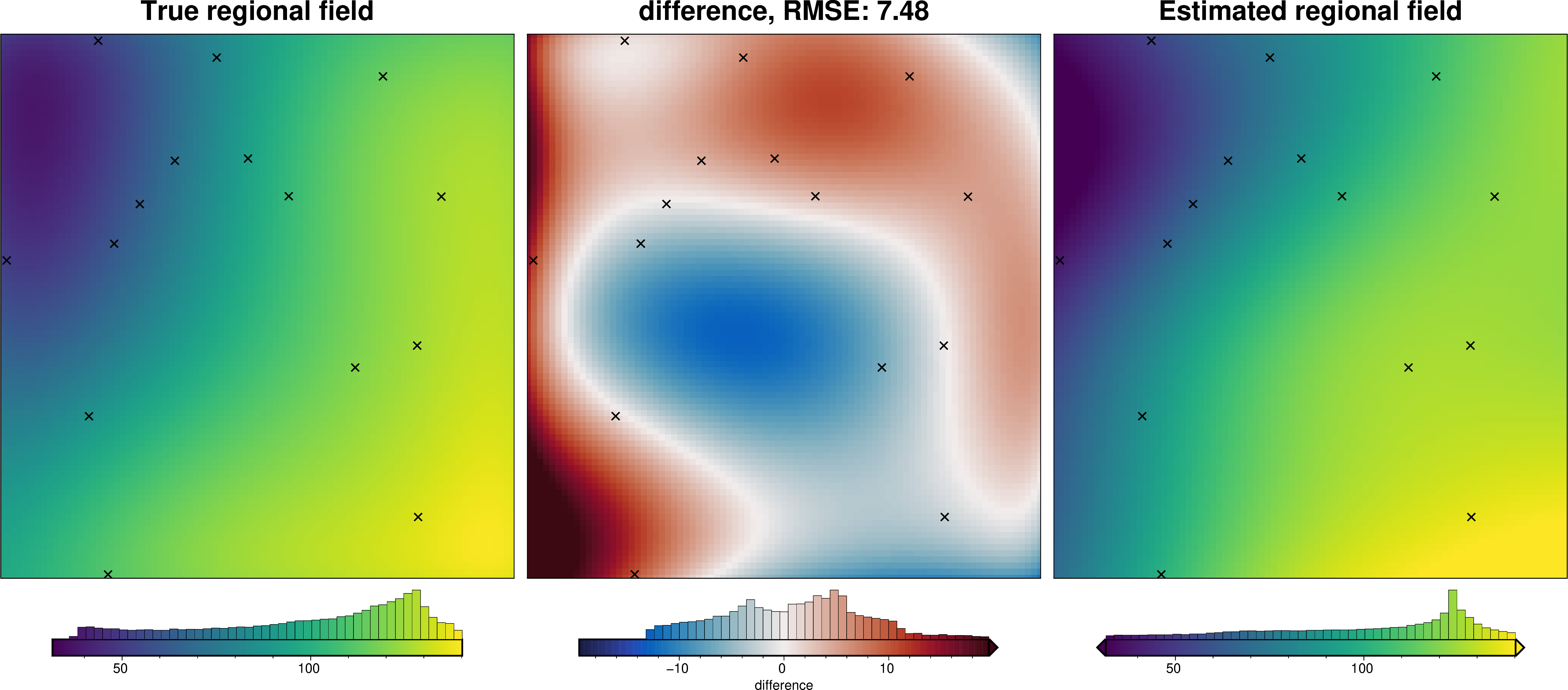

../_images/tutorial_07_estimating_regional_field_38_0.png
../_images/tutorial_07_estimating_regional_field_38_1.png
[22]:
northing easting upward basement_grav moho_grav grav gravity_anomaly uncert starting_gravity true_res ... constant_res constant_custom_reg constant_custom_res reg filter_reg filter_res trend_reg trend_res eq_sources_reg eq_sources_res
count 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 ... 7650.000000 7650.0 7650.000000 7650.000000 7650.000000 7650.000000 7650.000000 7.650000e+03 7650.000000 7650.000000
mean 340900.000000 191900.000000 1000.0 0.302843 100.854428 101.157271 101.157271 2.0 1.548577 -1.245734 ... 8.416995 75.0 24.608694 99.529885 99.829289 -0.220595 99.608694 -7.510167e-13 99.529885 0.078809
std 103923.425856 98149.168359 0.0 23.604988 27.683439 9.703771 9.919851 0.0 24.926461 9.334160 ... 30.581609 0.0 30.581609 29.887298 27.063857 5.642272 29.768297 7.005950e+00 29.887298 5.608333
min 162900.000000 23900.000000 1000.0 -33.028677 37.680354 75.617509 70.861220 2.0 -36.414267 -39.698170 ... -73.248856 75.0 -57.057158 22.406783 36.812191 -22.524520 16.420129 -2.015606e+01 22.406783 -18.294135
25% 250900.000000 107900.000000 1000.0 -18.377589 82.066231 96.218487 96.092524 2.0 -17.408451 -6.458428 ... -13.048560 75.0 3.143138 77.708304 79.328207 -3.286951 78.401816 -5.089756e+00 77.708304 -3.555612
50% 340900.000000 191900.000000 1000.0 -4.927040 109.034686 102.149812 102.057202 2.0 -3.040309 -0.024210 ... 15.958441 75.0 32.150139 108.694621 107.365013 0.521776 106.923096 -3.247819e-02 108.694621 0.084550
75% 430900.000000 275900.000000 1000.0 21.431379 123.718316 106.787344 107.006336 2.0 19.823536 4.763396 ... 33.721142 75.0 49.912841 123.546778 121.943846 3.596585 123.773507 5.122518e+00 123.546778 3.731717
max 518900.000000 359900.000000 1000.0 58.138421 139.560469 126.329916 129.736453 2.0 59.698559 23.115665 ... 56.898690 75.0 73.090389 146.611638 137.738632 15.483262 138.964569 3.065616e+01 146.611638 22.281547

8 rows × 23 columns

7.10.5. Constraint point minimization#

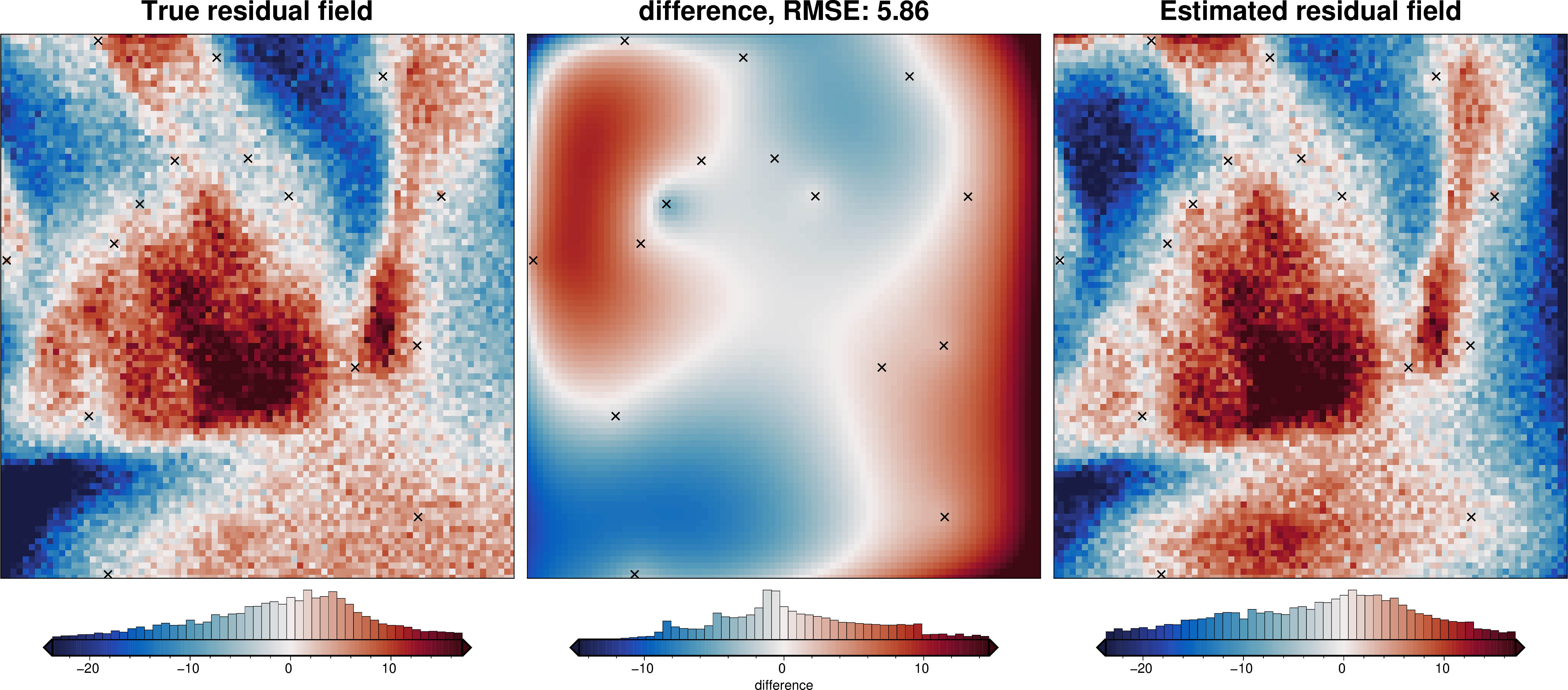

7.10.5.1. gridding with PyGMT and tension factors#

[23]:

# estimate regional with the constraints method
grav_df = regional.regional_constraints(
    grav_df=grav_df,
    constraints_df=constraint_points,
    grid_method="pygmt",
    tension_factor=0.3,
)
grav_df["constraints_pygmt_reg"] = grav_df.reg
grav_df["constraints_pygmt_res"] = grav_df.res

regional_comparison(grav_df, "constraints_pygmt_reg")

grav_df.describe()

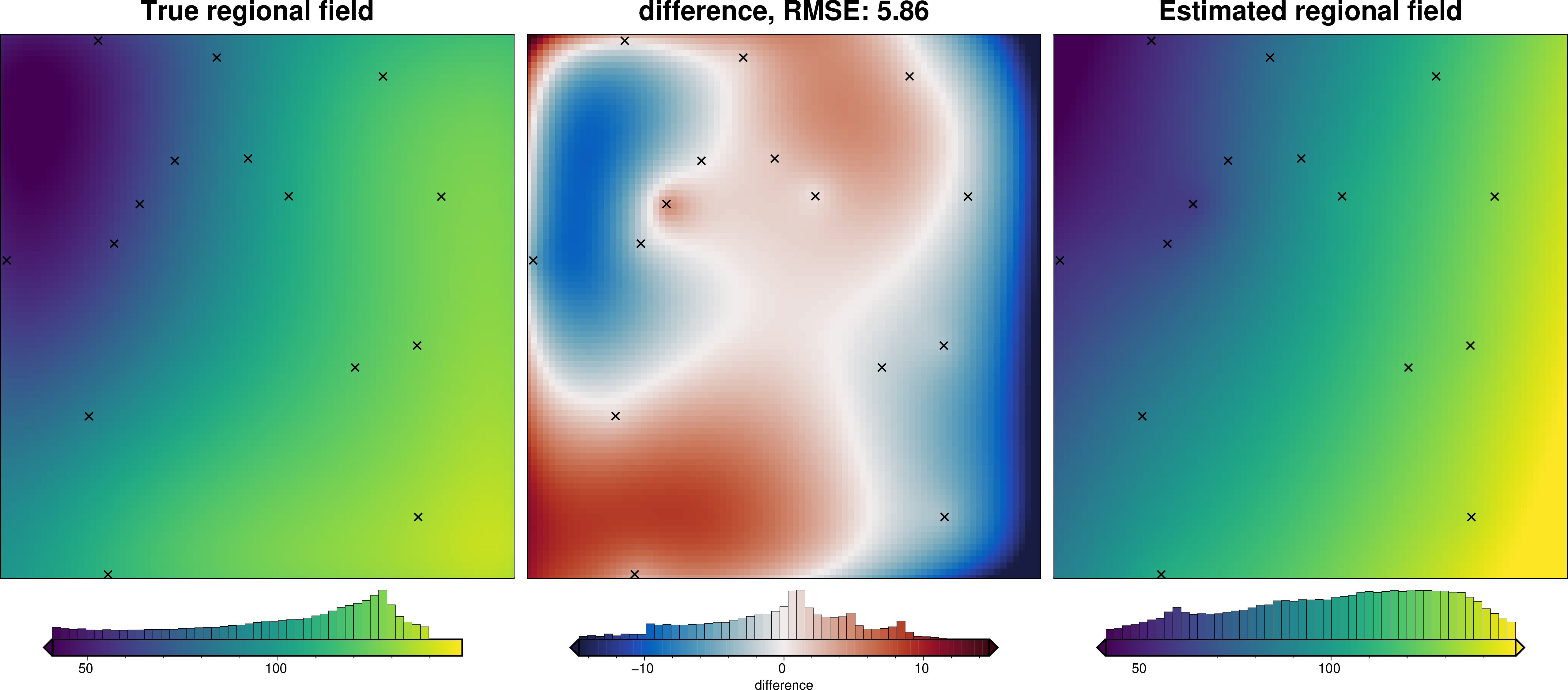

../_images/tutorial_07_estimating_regional_field_40_0.png
../_images/tutorial_07_estimating_regional_field_40_1.png
[23]:
northing easting upward basement_grav moho_grav grav gravity_anomaly uncert starting_gravity true_res ... constant_custom_res filter_reg filter_res trend_reg trend_res eq_sources_reg eq_sources_res reg constraints_pygmt_reg constraints_pygmt_res
count 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 ... 7650.000000 7650.000000 7650.000000 7650.000000 7.650000e+03 7650.000000 7650.000000 7650.000000 7650.000000 7650.000000
mean 340900.000000 191900.000000 1000.0 0.302843 100.854428 101.157271 101.157271 2.0 1.548577 -1.245734 ... 24.608694 99.829289 -0.220595 99.608694 -7.510167e-13 99.529885 0.078809 101.843470 101.843470 -2.234777
std 103923.425856 98149.168359 0.0 23.604988 27.683439 9.703771 9.919851 0.0 24.926461 9.334160 ... 30.581609 27.063857 5.642272 29.768297 7.005950e+00 29.887298 5.608333 28.443087 28.443087 10.085719
min 162900.000000 23900.000000 1000.0 -33.028677 37.680354 75.617509 70.861220 2.0 -36.414267 -39.698170 ... -57.057158 36.812191 -22.524520 16.420129 -2.015606e+01 22.406783 -18.294135 33.253517 33.253517 -30.545652
25% 250900.000000 107900.000000 1000.0 -18.377589 82.066231 96.218487 96.092524 2.0 -17.408451 -6.458428 ... 3.143138 79.328207 -3.286951 78.401816 -5.089756e+00 77.708304 -3.555612 80.630211 80.630211 -9.449601
50% 340900.000000 191900.000000 1000.0 -4.927040 109.034686 102.149812 102.057202 2.0 -3.040309 -0.024210 ... 32.150139 107.365013 0.521776 106.923096 -3.247819e-02 108.694621 0.084550 105.069168 105.069168 -1.090657
75% 430900.000000 275900.000000 1000.0 21.431379 123.718316 106.787344 107.006336 2.0 19.823536 4.763396 ... 49.912841 121.943846 3.596585 123.773507 5.122518e+00 123.546778 3.731717 125.050148 125.050148 4.841547
max 518900.000000 359900.000000 1000.0 58.138421 139.560469 126.329916 129.736453 2.0 59.698559 23.115665 ... 73.090389 137.738632 15.483262 138.964569 3.065616e+01 146.611638 22.281547 159.096756 159.096756 24.801272

8 rows × 25 columns

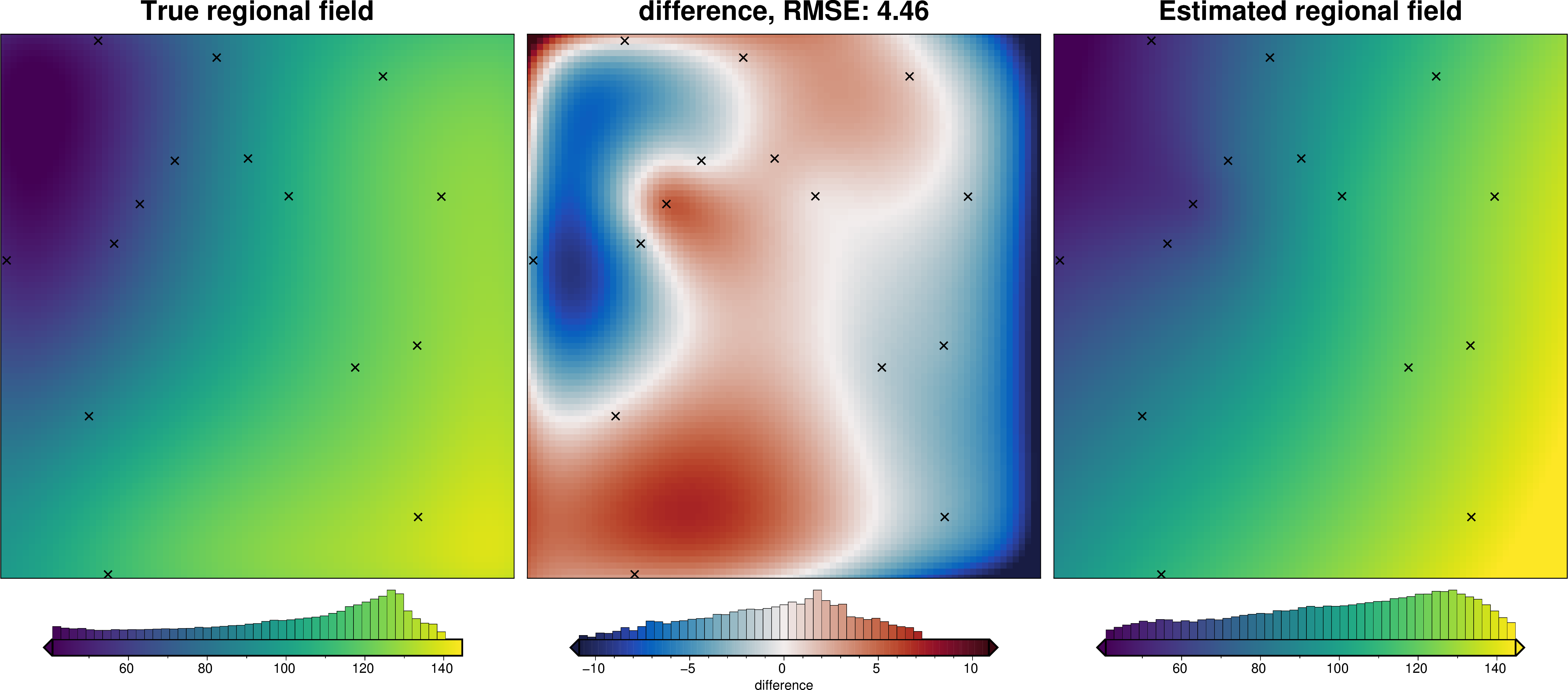

7.10.5.2. gridding with Verde and biharmonic splines#

[24]:

# estimate regional with the constraints method
grav_df = regional.regional_constraints(
    grav_df=grav_df,
    constraints_df=constraint_points,
    grid_method="verde",
    spline_dampings=np.logspace(-20, 0, 10),
)
grav_df["constraints_verde_reg"] = grav_df.reg
grav_df["constraints_verde_res"] = grav_df.res

regional_comparison(grav_df, "constraints_verde_reg")

grav_df.describe()

INFO:invert4geom:Best SplineCV score: 0.9271063748053232
INFO:invert4geom:Best damping: 1.2915496650148826e-09

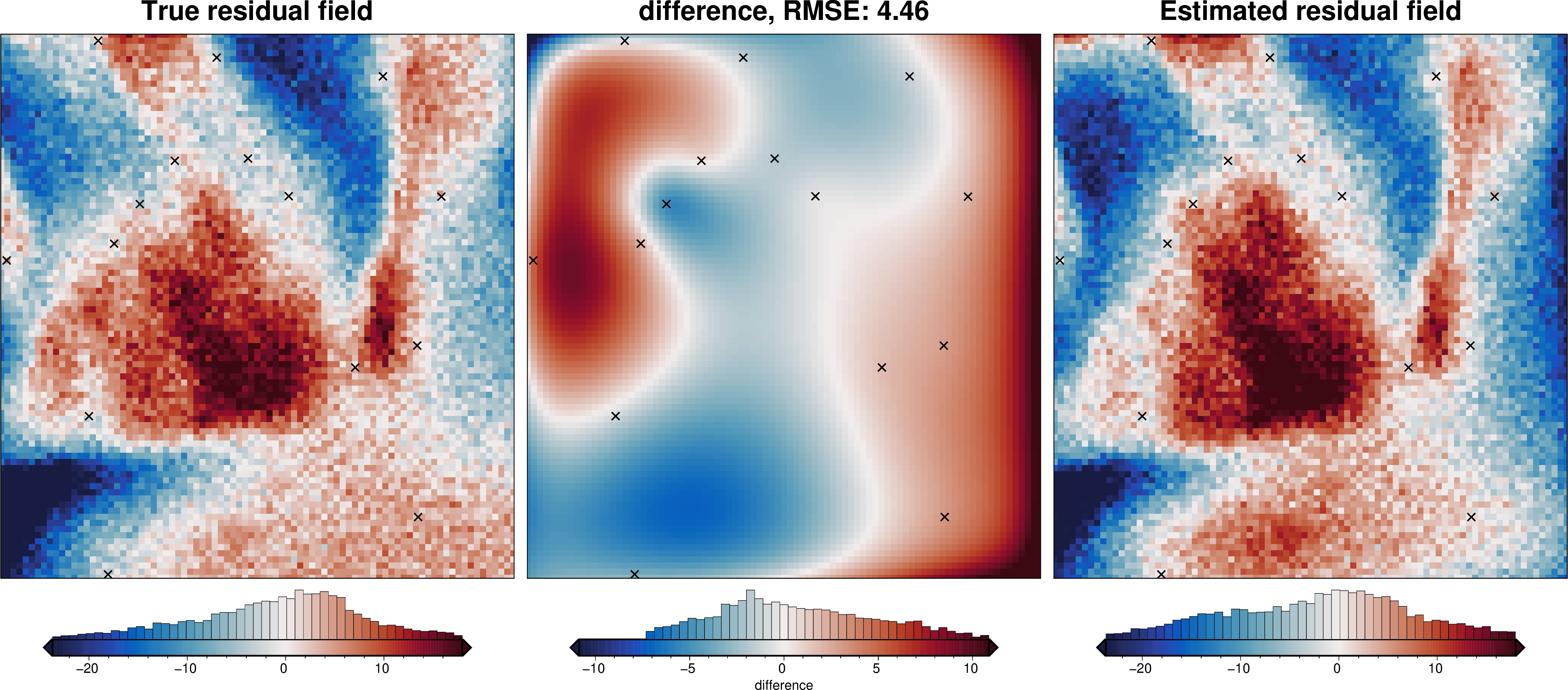

../_images/tutorial_07_estimating_regional_field_42_1.png
../_images/tutorial_07_estimating_regional_field_42_2.png
[24]:
northing easting upward basement_grav moho_grav grav gravity_anomaly uncert starting_gravity true_res ... filter_res trend_reg trend_res eq_sources_reg eq_sources_res reg constraints_pygmt_reg constraints_pygmt_res constraints_verde_reg constraints_verde_res
count 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 ... 7650.000000 7650.000000 7.650000e+03 7650.000000 7650.000000 7650.000000 7650.000000 7650.000000 7650.000000 7650.000000
mean 340900.000000 191900.000000 1000.0 0.302843 100.854428 101.157271 101.157271 2.0 1.548577 -1.245734 ... -0.220595 99.608694 -7.510167e-13 99.529885 0.078809 101.688063 101.843470 -2.234777 101.688063 -2.079369
std 103923.425856 98149.168359 0.0 23.604988 27.683439 9.703771 9.919851 0.0 24.926461 9.334160 ... 5.642272 29.768297 7.005950e+00 29.887298 5.608333 28.039639 28.443087 10.085719 28.039639 10.010793
min 162900.000000 23900.000000 1000.0 -33.028677 37.680354 75.617509 70.861220 2.0 -36.414267 -39.698170 ... -22.524520 16.420129 -2.015606e+01 22.406783 -18.294135 34.975867 33.253517 -30.545652 34.975867 -34.421193
25% 250900.000000 107900.000000 1000.0 -18.377589 82.066231 96.218487 96.092524 2.0 -17.408451 -6.458428 ... -3.286951 78.401816 -5.089756e+00 77.708304 -3.555612 81.053890 80.630211 -9.449601 81.053890 -9.317515
50% 340900.000000 191900.000000 1000.0 -4.927040 109.034686 102.149812 102.057202 2.0 -3.040309 -0.024210 ... 0.521776 106.923096 -3.247819e-02 108.694621 0.084550 106.005007 105.069168 -1.090657 106.005007 -1.220205
75% 430900.000000 275900.000000 1000.0 21.431379 123.718316 106.787344 107.006336 2.0 19.823536 4.763396 ... 3.596585 123.773507 5.122518e+00 123.546778 3.731717 124.994716 125.050148 4.841547 124.994716 4.661532
max 518900.000000 359900.000000 1000.0 58.138421 139.560469 126.329916 129.736453 2.0 59.698559 23.115665 ... 15.483262 138.964569 3.065616e+01 146.611638 22.281547 153.796027 159.096756 24.801272 153.796027 25.245437

8 rows × 27 columns

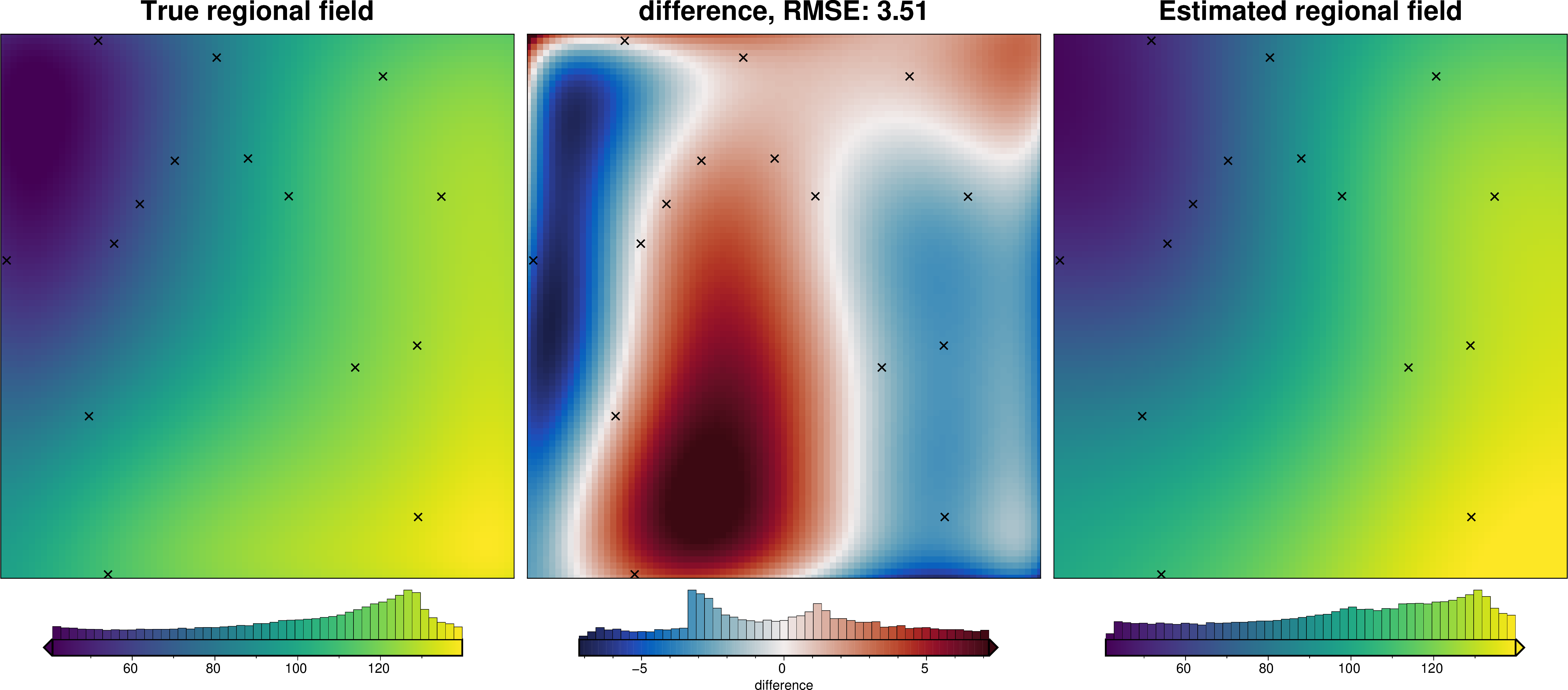

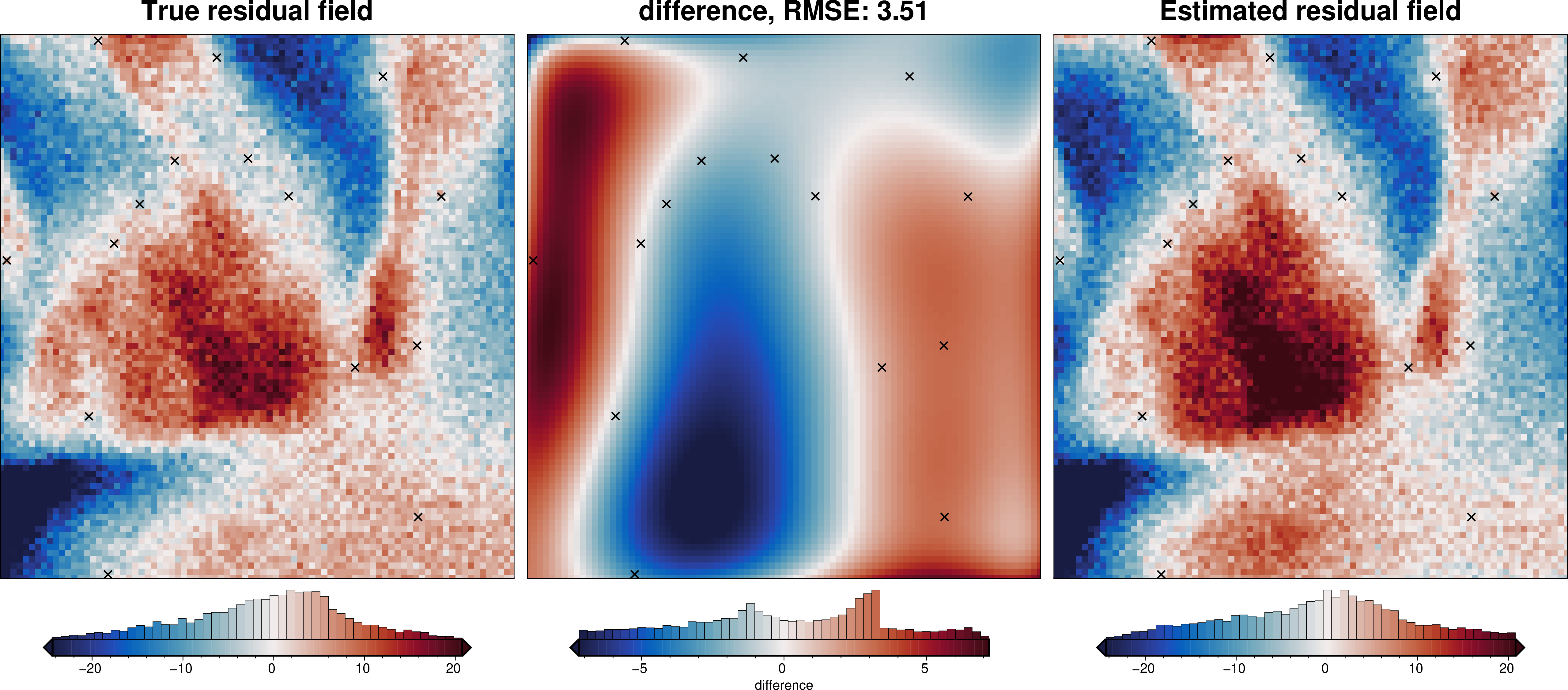

7.10.5.3. gridding with Equivalent sources#

[25]:

# estimate regional with the constraints method
grav_df = regional.regional_constraints(
    grav_df=grav_df,
    constraints_df=constraint_points,
    grid_method="eq_sources",
    # either automatically determine best damping
    cv=True,
    cv_kwargs=dict(
        n_trials=20,
        damping_limits=(1e-20, 1e3),
        fname="../tmp/tmp",
    ),
    # or provide a value
    # damping=1e-15,
    depth="default",
    block_size=None,
)
grav_df["constraints_eqs_reg"] = grav_df.reg
grav_df["constraints_eqs_res"] = grav_df.res

regional_comparison(grav_df, "constraints_eqs_reg")

grav_df.describe()

INFO:invert4geom:using 5 startup trials

INFO:invert4geom:Trial with best score:
INFO:invert4geom:       trial number: 19
INFO:invert4geom:       parameter: {'damping': 0.00020256605945427112}
INFO:invert4geom:       scores: [0.90020175299814]
../_images/tutorial_07_estimating_regional_field_44_4.png
../_images/tutorial_07_estimating_regional_field_44_5.png
[25]:
northing easting upward basement_grav moho_grav grav gravity_anomaly uncert starting_gravity true_res ... trend_res eq_sources_reg eq_sources_res reg constraints_pygmt_reg constraints_pygmt_res constraints_verde_reg constraints_verde_res constraints_eqs_reg constraints_eqs_res
count 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 ... 7.650000e+03 7650.000000 7650.000000 7650.000000 7650.000000 7650.000000 7650.000000 7650.000000 7650.000000 7650.000000
mean 340900.000000 191900.000000 1000.0 0.302843 100.854428 101.157271 101.157271 2.0 1.548577 -1.245734 ... -7.510167e-13 99.529885 0.078809 100.848924 101.843470 -2.234777 101.688063 -2.079369 100.848924 -1.240231
std 103923.425856 98149.168359 0.0 23.604988 27.683439 9.703771 9.919851 0.0 24.926461 9.334160 ... 7.005950e+00 29.887298 5.608333 27.314791 28.443087 10.085719 28.039639 10.010793 27.314791 10.822628
min 162900.000000 23900.000000 1000.0 -33.028677 37.680354 75.617509 70.861220 2.0 -36.414267 -39.698170 ... -2.015606e+01 22.406783 -18.294135 42.105349 33.253517 -30.545652 34.975867 -34.421193 42.105349 -43.374503
25% 250900.000000 107900.000000 1000.0 -18.377589 82.066231 96.218487 96.092524 2.0 -17.408451 -6.458428 ... -5.089756e+00 77.708304 -3.555612 80.728985 80.630211 -9.449601 81.053890 -9.317515 80.728985 -8.159026
50% 340900.000000 191900.000000 1000.0 -4.927040 109.034686 102.149812 102.057202 2.0 -3.040309 -0.024210 ... -3.247819e-02 108.694621 0.084550 105.739063 105.069168 -1.090657 106.005007 -1.220205 105.739063 -0.260842
75% 430900.000000 275900.000000 1000.0 21.431379 123.718316 106.787344 107.006336 2.0 19.823536 4.763396 ... 5.122518e+00 123.546778 3.731717 124.163208 125.050148 4.841547 124.994716 4.661532 124.163208 5.395760
max 518900.000000 359900.000000 1000.0 58.138421 139.560469 126.329916 129.736453 2.0 59.698559 23.115665 ... 3.065616e+01 146.611638 22.281547 141.669693 159.096756 24.801272 153.796027 25.245437 141.669693 28.063116

8 rows × 29 columns

We can also use the function regional.regional_separation() and pass through the method and keyword args, combining all the above functions into one.

[26]:

# estimate regional with the mean misfit at constraints
grav_df = regional.regional_separation(
    method="constant",
    grav_df=grav_df,
    constraints_df=constraint_points,
)

regional_comparison(grav_df, "reg")

grav_df.describe()

INFO:invert4geom:using median gravity misfit of constraint points for regional field: 91.19169859399041 mGal
../_images/tutorial_07_estimating_regional_field_46_1.png

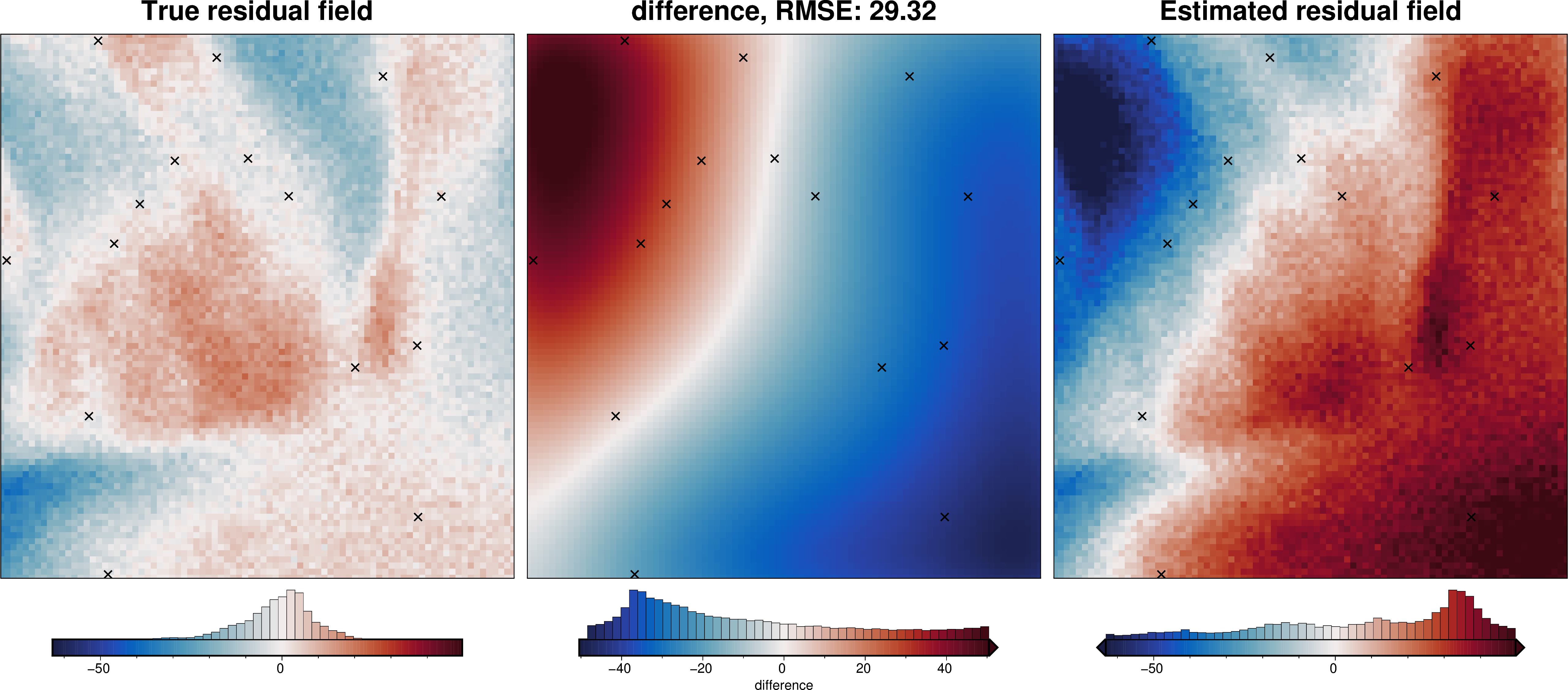

../_images/tutorial_07_estimating_regional_field_46_2.png
[26]:
northing easting upward basement_grav moho_grav grav gravity_anomaly uncert starting_gravity true_res ... trend_res eq_sources_reg eq_sources_res reg constraints_pygmt_reg constraints_pygmt_res constraints_verde_reg constraints_verde_res constraints_eqs_reg constraints_eqs_res
count 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 7650.000000 7650.000000 7650.0 7650.000000 7650.000000 ... 7.650000e+03 7650.000000 7650.000000 7.650000e+03 7650.000000 7650.000000 7650.000000 7650.000000 7650.000000 7650.000000
mean 340900.000000 191900.000000 1000.0 0.302843 100.854428 101.157271 101.157271 2.0 1.548577 -1.245734 ... -7.510167e-13 99.529885 0.078809 9.119170e+01 101.843470 -2.234777 101.688063 -2.079369 100.848924 -1.240231
std 103923.425856 98149.168359 0.0 23.604988 27.683439 9.703771 9.919851 0.0 24.926461 9.334160 ... 7.005950e+00 29.887298 5.608333 1.421178e-14 28.443087 10.085719 28.039639 10.010793 27.314791 10.822628
min 162900.000000 23900.000000 1000.0 -33.028677 37.680354 75.617509 70.861220 2.0 -36.414267 -39.698170 ... -2.015606e+01 22.406783 -18.294135 9.119170e+01 33.253517 -30.545652 34.975867 -34.421193 42.105349 -43.374503
25% 250900.000000 107900.000000 1000.0 -18.377589 82.066231 96.218487 96.092524 2.0 -17.408451 -6.458428 ... -5.089756e+00 77.708304 -3.555612 9.119170e+01 80.630211 -9.449601 81.053890 -9.317515 80.728985 -8.159026
50% 340900.000000 191900.000000 1000.0 -4.927040 109.034686 102.149812 102.057202 2.0 -3.040309 -0.024210 ... -3.247819e-02 108.694621 0.084550 9.119170e+01 105.069168 -1.090657 106.005007 -1.220205 105.739063 -0.260842
75% 430900.000000 275900.000000 1000.0 21.431379 123.718316 106.787344 107.006336 2.0 19.823536 4.763396 ... 5.122518e+00 123.546778 3.731717 9.119170e+01 125.050148 4.841547 124.994716 4.661532 124.163208 5.395760
max 518900.000000 359900.000000 1000.0 58.138421 139.560469 126.329916 129.736453 2.0 59.698559 23.115665 ... 3.065616e+01 146.611638 22.281547 9.119170e+01 159.096756 24.801272 153.796027 25.245437 141.669693 28.063116

8 rows × 29 columns

Above we just picked these hyperparameter values arbitrarily. The next user guide shows a more informed technique for choosing each of these hyperparameter values.

Contents
