Quickstart

Here is a quick demonstration of some of the main functionality of Invert4Geom. This assumes you are familar with Python and have successfully installed this packaged. See the tutorials for a step-by-step introduction to Invert4Geom, and the how-to guides for more in-depth guides for specific features.

Import packages

import os

import numpy as np
import polartoolkit as ptk
import verde as vd

import invert4geom

os.environ["POLARTOOLKIT_EPSG"] = "3031"

/home/mdtanker/miniforge3/envs/invert4geom/lib/python3.12/site-packages/UQpy/__init__.py:6: UserWarning:

pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.

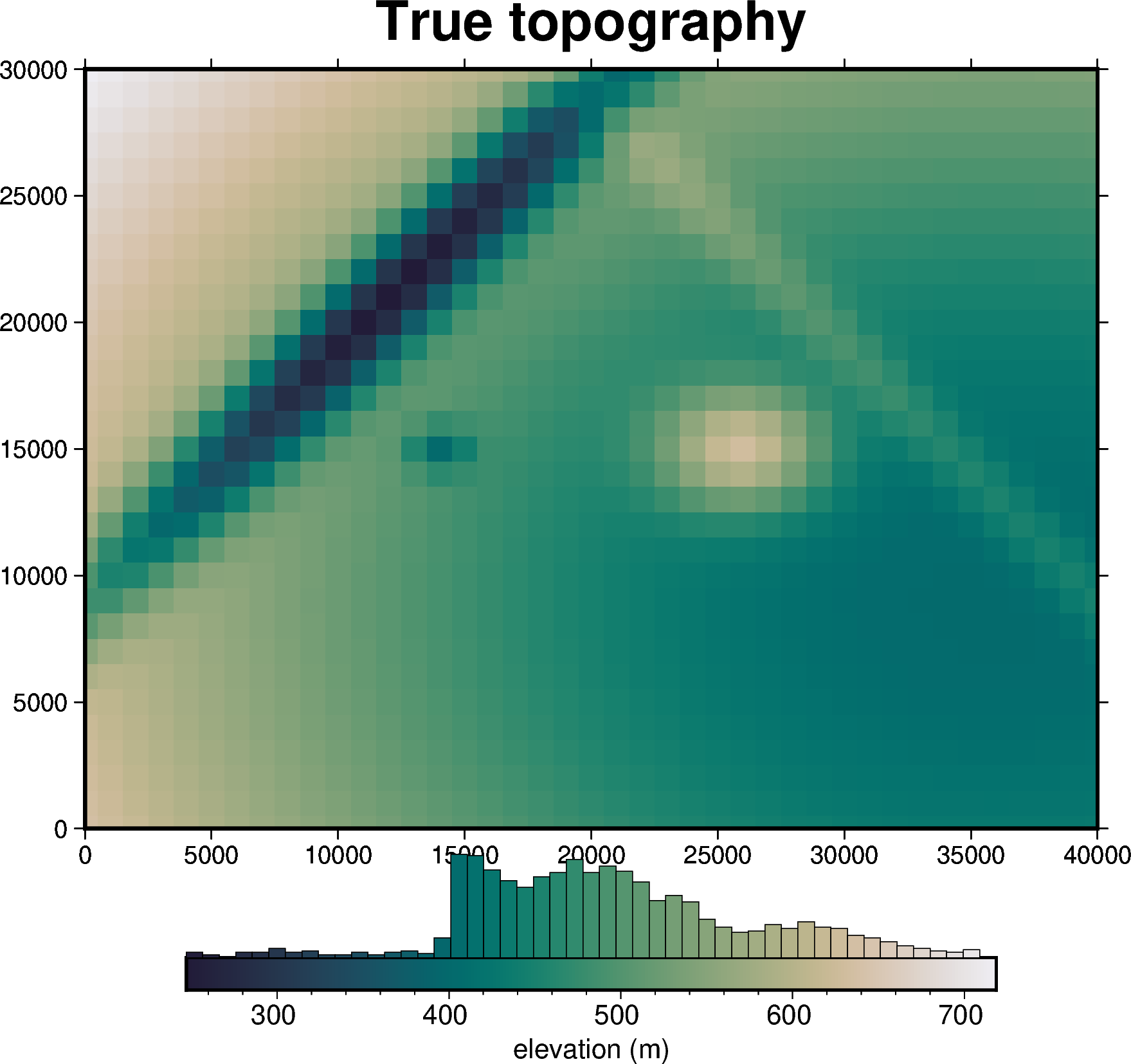

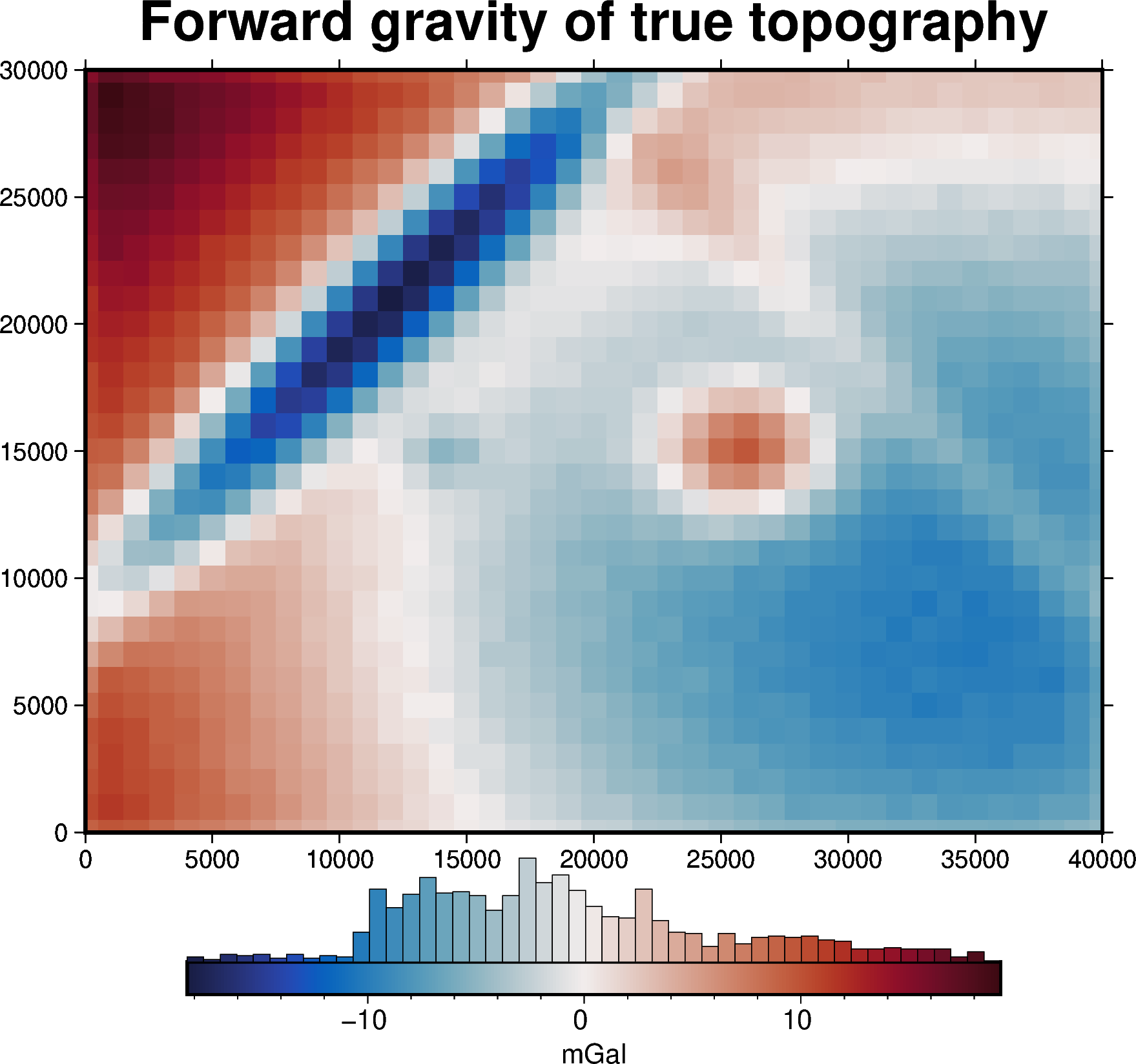

Create observed gravity data

true_topography, _, _, observed_gravity = invert4geom.load_synthetic_model(
    spacing=1000,
    region=(0, 40000, 0, 30000),
    density_contrast=2670 - 1,  # density contrast between rock and air
    zref=500,
    gravity_noise=0.2,
    plot_gravity=True,
    plot_topography=True,
)

Initialize the gravity data class

data = invert4geom.create_data(observed_gravity)

Create a starting topography grid

# make a flat grid at 500 m
grid_coords = vd.grid_coordinates(
    spacing=1000,
    region=(0, 40000, 0, 30000),
)
starting_topography = vd.make_xarray_grid(
    grid_coords,
    data=np.ones_like(grid_coords[0]) * 500,
    data_names="upward",
)

Create a model

model = invert4geom.create_model(
    zref=500,
    density_contrast=2670 - 1,
    topography=starting_topography,
)
model

<xarray.Dataset> Size: 92kB
Dimensions:                (northing: 31, easting: 41)
Coordinates:
  * northing               (northing) float64 248B 0.0 1e+03 ... 2.9e+04 3e+04
  * easting                (easting) float64 328B 0.0 1e+03 ... 3.9e+04 4e+04
    top                    (northing, easting) float64 10kB 500.0 ... 500.0
    bottom                 (northing, easting) float64 10kB 500.0 ... 500.0
Data variables:
    density                (northing, easting) int64 10kB 2669 2669 ... 2669
    thickness              (northing, easting) float64 10kB 0.0 0.0 ... 0.0 0.0
    starting_topography    (northing, easting) float64 10kB 500.0 ... 500.0
    topography             (northing, easting) float64 10kB 500.0 ... 500.0
    mask                   (northing, easting) float64 10kB 1.0 1.0 ... 1.0 1.0
    upper_confining_layer  (northing, easting) float64 10kB nan nan ... nan nan
    lower_confining_layer  (northing, easting) float64 10kB nan nan ... nan nan
Attributes:
    zref:              500
    density_contrast:  2669
    region:            (0.0, 40000.0, 0.0, 30000.0)
    spacing:           1000.0
    buffer_width:      0
    inner_region:      (0.0, 40000.0, 0.0, 30000.0)
    dataset_type:      model
    model_type:        prisms
    coord_names:       ('easting', 'northing')

xarray.Dataset

• Dimensions:
  • northing: 31
  • easting: 41
• Coordinates: (4)
  • northing
    (northing)
    float64
    0.0 1e+03 2e+03 ... 2.9e+04 3e+04

    array([    0.,  1000.,  2000.,  3000.,  4000.,  5000.,  6000.,  7000.,  8000.,
            9000., 10000., 11000., 12000., 13000., 14000., 15000., 16000., 17000.,
           18000., 19000., 20000., 21000., 22000., 23000., 24000., 25000., 26000.,
           27000., 28000., 29000., 30000.])

  • easting
    (easting)
    float64
    0.0 1e+03 2e+03 ... 3.9e+04 4e+04

    array([    0.,  1000.,  2000.,  3000.,  4000.,  5000.,  6000.,  7000.,  8000.,
            9000., 10000., 11000., 12000., 13000., 14000., 15000., 16000., 17000.,
           18000., 19000., 20000., 21000., 22000., 23000., 24000., 25000., 26000.,
           27000., 28000., 29000., 30000., 31000., 32000., 33000., 34000., 35000.,
           36000., 37000., 38000., 39000., 40000.])

  • top
    (northing, easting)
    float64
    500.0 500.0 500.0 ... 500.0 500.0

    array([[500., 500., 500., ..., 500., 500., 500.],
           [500., 500., 500., ..., 500., 500., 500.],
           [500., 500., 500., ..., 500., 500., 500.],
           ...,
           [500., 500., 500., ..., 500., 500., 500.],
           [500., 500., 500., ..., 500., 500., 500.],
           [500., 500., 500., ..., 500., 500., 500.]], shape=(31, 41))

  • bottom
    (northing, easting)
    float64
    500.0 500.0 500.0 ... 500.0 500.0

    array([[500., 500., 500., ..., 500., 500., 500.],
           [500., 500., 500., ..., 500., 500., 500.],
           [500., 500., 500., ..., 500., 500., 500.],
           ...,
           [500., 500., 500., ..., 500., 500., 500.],
           [500., 500., 500., ..., 500., 500., 500.],
           [500., 500., 500., ..., 500., 500., 500.]], shape=(31, 41))

• Data variables: (7)
  • density
    (northing, easting)
    int64
    2669 2669 2669 ... 2669 2669 2669

    array([[2669, 2669, 2669, ..., 2669, 2669, 2669],
           [2669, 2669, 2669, ..., 2669, 2669, 2669],
           [2669, 2669, 2669, ..., 2669, 2669, 2669],
           ...,
           [2669, 2669, 2669, ..., 2669, 2669, 2669],
           [2669, 2669, 2669, ..., 2669, 2669, 2669],
           [2669, 2669, 2669, ..., 2669, 2669, 2669]], shape=(31, 41))

  • thickness
    (northing, easting)
    float64
    0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0

    array([[0., 0., 0., ..., 0., 0., 0.],
           [0., 0., 0., ..., 0., 0., 0.],
           [0., 0., 0., ..., 0., 0., 0.],
           ...,
           [0., 0., 0., ..., 0., 0., 0.],
           [0., 0., 0., ..., 0., 0., 0.],
           [0., 0., 0., ..., 0., 0., 0.]], shape=(31, 41))

  • starting_topography
    (northing, easting)
    float64
    500.0 500.0 500.0 ... 500.0 500.0

    array([[500., 500., 500., ..., 500., 500., 500.],
           [500., 500., 500., ..., 500., 500., 500.],
           [500., 500., 500., ..., 500., 500., 500.],
           ...,
           [500., 500., 500., ..., 500., 500., 500.],
           [500., 500., 500., ..., 500., 500., 500.],
           [500., 500., 500., ..., 500., 500., 500.]], shape=(31, 41))

  • topography
    (northing, easting)
    float64
    500.0 500.0 500.0 ... 500.0 500.0

    array([[500., 500., 500., ..., 500., 500., 500.],
           [500., 500., 500., ..., 500., 500., 500.],
           [500., 500., 500., ..., 500., 500., 500.],
           ...,
           [500., 500., 500., ..., 500., 500., 500.],
           [500., 500., 500., ..., 500., 500., 500.],
           [500., 500., 500., ..., 500., 500., 500.]], shape=(31, 41))

  • mask
    (northing, easting)
    float64
    1.0 1.0 1.0 1.0 ... 1.0 1.0 1.0 1.0

    array([[1., 1., 1., ..., 1., 1., 1.],
           [1., 1., 1., ..., 1., 1., 1.],
           [1., 1., 1., ..., 1., 1., 1.],
           ...,
           [1., 1., 1., ..., 1., 1., 1.],
           [1., 1., 1., ..., 1., 1., 1.],
           [1., 1., 1., ..., 1., 1., 1.]], shape=(31, 41))

  • upper_confining_layer
    (northing, easting)
    float64
    nan nan nan nan ... nan nan nan nan

    array([[nan, nan, nan, ..., nan, nan, nan],
           [nan, nan, nan, ..., nan, nan, nan],
           [nan, nan, nan, ..., nan, nan, nan],
           ...,
           [nan, nan, nan, ..., nan, nan, nan],
           [nan, nan, nan, ..., nan, nan, nan],
           [nan, nan, nan, ..., nan, nan, nan]], shape=(31, 41))

  • lower_confining_layer
    (northing, easting)
    float64
    nan nan nan nan ... nan nan nan nan

    array([[nan, nan, nan, ..., nan, nan, nan],
           [nan, nan, nan, ..., nan, nan, nan],
           [nan, nan, nan, ..., nan, nan, nan],
           ...,
           [nan, nan, nan, ..., nan, nan, nan],
           [nan, nan, nan, ..., nan, nan, nan],
           [nan, nan, nan, ..., nan, nan, nan]], shape=(31, 41))

• Attributes: (9)

  zref :

  500

  density_contrast :

  2669

  region :

  (0.0, 40000.0, 0.0, 30000.0)

  spacing :

  1000.0

  buffer_width :

  0

  inner_region :

  (0.0, 40000.0, 0.0, 30000.0)

  dataset_type :

  model

  model_type :

  prisms

  coord_names :

  ('easting', 'northing')

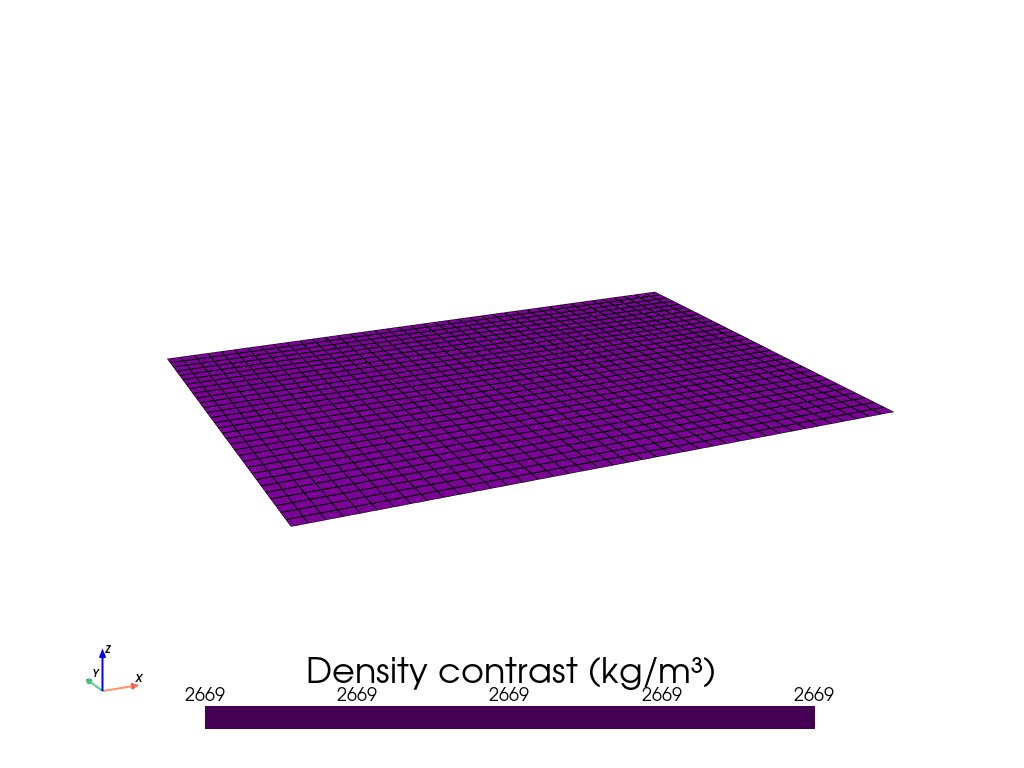

model.inv.plot_model(show_edges=True)

Gravity misfit

data.inv.forward_gravity(
    model,
    progressbar=True,
)
data.inv.df.head()

	northing	easting	upward	gravity_anomaly	forward_gravity
0	0.0	0.0	1000.0	9.069604	-0.0
1	0.0	1000.0	1000.0	9.813227	-0.0
2	0.0	2000.0	1000.0	9.473334	-0.0
3	0.0	3000.0	1000.0	8.676493	-0.0
4	0.0	4000.0	1000.0	7.806311	-0.0

data.inv.regional_constant(
    constant=0,
)
data.inv.df.head()

	northing	easting	upward	gravity_anomaly	forward_gravity	misfit	reg	res	starting_forward_gravity	starting_misfit	starting_reg	starting_res
0	0.0	0.0	1000.0	9.069604	-0.0	9.069604	0.0	9.069604	-0.0	9.069604	0.0	9.069604
1	0.0	1000.0	1000.0	9.813227	-0.0	9.813227	0.0	9.813227	-0.0	9.813227	0.0	9.813227
2	0.0	2000.0	1000.0	9.473334	-0.0	9.473334	0.0	9.473334	-0.0	9.473334	0.0	9.473334
3	0.0	3000.0	1000.0	8.676493	-0.0	8.676493	0.0	8.676493	-0.0	8.676493	0.0	8.676493
4	0.0	4000.0	1000.0	7.806311	-0.0	7.806311	0.0	7.806311	-0.0	7.806311	0.0	7.806311

data.inv.plot_anomalies()

makecpt [ERROR]: Option T: min >= max

Initialize the Inversion class

inv = invert4geom.Inversion(
    data,
    model,
    solver_damping=0.1,
    # set stopping criteria
    max_iterations=30,
    l2_norm_tolerance=0.45,
    delta_l2_norm_tolerance=1.005,
)

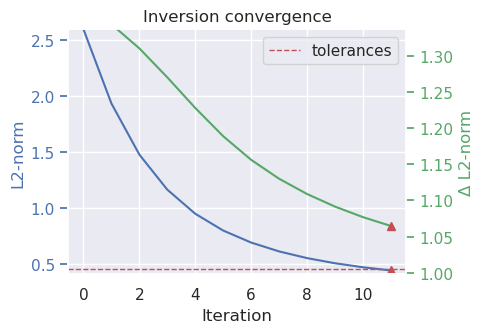

Perform inversion

inv.invert(
    plot_dynamic_convergence=True,
)

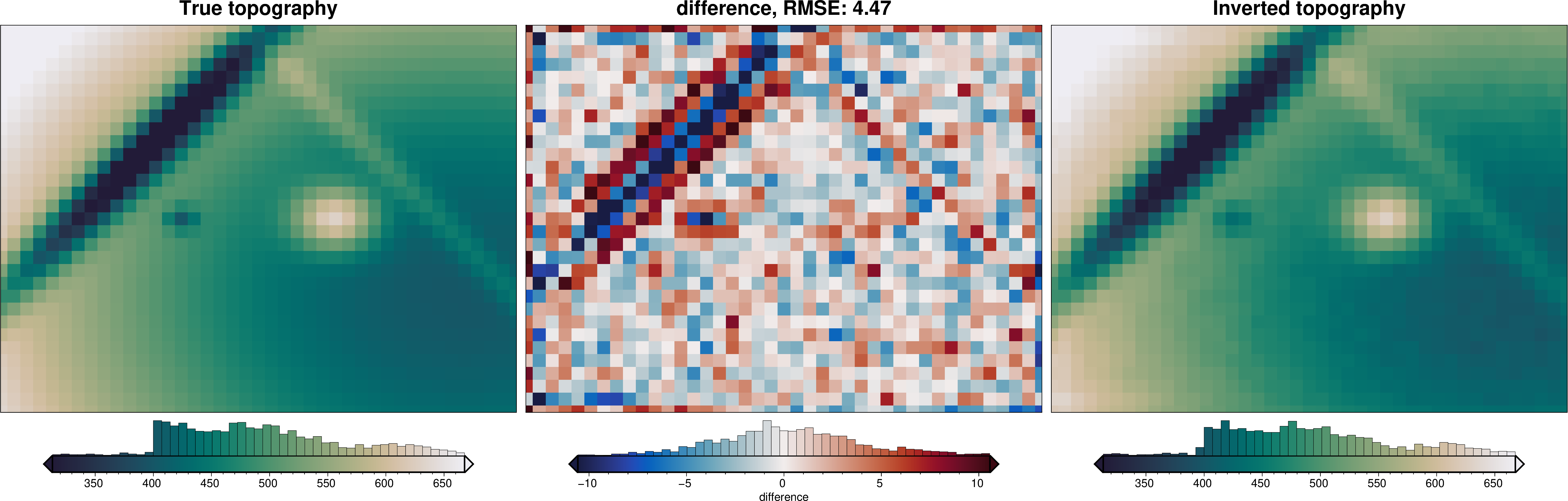

_ = ptk.grid_compare(
    true_topography,
    inv.model.topography,
    grid1_name="True topography",
    grid2_name="Inverted topography",
    robust=True,
    hist=True,
    inset=False,
    title="difference",
    reverse_cpt=True,
    cmap="rain",
)

As you can see, the inversion successfully recovered the true topography. The root mean square difference between the true and recovered topography is low, but this is not too surprising since we gave the inversion the true density contrast and reference level values.
