1. Discretization#

Here we will describe Invert4Geom’s approach to discretization. Discretization refers to the process of transforming something of continuous-value (smoothly varying) into a discrete form. For example, a Digital Elevation Model (DEM) is a discretized representation of the elevation of a landscape. Each grid cell of the DEM has a discrete value.

In Invert4Geom we are interested in modeling the geometry (i.e. relief, topography) of some geologic layer. This maybe to the geometry of the Earth’s surface (referred to as topography), the geometry of the Moho, or the geometry of the seafloor (bathymetry).

To do this, we must treat these geologic layers as density contrasts, separating materials of differing densities. For example, the Moho is the density contrast between the Earth’s crust and mantle, or the Earth’s surface, in terrestrial regions, is the density contrast between air and rock.

To discretize these density contrasts, we use a single layer of adjacent, vertical, right-rectangular prisms, each assigned a density contrast value. This notebook walks you though how this discretization is achieved, using a synthetic dataset of topography.

1.1. Import packages#

[1]:

# set EPSG for plotting functions
import os

import xarray as xr

import invert4geom

os.environ["POLARTOOLKIT_EPSG"] = "3031"

/home/mdtanker/miniforge3/envs/invert4geom/lib/python3.12/site-packages/UQpy/__init__.py:6: UserWarning:

pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.

1.2. Create some topography data#

Invert4Geom uses the Python package xarray for handing gridded data. The format for this gridded data are Datasets, which have two coordinates (by convention we use the names easting and northing), and have variables, which for topography is the elevation (we use the name upward). Datasets can also include helpful metadata such as units and the data source.

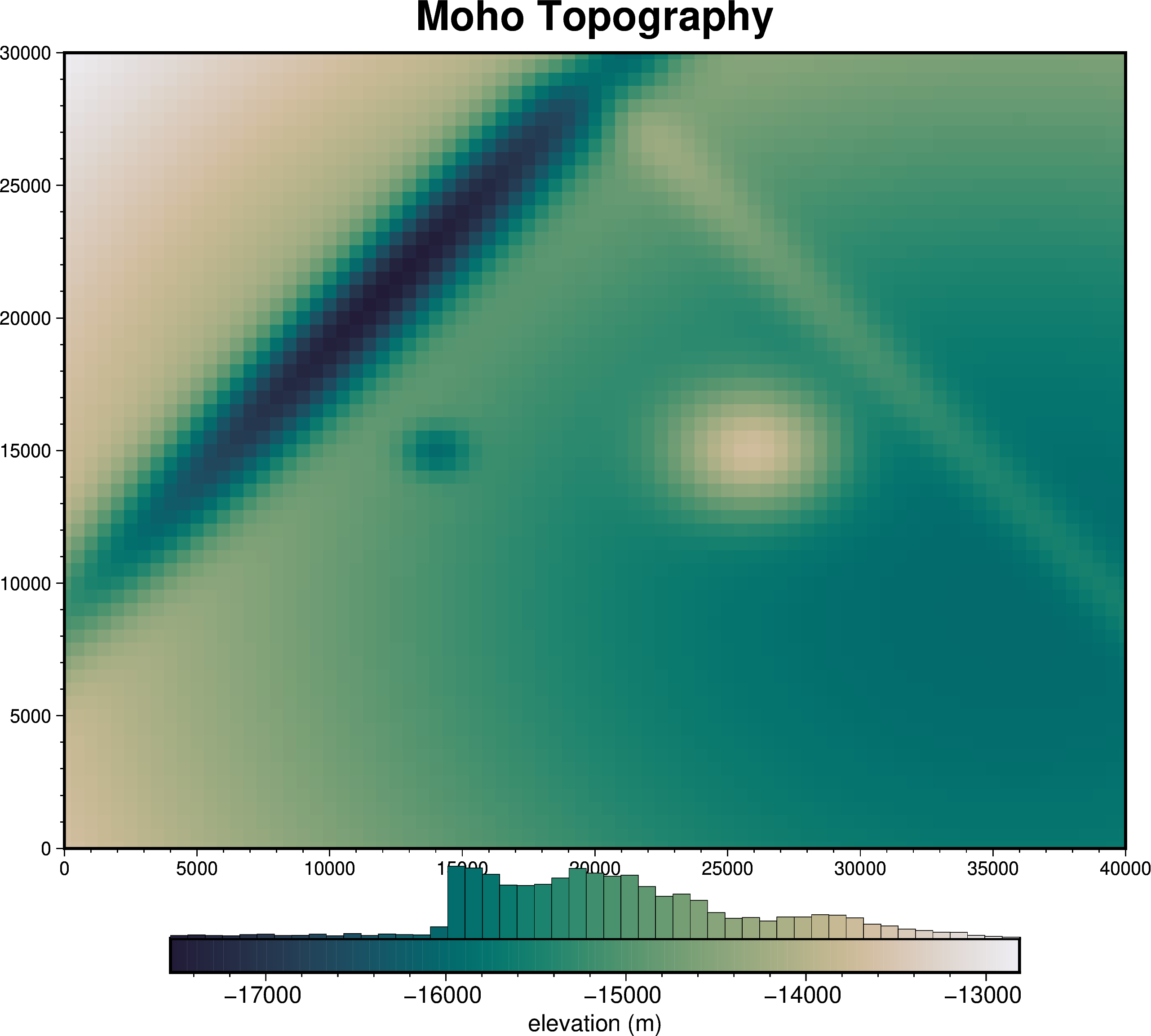

In this example, the topography represent the Moho.

[2]:

# create synthetic topography data
topography = invert4geom.synthetic_topography_simple(
    spacing=500,
    region=(0, 40000, 0, 30000),
    yoffset=-20000,
    scale=10,
    plot=True,
    title="Moho Topography",
)
topography = topography.to_dataset(name="upward")
../_images/tutorial_01_discretization_4_0.png

We can see the structure of the dataset.

[3]:

topography

[3]:

<xarray.Dataset> Size: 41kB
Dimensions:   (easting: 81, northing: 61)
Coordinates:
  * easting   (easting) float64 648B 0.0 500.0 1e+03 ... 3.9e+04 3.95e+04 4e+04
  * northing  (northing) float64 488B 0.0 500.0 1e+03 ... 2.9e+04 2.95e+04 3e+04
Data variables:
    upward    (northing, easting) float64 40kB -1.363e+04 ... -1.458e+04

1.3. Discretize the topography as prisms#

We want to forward-model the gravity effect of this moho topography grid, which represent the density contrast between crust (above) and mantle (below). One way to do this is to create two layers of adjacent vertical prisms, one layer representing the crust and one layer representing the earth.

For each prism layer, we need to choose a reference level (zref) which defines either the top or bottom of each prism, and a density value for each prism.

For the upper prism layer (the crust), we can choose a zref of 0 m and a density of 2670 kg/m3.

[4]:

crust_prisms = invert4geom.create_model(
    zref=0,
    density_contrast=2670,
    topography=topography,
)
crust_prisms

[4]:

<xarray.Dataset> Size: 357kB
Dimensions:                (northing: 61, easting: 81)
Coordinates:
  * northing               (northing) float64 488B 0.0 500.0 ... 2.95e+04 3e+04
  * easting                (easting) float64 648B 0.0 500.0 ... 3.95e+04 4e+04
    top                    (northing, easting) float64 40kB 0.0 0.0 ... 0.0 0.0
    bottom                 (northing, easting) float64 40kB -1.363e+04 ... -1...
Data variables:
    density                (northing, easting) int64 40kB -2670 -2670 ... -2670
    thickness              (northing, easting) float64 40kB 1.363e+04 ... 1.4...
    starting_topography    (northing, easting) float64 40kB -1.363e+04 ... -1...
    topography             (northing, easting) float64 40kB -1.363e+04 ... -1...
    mask                   (northing, easting) float64 40kB 1.0 1.0 ... 1.0 1.0
    upper_confining_layer  (northing, easting) float64 40kB nan nan ... nan nan
    lower_confining_layer  (northing, easting) float64 40kB nan nan ... nan nan
Attributes:
    zref:              0
    density_contrast:  2670
    region:            (0.0, 40000.0, 0.0, 30000.0)
    spacing:           500.0
    buffer_width:      0
    inner_region:      (0.0, 40000.0, 0.0, 30000.0)
    dataset_type:      model
    model_type:        prisms
    coord_names:       ('easting', 'northing')

For the lower prism layer (the mantle), we can choose a zref of -50 km and a density of 3300 kg/m3.

[5]:

mantle_prisms = invert4geom.create_model(
    zref=-40000,
    density_contrast=3300,
    topography=topography,
)
mantle_prisms

[5]:

<xarray.Dataset> Size: 357kB
Dimensions:                (northing: 61, easting: 81)
Coordinates:
  * northing               (northing) float64 488B 0.0 500.0 ... 2.95e+04 3e+04
  * easting                (easting) float64 648B 0.0 500.0 ... 3.95e+04 4e+04
    top                    (northing, easting) float64 40kB -1.363e+04 ... -1...
    bottom                 (northing, easting) float64 40kB -4e+04 ... -4e+04
Data variables:
    density                (northing, easting) int64 40kB 3300 3300 ... 3300
    thickness              (northing, easting) float64 40kB 2.637e+04 ... 2.5...
    starting_topography    (northing, easting) float64 40kB -1.363e+04 ... -1...
    topography             (northing, easting) float64 40kB -1.363e+04 ... -1...
    mask                   (northing, easting) float64 40kB 1.0 1.0 ... 1.0 1.0
    upper_confining_layer  (northing, easting) float64 40kB nan nan ... nan nan
    lower_confining_layer  (northing, easting) float64 40kB nan nan ... nan nan
Attributes:
    zref:              -40000
    density_contrast:  3300
    region:            (0.0, 40000.0, 0.0, 30000.0)
    spacing:           500.0
    buffer_width:      0
    inner_region:      (0.0, 40000.0, 0.0, 30000.0)
    dataset_type:      model
    model_type:        prisms
    coord_names:       ('easting', 'northing')

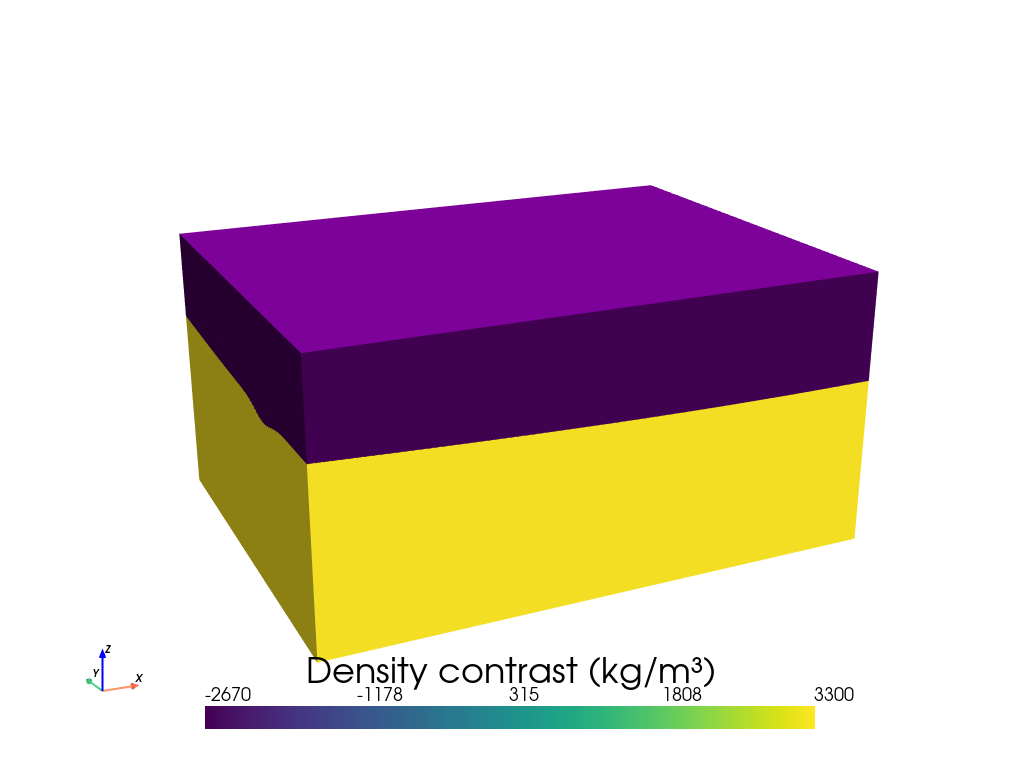

We can view this prisms, and their assigned density contrasts.

[6]:

invert4geom.plot_prism_layers(
    [crust_prisms, mantle_prisms],
    color_by="density",
    zscale=0.5,
)
../_images/tutorial_01_discretization_12_0.png

as some vertical prisms, so we can calculate the gravity effect of each prism. A simple way to do this is to This will convert each topographic grid cell into the a vertical prism. Each of these prisms is define by a top and a bottom.

Each prism is created between the grid cell’s elevation and the elevation of a chosen reference level, zref. The simple case is a zref which is lower than all points on the grid. This means each prism’s bottom will be equal to zref, and each prism’s topo is equal to the elevation of the corresponding topography grid cell.

Additionally, we need to assign density, or density contrast values, to each prism. A simple case is constant density values which represent a certain medium (i.e. rock). Below we’ll use the create_model function to create this simple prism layer.

1.4. Prisms as a density contrast#

In Invert4Geom, we use a density contrast approach, where instead of useing two layers of prisms to represent a density contrast, we use a single layer of prisms. The prisms are assigned a density contrast, instead of an absolute density. Prisms which fall above the zref are assigned a positive density contrast, and those that fall below the zref are assigned a negative density contrast.

We choose a reference level which is the mean of the moho depths.

In this example, the density contrast is between crust and mantle, so it has a value of 630 kg/m3 (3300 - 2670).

[7]:

model = invert4geom.create_model(
    zref=topography.upward.values.mean(),
    density_contrast=3300 - 2670,
    topography=topography,
)
model

[7]:

<xarray.Dataset> Size: 357kB
Dimensions:                (northing: 61, easting: 81)
Coordinates:
  * northing               (northing) float64 488B 0.0 500.0 ... 2.95e+04 3e+04
  * easting                (easting) float64 648B 0.0 500.0 ... 3.95e+04 4e+04
    top                    (northing, easting) float64 40kB -1.363e+04 ... -1...
    bottom                 (northing, easting) float64 40kB -1.509e+04 ... -1...
Data variables:
    density                (northing, easting) int64 40kB 630 630 ... 630 630
    thickness              (northing, easting) float64 40kB 1.462e+03 ... 510.0
    starting_topography    (northing, easting) float64 40kB -1.363e+04 ... -1...
    topography             (northing, easting) float64 40kB -1.363e+04 ... -1...
    mask                   (northing, easting) float64 40kB 1.0 1.0 ... 1.0 1.0
    upper_confining_layer  (northing, easting) float64 40kB nan nan ... nan nan
    lower_confining_layer  (northing, easting) float64 40kB nan nan ... nan nan
Attributes:
    zref:              -15090.63671954754
    density_contrast:  630
    region:            (0.0, 40000.0, 0.0, 30000.0)
    spacing:           500.0
    buffer_width:      0
    inner_region:      (0.0, 40000.0, 0.0, 30000.0)
    dataset_type:      model
    model_type:        prisms
    coord_names:       ('easting', 'northing')

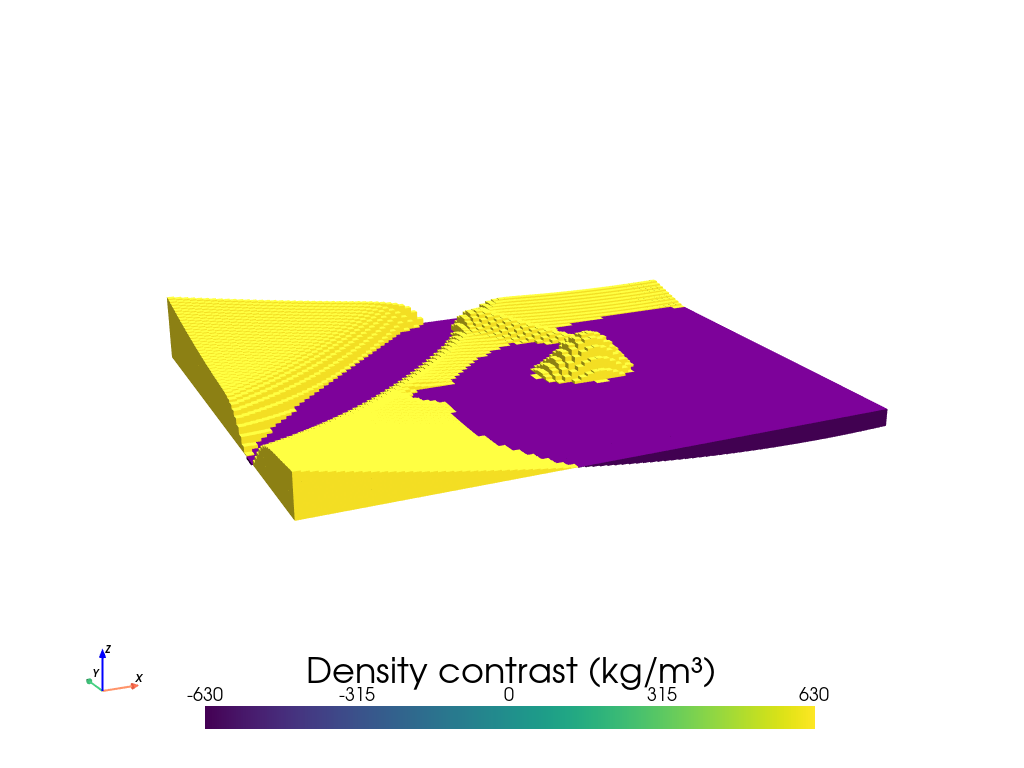

We can see that prisms above the reference level have a positive density value, and those below have a negative.

[8]:

model.inv.plot_model(
    zscale=2,
    color_by="density",
)
../_images/tutorial_01_discretization_17_0.png

Below we instead color the prisms by their thickness.

[9]:

model.inv.plot_model(
    zscale=2,
    color_by="thickness",
)
../_images/tutorial_01_discretization_19_0.png

1.4.1. Masking the model#

You can create a mask variable of the dataset which will determine which prisms can be altered during the inversion. It also reduces the computation by removing prisms at each forward calculation and creation of the Jacobian.

Prisms with a mask value of NaN are omitted from the inversion and thus held fixed to the starting model, while any other prisms are free to change.

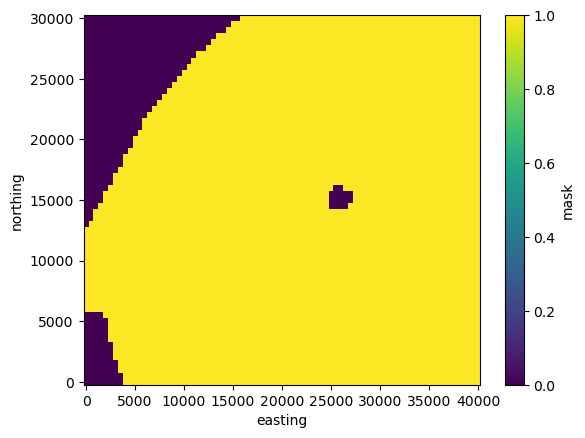

Here, we assigned the shallow portions of the region to be constrained, but you can create the mask grid however you’d like.

[10]:

topography["mask"] = xr.where(topography.upward > -14000, 0, 1)
topography.mask.plot()

[10]:

<matplotlib.collections.QuadMesh at 0x7f7ba59f2780>
../_images/tutorial_01_discretization_21_1.png
[11]:

model = invert4geom.create_model(
    zref=topography.upward.values.mean(),
    density_contrast=3300 - 2670,
    topography=topography,
)

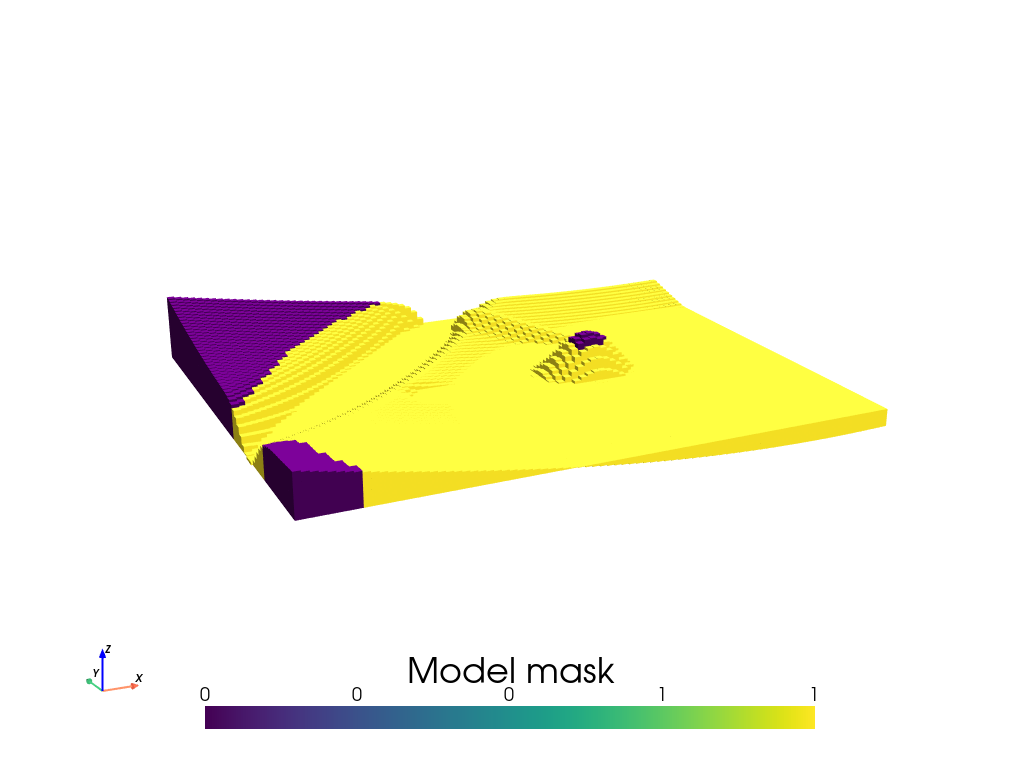

model.inv.plot_model(
    zscale=2,
    color_by="mask",
)
../_images/tutorial_01_discretization_22_0.png

See user guide variable density contrast for an example of how to incorporate spatially-variable density contrast values.
