5. Density contrast optimization

The choice of the density value used in the inversion directly affects the results and therefore needs to be carefully chosen. Choosing too high of a density contrast will result in a low amplitude topography, and too low of a value will result in a topography with high amplitude features. Similar to choosing an optimal damping value in the damping cross validation notebook, we provides some tools to best choose the density contrast value.

However, this procedure is slightly different than the damping cross validation in that we need at least 1 location where we know the true topography. These locations could be from seismic surveys, drill sites etc. These points of known topography are referred to as constraint points.

5.1. Import packages

# set EPSG for plotting functions
import os
import pathlib
import pickle

import numpy as np
import polartoolkit as ptk
import verde as vd

import invert4geom

os.environ["POLARTOOLKIT_EPSG"] = "3031"

/home/mdtanker/miniforge3/envs/invert4geom/lib/python3.12/site-packages/UQpy/__init__.py:6: UserWarning:

pkg_resources is deprecated as an API. See https://setuptools.pypa.io/en/latest/pkg_resources.html. The pkg_resources package is slated for removal as early as 2025-11-30. Refrain from using this package or pin to Setuptools<81.

5.2. Create observed gravity data

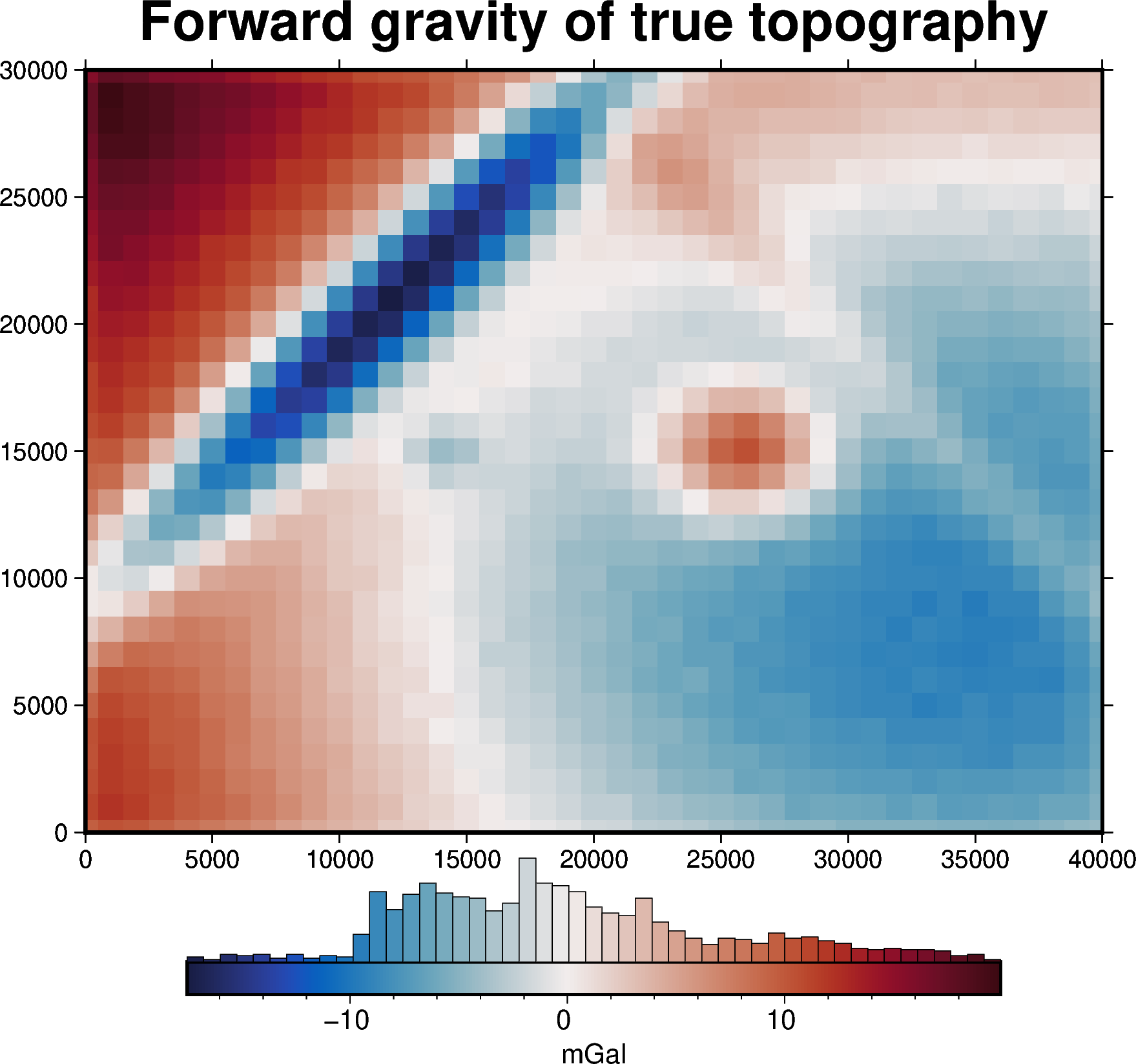

5.2.1. True topography

# the density contrast is between rock (~2670 kg/m3) and air (~1 kg/m3)
true_density_contrast = 2670 - 1
(
    true_topography,
    _,
    constraint_points,
    observed_gravity,
) = invert4geom.load_synthetic_model(
    spacing=1000,
    region=(0, 40000, 0, 30000),
    number_of_constraints=10,
    density_contrast=true_density_contrast,
    gravity_noise=0.2,
    plot_topography_diff=False,
)

true_zref = true_topography.values.mean()
print(f"mean of true topography: {true_zref} m ")

mean of true topography: 492.2704164812973 m

For simplicity here we assume that we know reference level zref of the true topography, and use this when creating our starting model.

What we don’t know in this scenario is what value to use for the density contrast. We will use an optimization of a range of density values to find the one which is optimal.

Each density contrast value will give a score, and the lowest score will show which density contrast value is optimal.

The score is calculated as the root mean square error between the points of known topography (constraints) and the inverted topography at those points.

5.3. Get a score

First we need to use the density contrast value to create the flat starting model. We will then use this in an inversion to calculate a score.

data = invert4geom.create_data(observed_gravity)

# make a flat grid at the height of the zref
grid_coords = vd.grid_coordinates(region=data.region, spacing=data.spacing)
starting_topography = vd.make_xarray_grid(
    grid_coords, data=np.ones_like(grid_coords[0]) * true_zref, data_names="upward"
)

model = invert4geom.create_model(
    zref=true_zref,
    density_contrast=2300,  # compared to true value of 2669
    topography=starting_topography,
)

data.inv.forward_gravity(
    model,
    progressbar=True,
)

In many cases, we want to remove a regional signal from the misfit to isolate the residual signal. In this simple case, we assume there is no regional misfit and set it to 0

data.inv.regional_separation(
    method="constant",
    constant=0,
)

data.inv.plot_anomalies()

makecpt [ERROR]: Option T: min >= max

# setup the inversion
inv = invert4geom.Inversion(
    data,
    model,
    solver_damping=0.1,
    # set stopping criteria
    max_iterations=30,
    l2_norm_tolerance=0.45,
    delta_l2_norm_tolerance=1.005,
)

# run inversion, calculate the score
constraints_optimization_object = inv.constraints_score(
    constraints_df=constraint_points
)
inv.constraints_best_score

np.float64(11.670434031129455)

5.4. Optimization

Lets see if we can improve the score with other values for the density contrast. For each density contrast value we need to recreate the starting prism model, forward calculate its starting gravity, and recalculate the gravity misfit, including the regional and residual components. Then we can re-run the inversion.

This is a classic optimization problem, where we vary the density contrast to find which value produces the best score. For this we use the Python package Optuna.

For each trial a .pickle file containing the inversion results will be created. Once all trials are complete, all but the best trial’s pickle files will be deleted. Additionally, another .pickle file will be created containing the Optuna study object with all the trial information and results.

By default, optimize_inversion_zref_density_contrast will use a sampler to choose density contrast values between the provided density_contrast_limits and repeat this n_trials times. This may skip large portions of the parameter space. If instead you would like to systematically test density contrast values at a constant interval, you can set grid_search to True, and this will test all damping values as defined by:

np.linspace(<<lower density contrast limit>>, <<upper density contrast limit>>, n_trials)

density_optimization_obj = inv.optimize_inversion_zref_density_contrast(
    constraints_df=constraint_points,
    density_contrast_limits=(2400, 3000),
    n_trials=10,
    regional_grav_kwargs={
        "method": "constant",
        "constant": 0,
    },
    starting_topography_kwargs={
        "method": "flat",
    },
    # grid_search=True,
    plot_scores=False,
    fname="../tmp/05_density_contrast_optimization",
    fold_progressbar=True,
)

'forward_gravity' already a variable of `grav_ds`, but is being overwritten since calculate_starting_gravity is True
'reg' already a column of `grav_df`, but is being overwritten since calculate_regional_misfit is True

# to re-load the study from the saved pickle file
with pathlib.Path("../tmp/05_density_contrast_optimization_study.pickle").open(
    "rb"
) as f:
    study = pickle.load(f)

# to re-load the inversion results from the saved pickle file
with pathlib.Path("../tmp/05_density_contrast_optimization.pickle").open("rb") as f:
    inv_results = pickle.load(f)

fig = invert4geom.plot_scores(
    study.trials_dataframe().value.values,
    study.trials_dataframe().params_density_contrast.values,
    param_name="Density contrast",
    logx=False,
    logy=False,
)

Lets see how the optimization perform by comparing the estimated best density value to the true density value used to calculate the observed gravity

print(
    f"True density contrast: {true_density_contrast}, "
    f"best density contrast from optimization: {inv_results.model.density_contrast}"
)

True density contrast: 2669, best density contrast from optimization: 2692

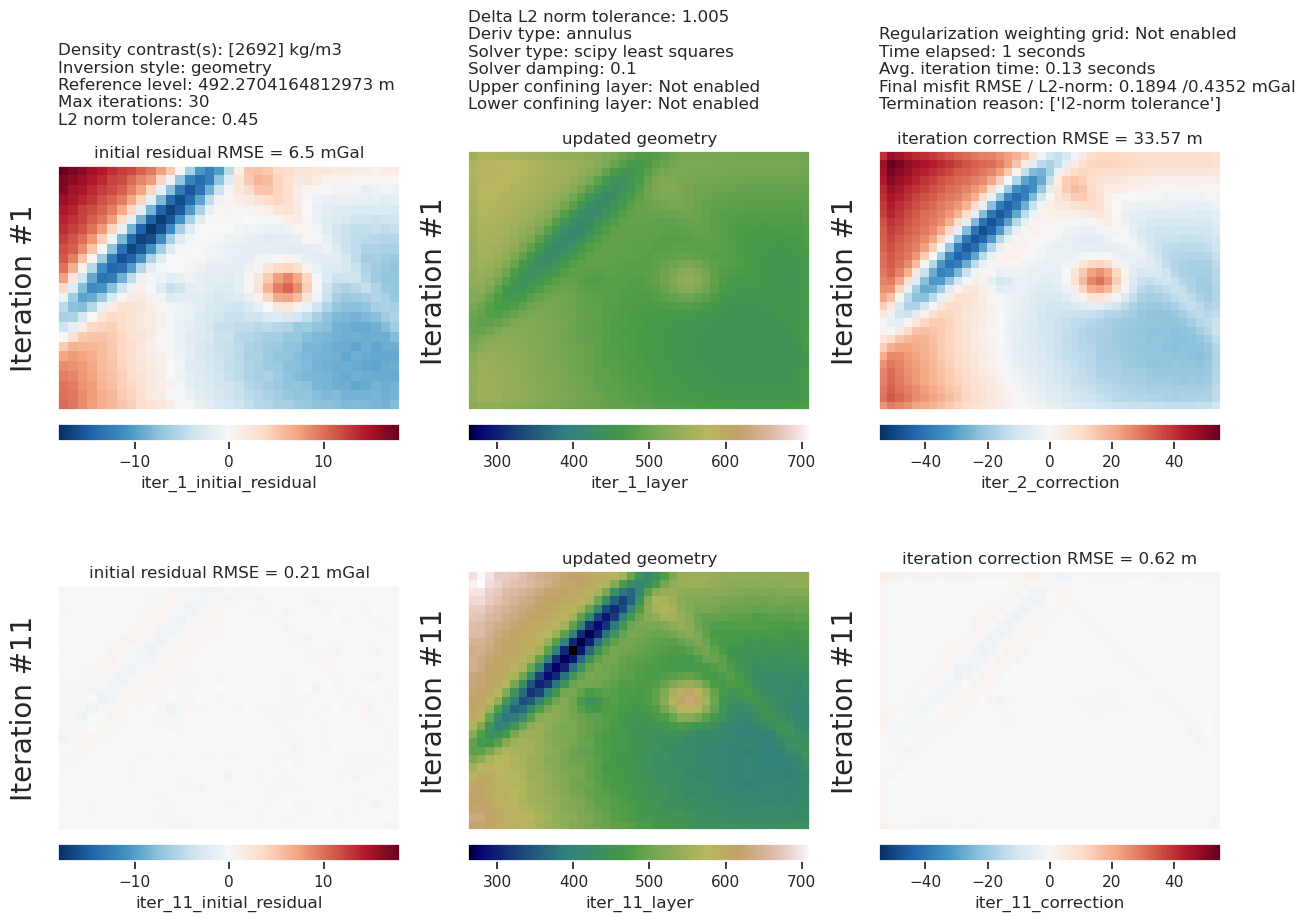

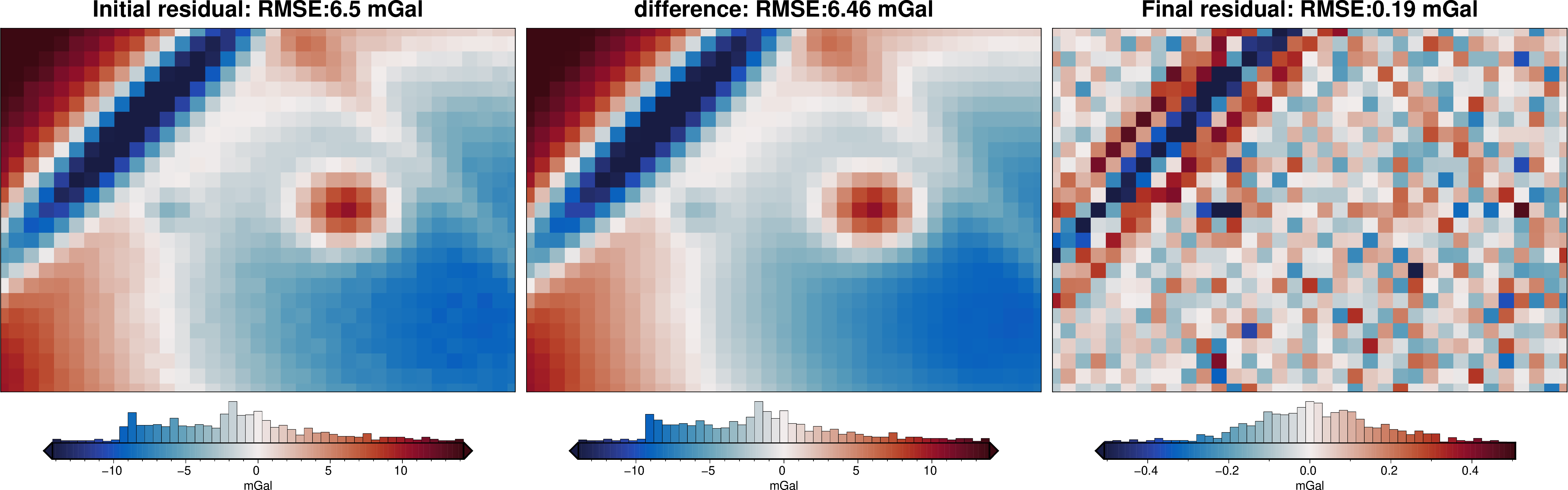

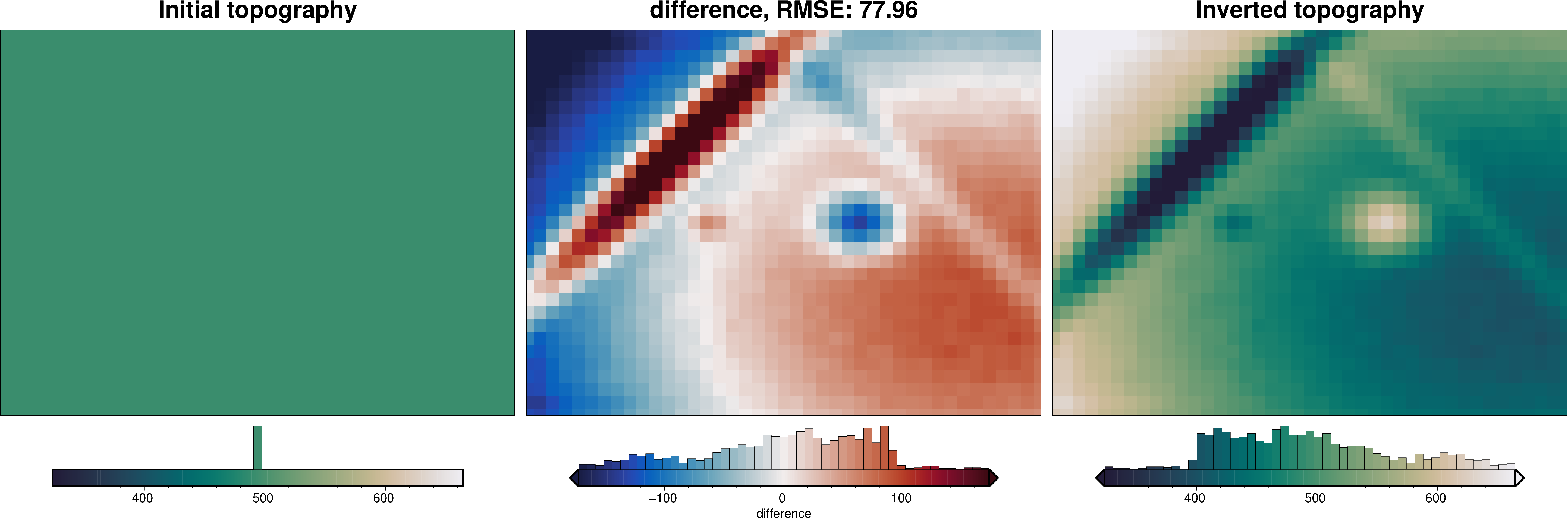

inv_results.plot_inversion_results(iters_to_plot=2)

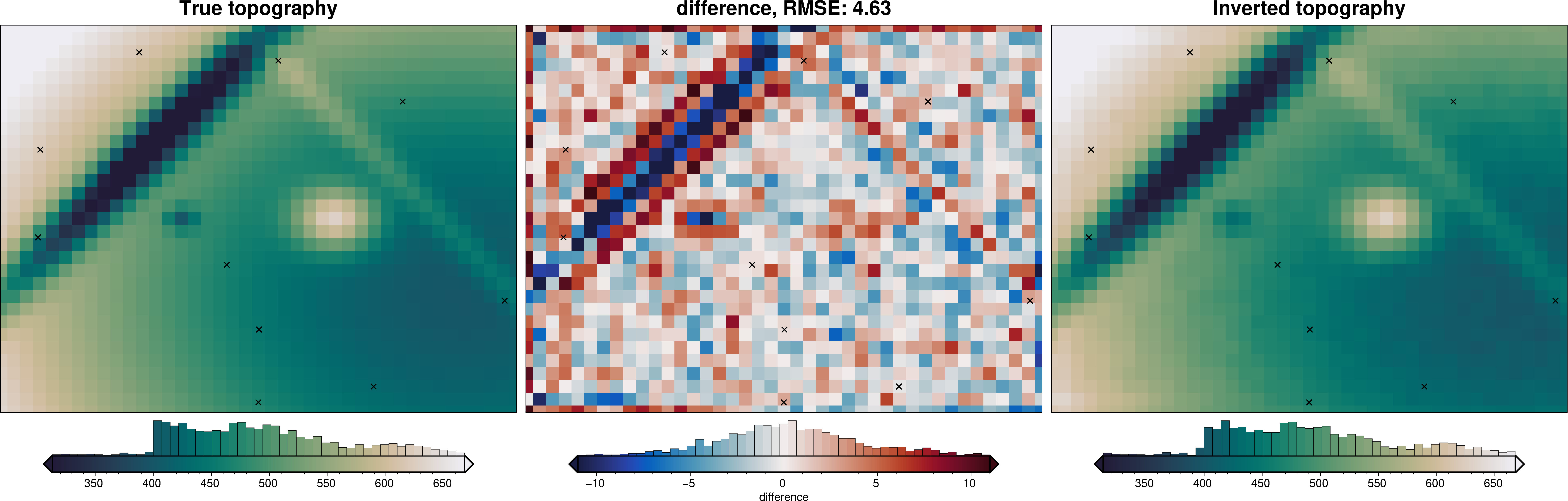

_ = ptk.grid_compare(
    true_topography,
    inv_results.model.topography,
    grid1_name="True topography",
    grid2_name="Inverted topography",
    robust=True,
    hist=True,
    inset=False,
    title="difference",
    reverse_cpt=True,
    cmap="rain",
    points=constraint_points,
    points_style="x.3c",
)

5.5. Run inversion with poor choices of density contrast

# set a density contrast that is too high
high_density_contrast = 4000

high_density_contrast_results = invert4geom.run_inversion_workflow(
    grav_ds=data,
    calculate_starting_gravity=True,
    calculate_regional_misfit=True,
    density_contrast=high_density_contrast,
    zref=true_zref,
    fname="../tmp/05_high_density_contrast",
    starting_topography_kwargs={
        "method": "flat",
        "upward": true_zref,
        "region": data.region,
        "spacing": data.spacing,
    },
    regional_grav_kwargs={
        "method": "constant",
        "constant": 0,
    },
    inversion_kwargs={
        "max_iterations": 30,
        "l2_norm_tolerance": 0.45,
        "delta_l2_norm_tolerance": 1.005,
        "solver_damping": 0.1,
    },
)

'forward_gravity' already a variable of `grav_ds`, but is being overwritten since calculate_starting_gravity is True
'reg' already a column of `grav_df`, but is being overwritten since calculate_regional_misfit is True

# set a density contrast that is too low
low_density_contrast = 1800

low_density_contrast_results = invert4geom.run_inversion_workflow(
    grav_ds=data,
    calculate_starting_gravity=True,
    calculate_regional_misfit=True,
    density_contrast=low_density_contrast,
    zref=true_zref,
    fname="../tmp/05_low_density_contrast",
    starting_topography_kwargs={
        "method": "flat",
        "upward": true_zref,
        "region": data.region,
        "spacing": data.spacing,
    },
    regional_grav_kwargs={
        "method": "constant",
        "constant": 0,
    },
    inversion_kwargs={
        "max_iterations": 30,
        "l2_norm_tolerance": 0.45,
        "delta_l2_norm_tolerance": 1.005,
        "solver_damping": 0.1,
    },
)

'forward_gravity' already a variable of `grav_ds`, but is being overwritten since calculate_starting_gravity is True
'reg' already a column of `grav_df`, but is being overwritten since calculate_regional_misfit is True

region = low_density_contrast_results.model.inner_region

mean_northing = np.mean([region[2], region[3]])
a = (region[0], mean_northing)
b = (region[1], mean_northing)

data_dict = ptk.make_data_dict(
    [
        "True",
        "Inverted w/ low density contrast",
        "Inverted w/ high density contrast",
    ],
    [
        true_topography,
        low_density_contrast_results.model.topography,
        high_density_contrast_results.model.topography,
    ],
    ["black", "red", "blue"],
    axes=[0, 0, 0],
)

fig, _ = ptk.plot_data(
    "points",
    start=a,
    stop=b,
    data_dict=data_dict,
    fig_height=5,
    data_pen_thickness=2,
    data_x_label="Easting (m)",
    data_y0_label="elevation (m)",
    start_label="",
    end_label="",
)
fig.basemap(frame="+tTrue topography and inverted topographies")
fig.show()

text [WARNING]: Skipped 1 records as blank - please check input data.
text [WARNING]: Skipped 1 records as blank - please check input data.

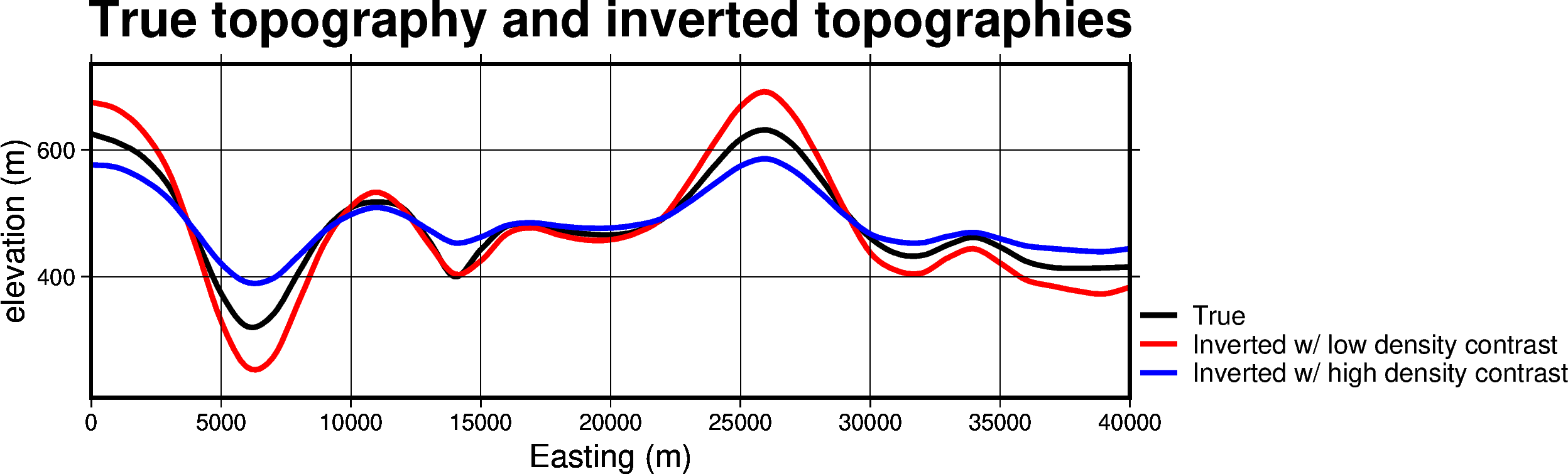

The above profile compares the true topography with the inverted topography using too high and too low of a density contrast. You can see too high of a value results in a subdued topography,while too low of a values results in a topography with too much relief.

These two inversions both minimized the gravity misfit equally well, highlighting the non-uniqueness of this style of gravity inversion.
